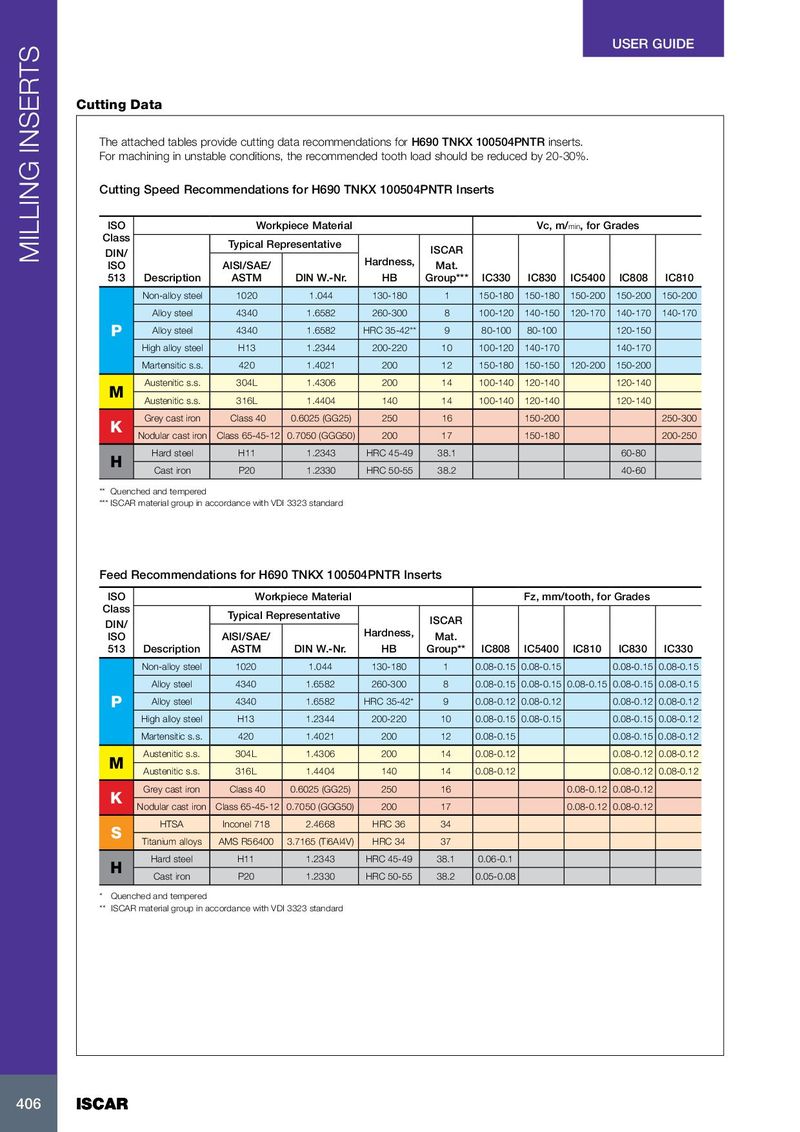

USER GUIDE Cutting Data The attached tables provide cutting data recommendations for H690 TNKX 100504PNTR inserts. For machining in unstable conditions, the recommended tooth load should be reduced by 20-30%. Cutting Speed Recommendations for H690 TNKX 100504PNTR Inserts ISO Workpiece Material Vc, m/ min , for Grades Class Typical Representative DIN/ ISCAR MILLING INSERTS ISO AISI/SAE/ Hardness, Mat. 513 Description ASTM DIN W.-Nr. HB Group*** IC330 IC830 IC5400 IC808 IC810 Non-alloy steel 1020 1.044 130-180 1 150-180 150-180 150-200 150-200 150-200 Alloy steel 4340 1.6582 260-300 8 100-120 140-150 120-170 140-170 140-170 P Alloy steel 4340 1.6582 HRC 35-42** 9 80-100 80-100 120-150 High alloy steel H13 1.2344 200-220 10 100-120 140-170 140-170 Martensitic s.s. 420 1.4021 200 12 150-180 150-150 120-200 150-200 Austenitic s.s. 304L 1.4306 200 14 100-140 120-140 120-140 M Austenitic s.s. 316L 1.4404 140 14 100-140 120-140 120-140 Grey cast iron Class 40 0.6025 (GG25) 250 16 150-200 250-300 K Nodular cast iron Class 65-45-12 0.7050 (GGG50) 200 17 150-180 200-250 Hard steel H11 1.2343 HRC 45-49 38.1 60-80 H Cast iron P20 1.2330 HRC 50-55 38.2 40-60 ** Quenched and tempered *** ISCAR material group in accordance with VDI 3323 standard Feed Recommendations for H690 TNKX 100504PNTR Inserts ISO Workpiece Material Fz, mm/tooth, for Grades Class Typical Representative DIN/ ISCAR ISO AISI/SAE/ Hardness, Mat. 513 Description ASTM DIN W.-Nr. HB Group** IC808 IC5400 IC810 IC830 IC330 Non-alloy steel 1020 1.044 130-180 1 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 Alloy steel 4340 1.6582 260-300 8 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.15 P Alloy steel 4340 1.6582 HRC 35-42* 9 0.08-0.12 0.08-0.12 0.08-0.12 0.08-0.12 High alloy steel H13 1.2344 200-220 10 0.08-0.15 0.08-0.15 0.08-0.15 0.08-0.12 Martensitic s.s. 420 1.4021 200 12 0.08-0.15 0.08-0.15 0.08-0.12 Austenitic s.s. 304L 1.4306 200 14 0.08-0.12 0.08-0.12 0.08-0.12 M Austenitic s.s. 316L 1.4404 140 14 0.08-0.12 0.08-0.12 0.08-0.12 Grey cast iron Class 40 0.6025 (GG25) 250 16 0.08-0.12 0.08-0.12 K Nodular cast iron Class 65-45-12 0.7050 (GGG50) 200 17 0.08-0.12 0.08-0.12 HTSA Inconel 718 2.4668 HRC 36 34 S Titanium alloys AMS R56400 3.7165 (Ti6Al4V) HRC 34 37 Hard steel H11 1.2343 HRC 45-49 38.1 0.06-0.1 H Cast iron P20 1.2330 HRC 50-55 38.2 0.05-0.08 * Quenched and tempered ** ISCAR material group in accordance with VDI 3323 standard 406 406 ISCAR ISCAR
