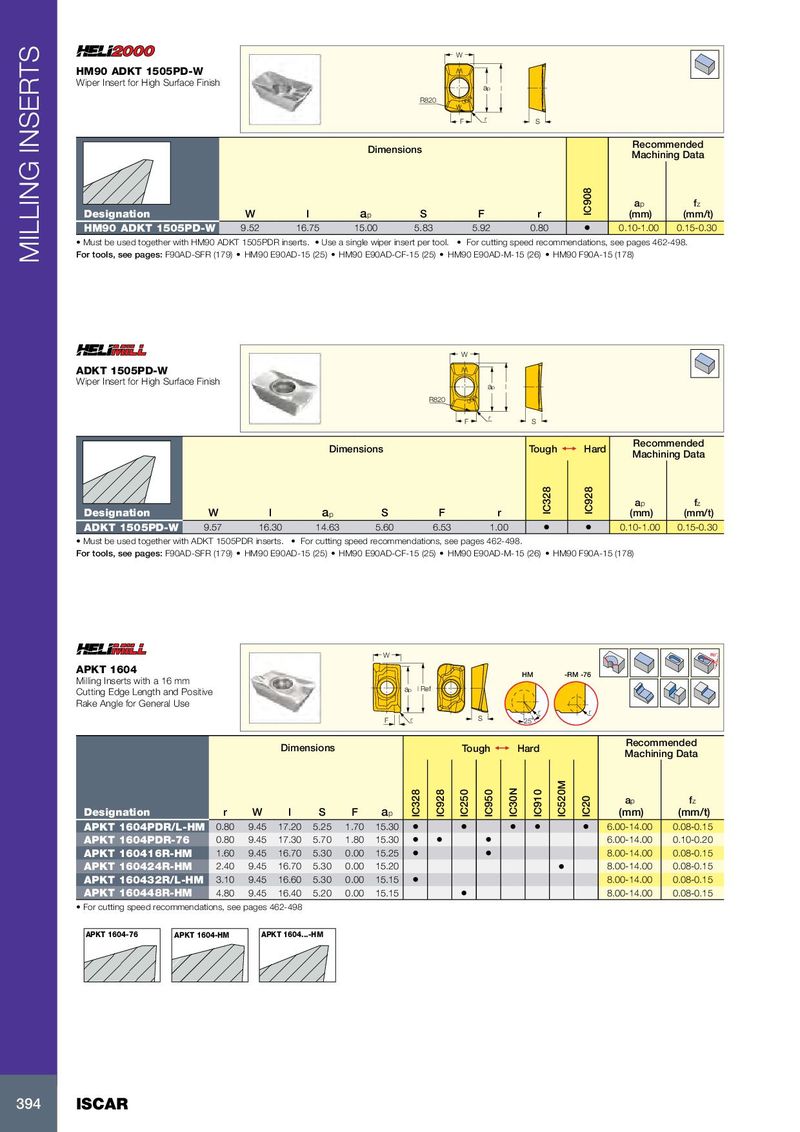

W W HM90 ADKT 1505PD-W Wiper Insert for High Surface Finish ap l M90 R820 W F r S Recommended Dimensions Machining Data a p f z Designation W l a p S F r IC908 (mm) (mm/t) HM90 ADKT 1505PD-W 9.52 16.75 15.00 5.83 5.92 0.80 • 0.10-1.00 0.15-0.30 • Must be used together with HM90 ADKT 1505PDR inserts. • Use a single wiper insert per tool. • For cutting speed recommendations, see pages 462-498. For tools, see pages: F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) MILLING INSERTS W W ADKT 1505PD-W Wiper Insert for High Surface Finish ap l M90 R820 F r S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W l a p S F r IC328 IC928 (mm) (mm/t) ADKT 1505PD-W 9.57 16.30 14.63 5.60 6.53 1.00 • • 0.10-1.00 0.15-0.30 • Must be used together with ADKT 1505PDR inserts. • For cutting speed recommendations, see pages 462-498. For tools, see pages: F90AD-SFR (179) • HM90 E90AD-15 (25) • HM90 E90AD-CF-15 (25) • HM90 E90AD-M-15 (26) • HM90 F90A-15 (178) W Rd° APKT 1604 HM -RM -76 Milling Inserts with a 16 mm Cutting Edge Length and Positive ap l Ref Rake Angle for General Use r r F r S 25˚ Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation r W l S F a p IC328 IC928 IC250 IC950 IC30N IC910 IC520M IC20 (mm) (mm/t) APKT 1604PDR/L-HM 0.80 9.45 17.20 5.25 1.70 15.30 • • • • • 6.00-14.00 0.08-0.15 APKT 1604PDR-76 0.80 9.45 17.30 5.70 1.80 15.30 • • • 6.00-14.00 0.10-0.20 APKT 160416R-HM 1.60 9.45 16.70 5.30 0.00 15.25 • • 8.00-14.00 0.08-0.15 APKT 160424R-HM 2.40 9.45 16.70 5.30 0.00 15.20 • 8.00-14.00 0.08-0.15 APKT 160432R/L-HM 3.10 9.45 16.60 5.30 0.00 15.15 • 8.00-14.00 0.08-0.15 APKT 160448R-HM 4.80 9.45 16.40 5.20 0.00 15.15 • 8.00-14.00 0.08-0.15 • For cutting speed recommendations, see pages 462-498 APKT 1604-76 APKT 1604-HM APKT 1604...-HM 394 ISCAR
