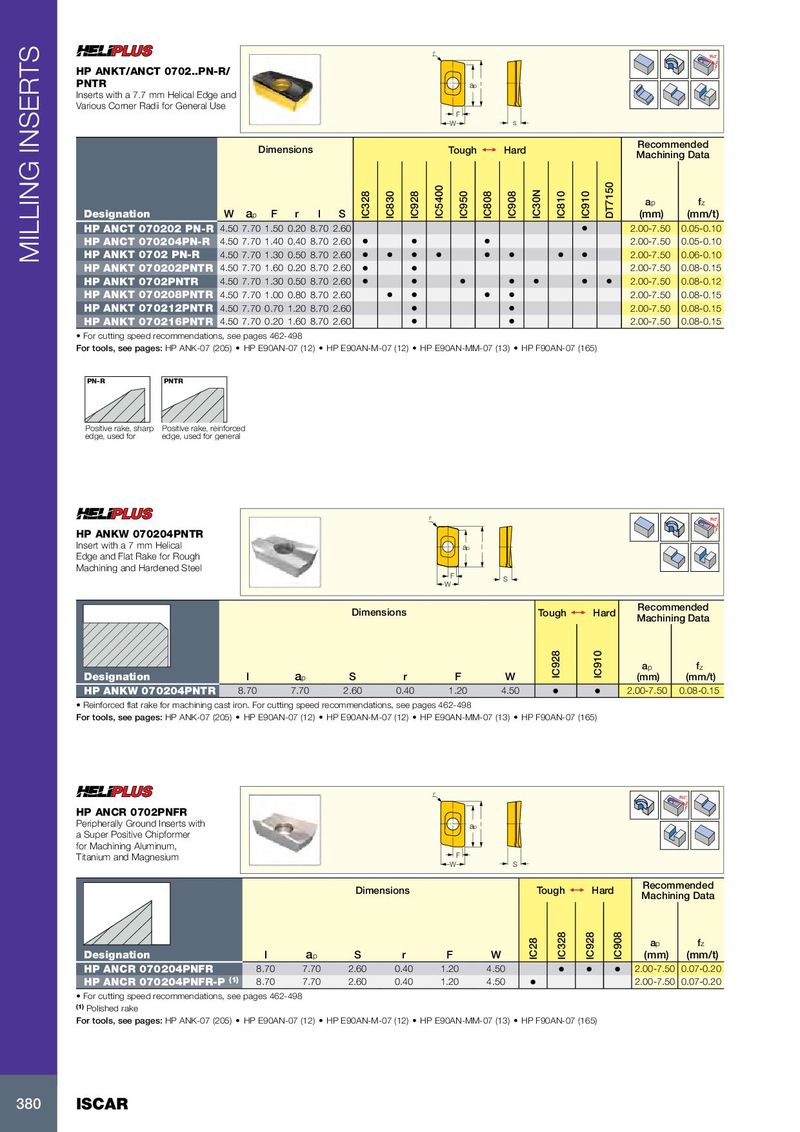

r Rd° HP ANKT/ANCT 0702..PN-R/ PNTR ap l Inserts with a 7.7 mm Helical Edge and Various Corner Radii for General Use F W S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation W a p F r l S IC328 IC830 IC928 IC5400 IC950 IC808 IC908 IC30N IC810 IC910 DT7150 (mm) (mm/t) HP ANCT 070202 PN-R 4.50 7.70 1.50 0.20 8.70 2.60 • 2.00-7.50 0.05-0.10 HP ANCT 070204PN-R 4.50 7.70 1.40 0.40 8.70 2.60 • • • 2.00-7.50 0.05-0.10 HP ANKT 0702 PN-R 4.50 7.70 1.30 0.50 8.70 2.60 MILLING INSERTS • • • • • • • • 2.00-7.50 0.06-0.10 HP ANKT 070202PNTR 4.50 7.70 1.60 0.20 8.70 2.60 • • 2.00-7.50 0.08-0.15 HP ANKT 0702PNTR 4.50 7.70 1.30 0.50 8.70 2.60 • • • • • • • 2.00-7.50 0.08-0.12 HP ANKT 070208PNTR 4.50 7.70 1.00 0.80 8.70 2.60 • • • • 2.00-7.50 0.08-0.15 HP ANKT 070212PNTR 4.50 7.70 0.70 1.20 8.70 2.60 • • 2.00-7.50 0.08-0.15 HP ANKT 070216PNTR 4.50 7.70 0.20 1.60 8.70 2.60 • • 2.00-7.50 0.08-0.15 • For cutting speed recommendations, see pages 462-498 For tools, see pages: HP ANK-07 (205) • HP E90AN-07 (12) • HP E90AN-M-07 (12) • HP E90AN-MM-07 (13) • HP F90AN-07 (165) PN-R PNTR Positive rake, sharp Positive rake, reinforced edge, used for edge, used for general general applications applications r Rd° HP ANKW 070204PNTR Insert with a 7 mm Helical ap l Edge and Flat Rake for Rough Machining and Hardened Steel F S W Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l a p S r F W IC928 IC910 (mm) (mm/t) HP ANKW 070204PNTR 8.70 7.70 2.60 0.40 1.20 4.50 • • 2.00-7.50 0.08-0.15 • Reinforced flat rake for machining cast iron. For cutting speed recommendations, see pages 462-498 For tools, see pages: HP ANK-07 (205) • HP E90AN-07 (12) • HP E90AN-M-07 (12) • HP E90AN-MM-07 (13) • HP F90AN-07 (165) r Rd° HP ANCR 0702PNFR Peripherally Ground Inserts with ap l a Super Positive Chipformer for Machining Aluminum, Titanium and Magnesium F W S Recommended Dimensions Tough 1  Hard Machining Data a p f z Designation l a p S r F W IC28 IC328 IC928 IC908 (mm) (mm/t) HP ANCR 070204PNFR 8.70 7.70 2.60 0.40 1.20 4.50 • • • 2.00-7.50 0.07-0.20 HP ANCR 070204PNFR-P (1) 8.70 7.70 2.60 0.40 1.20 4.50 • 2.00-7.50 0.07-0.20 • For cutting speed recommendations, see pages 462-498 (1) Polished rake For tools, see pages: HP ANK-07 (205) • HP E90AN-07 (12) • HP E90AN-M-07 (12) • HP E90AN-MM-07 (13) • HP F90AN-07 (165) 380 ISCAR
