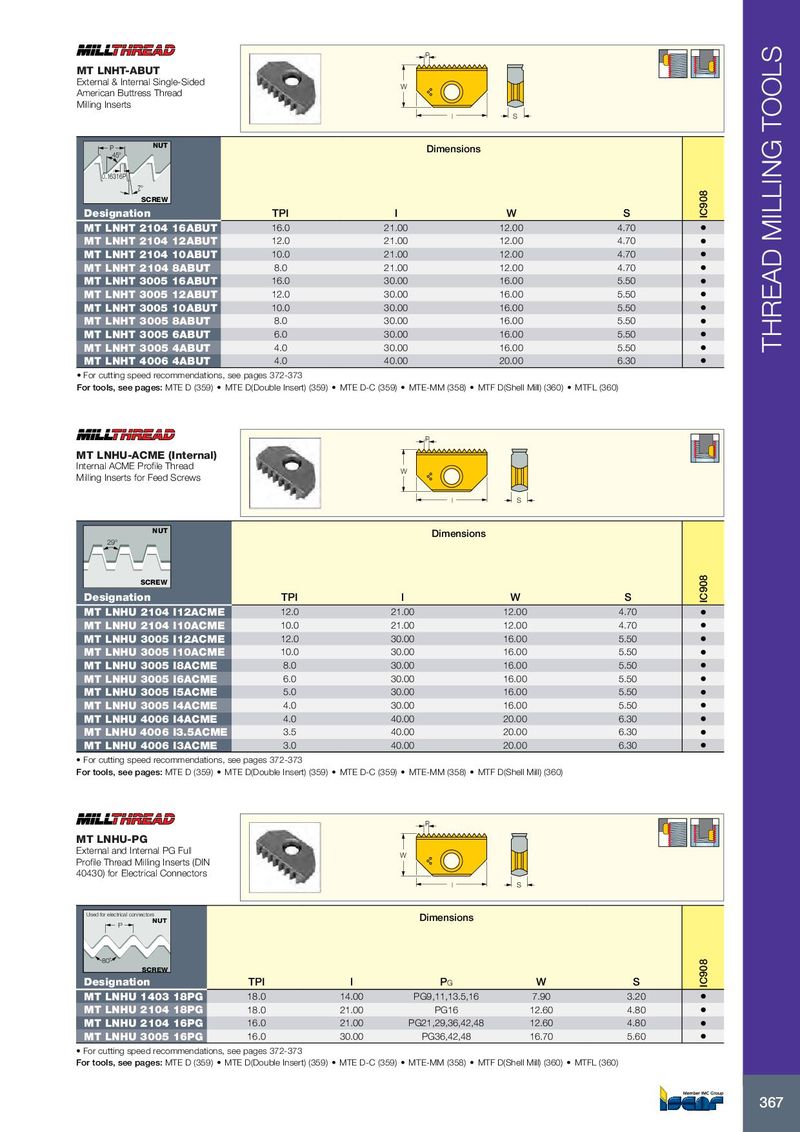

P MT LNHT-ABUT External & Internal Single-Sided W American Buttress Thread Milling Inserts l S P NUT Dimensions 45° 0.16316P 7° SCREW Designation TPI l W S IC908 MT LNHT 2104 16ABUT 16.0 21.00 12.00 4.70 • MT LNHT 2104 12ABUT 12.0 21.00 12.00 4.70 • MT LNHT 2104 10ABUT 10.0 21.00 12.00 4.70 • MT LNHT 2104 8ABUT 8.0 21.00 12.00 4.70 • MT LNHT 3005 16ABUT 16.0 30.00 16.00 5.50 • MT LNHT 3005 12ABUT 12.0 30.00 16.00 5.50 • MT LNHT 3005 10ABUT 10.0 30.00 16.00 5.50 • MT LNHT 3005 8ABUT 8.0 30.00 16.00 5.50 • MT LNHT 3005 6ABUT 6.0 30.00 16.00 5.50 • MT LNHT 3005 4ABUT 4.0 30.00 16.00 5.50 • THREAD MILLING TOOLS MT LNHT 4006 4ABUT 4.0 40.00 20.00 6.30 • • For cutting speed recommendations, see pages 372-373 For tools, see pages: MTE D (359) • MTE D(Double Insert) (359) • MTE D-C (359) • MTE-MM (358) • MTF D(Shell Mill) (360) • MTFL (360) P MT LNHU-ACME (Internal) Internal ACME Profile Thread W Milling Inserts for Feed Screws l S NUT Dimensions 29° SCREW Designation TPI l W S IC908 MT LNHU 2104 I12ACME 12.0 21.00 12.00 4.70 • MT LNHU 2104 I10ACME 10.0 21.00 12.00 4.70 • MT LNHU 3005 I12ACME 12.0 30.00 16.00 5.50 • MT LNHU 3005 I10ACME 10.0 30.00 16.00 5.50 • MT LNHU 3005 I8ACME 8.0 30.00 16.00 5.50 • MT LNHU 3005 I6ACME 6.0 30.00 16.00 5.50 • MT LNHU 3005 I5ACME 5.0 30.00 16.00 5.50 • MT LNHU 3005 I4ACME 4.0 30.00 16.00 5.50 • MT LNHU 4006 I4ACME 4.0 40.00 20.00 6.30 • MT LNHU 4006 I3.5ACME 3.5 40.00 20.00 6.30 • MT LNHU 4006 I3ACME 3.0 40.00 20.00 6.30 • • For cutting speed recommendations, see pages 372-373 For tools, see pages: MTE D (359) • MTE D(Double Insert) (359) • MTE D-C (359) • MTE-MM (358) • MTF D(Shell Mill) (360) P MT LNHU-PG External and Internal PG Full W Profile Thread Milling Inserts (DIN 40430) for Electrical Connectors l S Used for electrical connectors NUT Dimensions P 80˚ SCREW Designation TPI l P G W S IC908 MT LNHU 1403 18PG 18.0 14.00 PG9,11,13.5,16 7.90 3.20 • MT LNHU 2104 18PG 18.0 21.00 PG16 12.60 4.80 • MT LNHU 2104 16PG 16.0 21.00 PG21,29,36,42,48 12.60 4.80 • MT LNHU 3005 16PG 16.0 30.00 PG36,42,48 16.70 5.60 • • For cutting speed recommendations, see pages 372-373 For tools, see pages: MTE D (359) • MTE D(Double Insert) (359) • MTE D-C (359) • MTE-MM (358) • MTF D(Shell Mill) (360) • MTFL (360) 367
