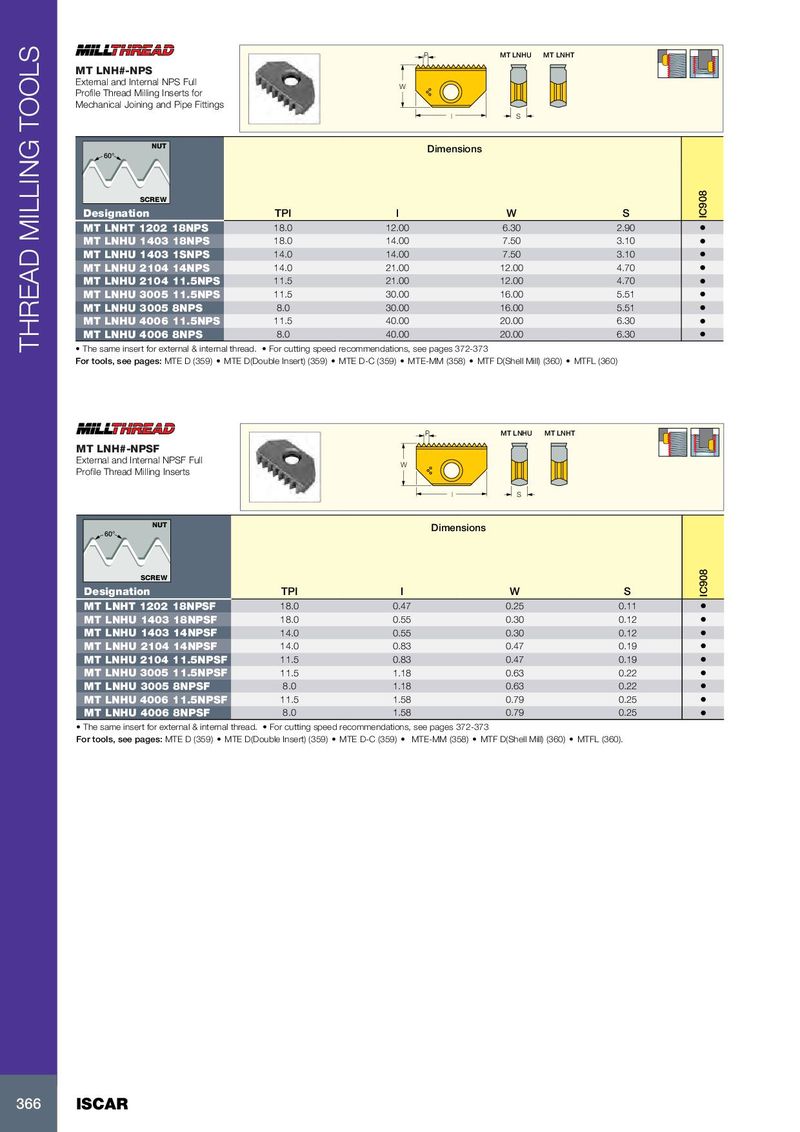

Каталог Iscar вращающийся инструмент 2017 - страница 370

P MT LNHU MT LNHT MT LNH#-NPS External and Internal NPS Full W Profile Thread Milling Inserts for Mechanical Joining and Pipe Fittings l S NUT Dimensions 60° SCREW Designation TPI l W S IC908 MT LNHT 1202 18NPS 18.0 12.00 6.30 2.90 • MT LNHU 1403 18NPS 18.0 14.00 7.50 3.10 • MT LNHU 1403 1SNPS 14.0 14.00 7.50 3.10 • MT LNHU 2104 14NPS 14.0 21.00 12.00 4.70 • MT LNHU 2104 11.5NPS 11.5 21.00 12.00 4.70 • MT LNHU 3005 11.5NPS 11.5 30.00 16.00 5.51 • MT LNHU 3005 8NPS 8.0 30.00 16.00 5.51 • MT LNHU 4006 11.5NPS 11.5 40.00 20.00 6.30 • MT LNHU 4006 8NPS 8.0 40.00 20.00 6.30 • THREAD MILLING TOOLS • The same insert for external & internal thread. • For cutting speed recommendations, see pages 372-373 For tools, see pages: MTE D (359) • MTE D(Double Insert) (359) • MTE D-C (359) • MTE-MM (358) • MTF D(Shell Mill) (360) • MTFL (360) P MT LNHU MT LNHT MT LNH#-NPSF External and Internal NPSF Full W Profile Thread Milling Inserts l S NUT Dimensions 60° SCREW Designation TPI l W S IC908 MT LNHT 1202 18NPSF 18.0 0.47 0.25 0.11 • MT LNHU 1403 18NPSF 18.0 0.55 0.30 0.12 • MT LNHU 1403 14NPSF 14.0 0.55 0.30 0.12 • MT LNHU 2104 14NPSF 14.0 0.83 0.47 0.19 • MT LNHU 2104 11.5NPSF 11.5 0.83 0.47 0.19 • MT LNHU 3005 11.5NPSF 11.5 1.18 0.63 0.22 • MT LNHU 3005 8NPSF 8.0 1.18 0.63 0.22 • MT LNHU 4006 11.5NPSF 11.5 1.58 0.79 0.25 • MT LNHU 4006 8NPSF 8.0 1.58 0.79 0.25 • • The same insert for external & internal thread. • For cutting speed recommendations, see pages 372-373 For tools, see pages: MTE D (359) • MTE D(Double Insert) (359) • MTE D-C (359) • MTE-MM (358) • MTF D(Shell Mill) (360) • MTFL (360). 366 ISCAR
