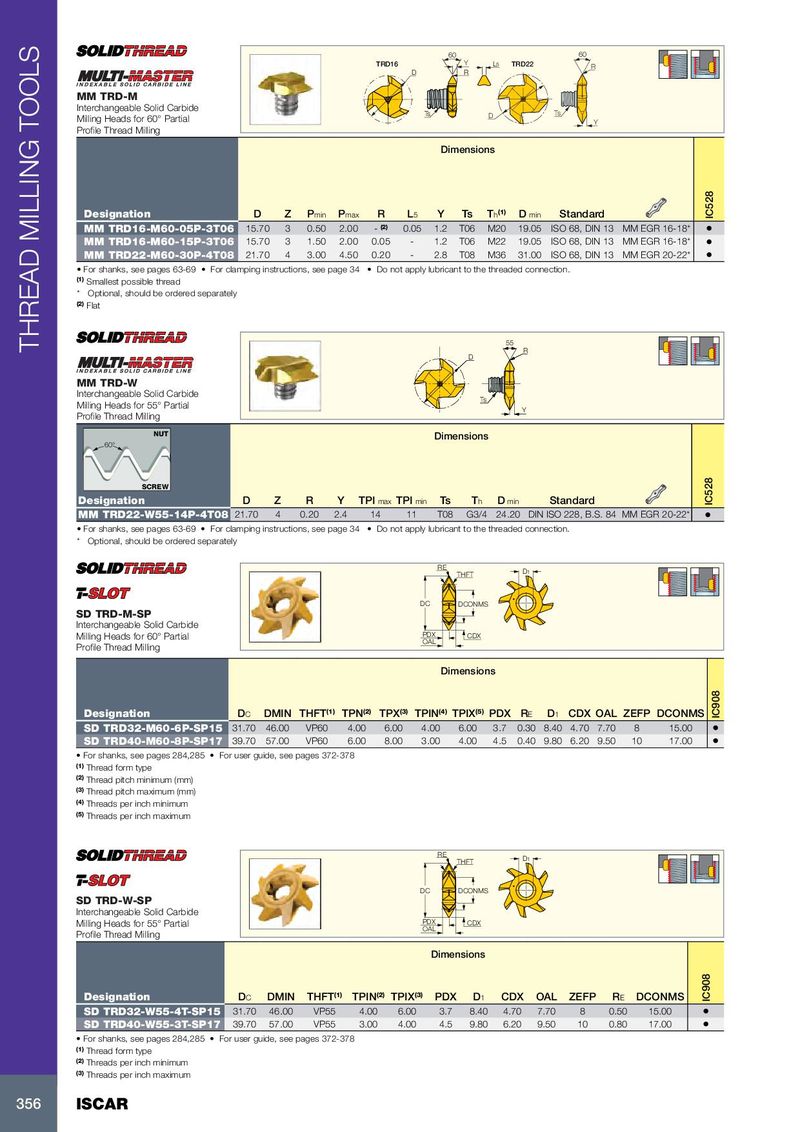

60 60 TRD16 Y L5 TRD22 R D R MM TRD-M Interchangeable Solid Carbide Ts Milling Heads for 60° Partial D Ts Y Profile Thread Milling Dimensions Designation D Z P min P max R L 5 Y Ts T h (1) D min Standard IC528 MM TRD16-M60-05P-3T06 15.70 3 0.50 2.00 - (2) 0.05 1.2 T06 M20 19.05 ISO 68, DIN 13 MM EGR 16-18* • MM TRD16-M60-15P-3T06 15.70 3 1.50 2.00 0.05 - 1.2 T06 M22 19.05 ISO 68, DIN 13 MM EGR 16-18* • MM TRD22-M60-30P-4T08 21.70 4 3.00 4.50 0.20 - 2.8 T08 M36 31.00 ISO 68, DIN 13 MM EGR 20-22* • • For shanks, see pages 63-69 • For clamping instructions, see page 34 • Do not apply lubricant to the threaded connection. (1) Smallest possible thread * Optional, should be ordered separately (2) Flat 55 THREAD MILLING TOOLS R D MM TRD-W Interchangeable Solid Carbide Ts Milling Heads for 55° Partial Y Profile Thread Milling NUT Dimensions 60° SCREW Designation D Z R Y TPI max TPI min Ts T h D min Standard IC528 MM TRD22-W55-14P-4T08 21.70 4 0.20 2.4 14 11 T08 G3/4 24.20 DIN ISO 228, B.S. 84 MM EGR 20-22* • • For shanks, see pages 63-69 • For clamping instructions, see page 34 • Do not apply lubricant to the threaded connection. * Optional, should be ordered separately RE THFT D1 DC DCONMS SD TRD-M-SP Interchangeable Solid Carbide Milling Heads for 60° Partial PDX CDX OAL Profile Thread Milling Dimensions Designation D C DMIN THFT (1) TPN (2) TPX (3) TPIN (4) TPIX (5) PDX R E D 1 CDX OAL ZEFP DCONMS IC908 SD TRD32-M60-6P-SP15 31.70 46.00 VP60 4.00 6.00 4.00 6.00 3.7 0.30 8.40 4.70 7.70 8 15.00 • SD TRD40-M60-8P-SP17 39.70 57.00 VP60 6.00 8.00 3.00 4.00 4.5 0.40 9.80 6.20 9.50 10 17.00 • • For shanks, see pages 284,285 • For user guide, see pages 372-378 (1) Thread form type (2) Thread pitch minimum (mm) (3) Thread pitch maximum (mm) (4) Threads per inch minimum (5) Threads per inch maximum RE THFT D1 DC DCONMS SD TRD-W-SP Interchangeable Solid Carbide Milling Heads for 55° Partial PDX CDX OAL Profile Thread Milling Dimensions Designation D C DMIN THFT (1) TPIN (2) TPIX (3) PDX D 1 CDX OAL ZEFP R E DCONMS IC908 SD TRD32-W55-4T-SP15 31.70 46.00 VP55 4.00 6.00 3.7 8.40 4.70 7.70 8 0.50 15.00 • SD TRD40-W55-3T-SP17 39.70 57.00 VP55 3.00 4.00 4.5 9.80 6.20 9.50 10 0.80 17.00 • • For shanks, see pages 284,285 • For user guide, see pages 372-378 (1) Thread form type (2) Threads per inch minimum (3) Threads per inch maximum 356 ISCAR
