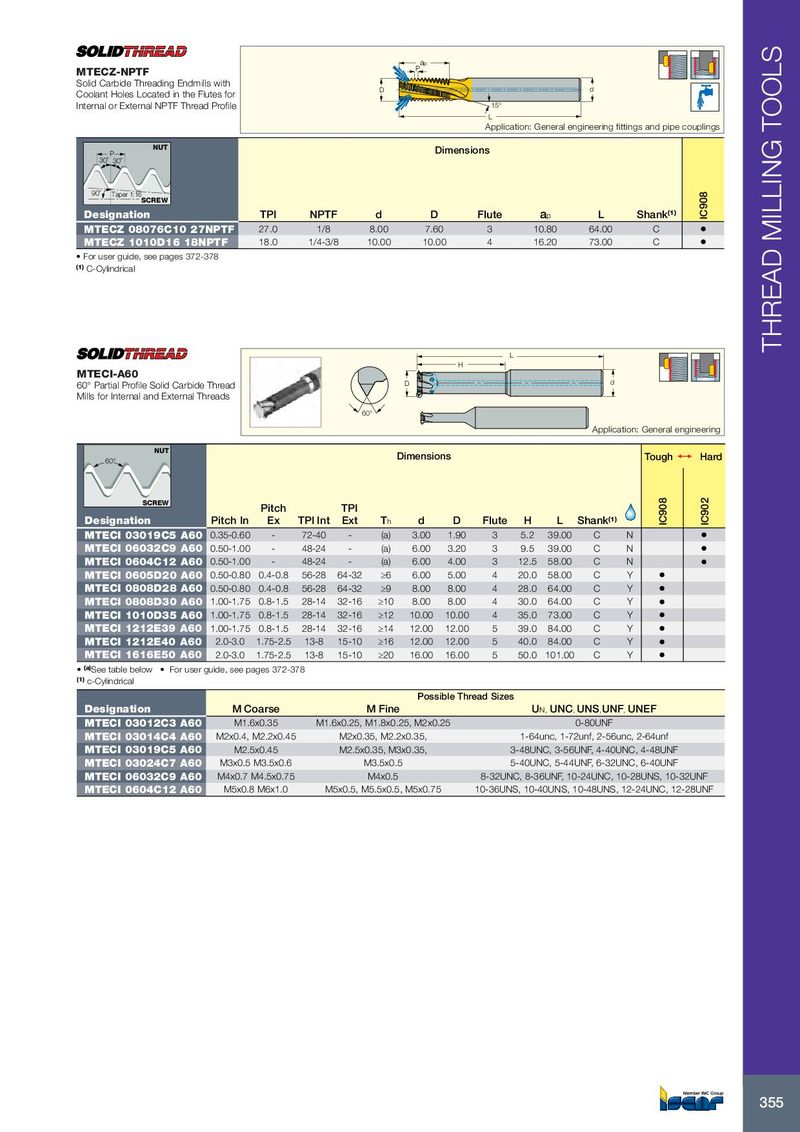

ap P MTECZ-NPTF Solid Carbide Threading Endmills with D d Coolant Holes Located in the Flutes for Internal or External NPTF Thread Profile 15° L Application: General engineering fittings and pipe couplings NUT P Dimensions 30˚ 30˚ 90˚ Taper 1:16 SCREW Designation TPI NPTF d D Flute a p L Shank (1) IC908 MTECZ 08076C10 27NPTF 27.0 1/8 8.00 7.60 3 10.80 64.00 C • MTECZ 1010D16 18NPTF 18.0 1/4-3/8 10.00 10.00 4 16.20 73.00 C • • For user guide, see pages 372-378 (1) C-Cylindrical THREAD MILLING TOOLS L H MTECI-A60 60° Partial Profile Solid Carbide Thread D d Mills for Internal and External Threads 60° Application: General engineering NUT 60° Dimensions Tough 1  Hard SCREW Pitch TPI Designation Pitch In Ex TPI Int Ext T h d D Flute H L Shank (1) IC908 IC902 MTECI 03019C5 A60 0.35-0.60 - 72-40 - (a) 3.00 1.90 3 5.2 39.00 C N • MTECI 06032C9 A60 0.50-1.00 - 48-24 - (a) 6.00 3.20 3 9.5 39.00 C N • MTECI 0604C12 A60 0.50-1.00 - 48-24 - (a) 6.00 4.00 3 12.5 58.00 C N • MTECI 0605D20 A60 0.50-0.80 0.4-0.8 56-28 64-32 ≥6 6.00 5.00 4 20.0 58.00 C Y • MTECI 0808D28 A60 0.50-0.80 0.4-0.8 56-28 64-32 ≥9 8.00 8.00 4 28.0 64.00 C Y • MTECI 0808D30 A60 1.00-1.75 0.8-1.5 28-14 32-16 ≥10 8.00 8.00 4 30.0 64.00 C Y • MTECI 1010D35 A60 1.00-1.75 0.8-1.5 28-14 32-16 ≥12 10.00 10.00 4 35.0 73.00 C Y • MTECI 1212E39 A60 1.00-1.75 0.8-1.5 28-14 32-16 ≥14 12.00 12.00 5 39.0 84.00 C Y • MTECI 1212E40 A60 2.0-3.0 1.75-2.5 13-8 15-10 ≥16 12.00 12.00 5 40.0 84.00 C Y • MTECI 1616E50 A60 2.0-3.0 1.75-2.5 13-8 15-10 ≥20 16.00 16.00 5 50.0 101.00 C Y • • (a) See table below • For user guide, see pages 372-378 (1) c-Cylindrical Possible Thread Sizes Designation M Coarse M Fine U N, UNC , UNS , UNF , UNEF MTECI 03012C3 A60 M1.6x0.35 M1.6x0.25, M1.8x0.25, M2x0.25 0-80UNF MTECI 03014C4 A60 M2x0.4, M2.2x0.45 M2x0.35, M2.2x0.35, 1-64unc, 1-72unf, 2-56unc, 2-64unf MTECI 03019C5 A60 M2.5x0.45 M2.5x0.35, M3x0.35, 3-48UNC, 3-56UNF, 4-40UNC, 4-48UNF MTECI 03024C7 A60 M3x0.5 M3.5x0.6 M3.5x0.5 5-40UNC, 5-44UNF, 6-32UNC, 6-40UNF MTECI 06032C9 A60 M4x0.7 M4.5x0.75 M4x0.5 8-32UNC, 8-36UNF, 10-24UNC, 10-28UNS, 10-32UNF MTECI 0604C12 A60 M5x0.8 M6x1.0 M5x0.5, M5.5x0.5, M5x0.75 10-36UNS, 10-40UNS, 10-48UNS, 12-24UNC, 12-28UNF 355
