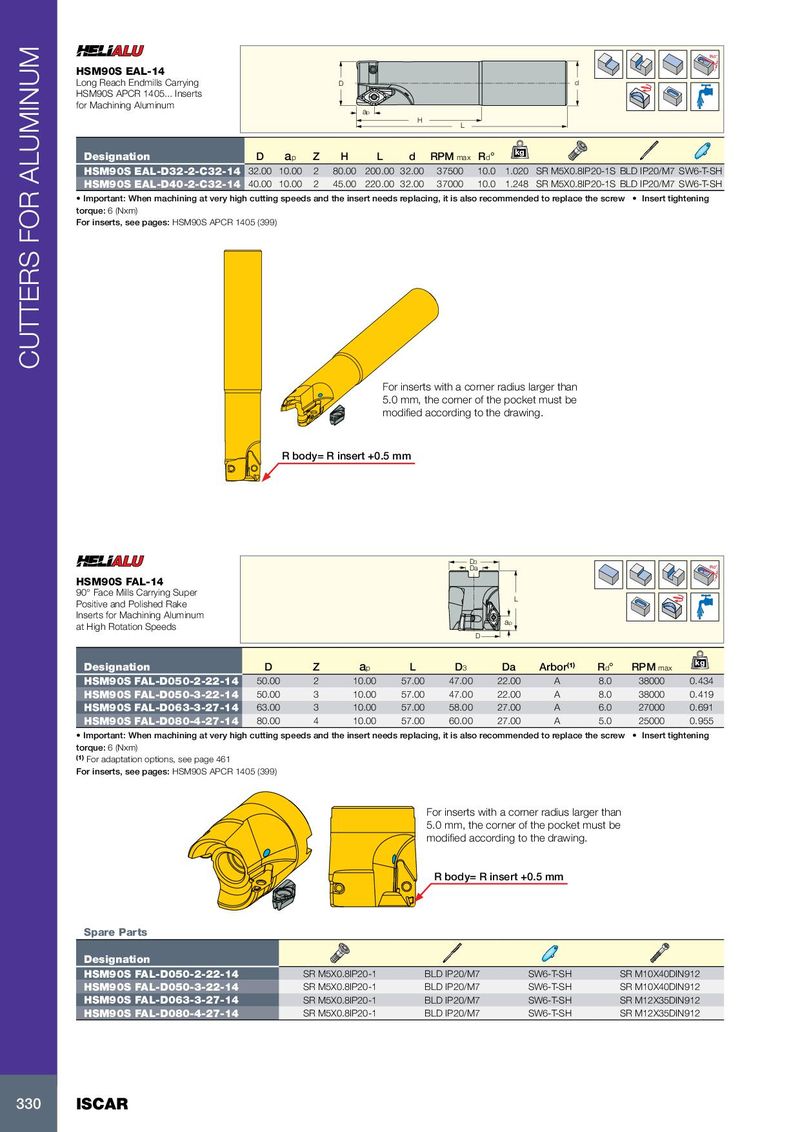

Rd° HSM90S EAL-14 Long Reach Endmills Carrying D d HSM90S APCR 1405... Inserts for Machining Aluminum ap H L kg Designation D a p Z H L d RPM max R d ° HSM90S EAL-D32-2-C32-14 32.00 10.00 2 80.00 200.00 32.00 37500 10.0 1.020 SR M5X0.8IP20-1S BLD IP20/M7 SW6-T-SH HSM90S EAL-D40-2-C32-14 40.00 10.00 2 45.00 220.00 32.00 37000 10.0 1.248 SR M5X0.8IP20-1S BLD IP20/M7 SW6-T-SH • Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screw • Insert tightening torque: 6 (Nxm) For inserts, see pages: HSM90S APCR 1405 (399) CUTTERS FOR ALUMINUM For inserts with a corner radius larger than 5.0 mm, the corner of the pocket must be modified according to the drawing. R body= R insert +0.5 mm D 3 Da Rd° HSM90S FAL-14 90° Face Mills Carrying Super L Positive and Polished Rake Inserts for Machining Aluminum ap at High Rotation Speeds D Designation D Z a p L D 3 Da Arbor (1) kg R d ° RPM max HSM90S FAL-D050-2-22-14 50.00 2 10.00 57.00 47.00 22.00 A 8.0 38000 0.434 HSM90S FAL-D050-3-22-14 50.00 3 10.00 57.00 47.00 22.00 A 8.0 38000 0.419 HSM90S FAL-D063-3-27-14 63.00 3 10.00 57.00 58.00 27.00 A 6.0 27000 0.691 HSM90S FAL-D080-4-27-14 80.00 4 10.00 57.00 60.00 27.00 A 5.0 25000 0.955 • Important: When machining at very high cutting speeds and the insert needs replacing, it is also recommended to replace the screw • Insert tightening torque: 6 (Nxm) (1) For adaptation options, see page 461 For inserts, see pages: HSM90S APCR 1405 (399) For inserts with a corner radius larger than 5.0 mm, the corner of the pocket must be modified according to the drawing. R body= R insert +0.5 mm Spare Parts Designation HSM90S FAL-D050-2-22-14 SR M5X0.8IP20-1 BLD IP20/M7 SW6-T-SH SR M10X40DIN912 HSM90S FAL-D050-3-22-14 SR M5X0.8IP20-1 BLD IP20/M7 SW6-T-SH SR M10X40DIN912 HSM90S FAL-D063-3-27-14 SR M5X0.8IP20-1 BLD IP20/M7 SW6-T-SH SR M12X35DIN912 HSM90S FAL-D080-4-27-14 SR M5X0.8IP20-1 BLD IP20/M7 SW6-T-SH SR M12X35DIN912 330 ISCAR
