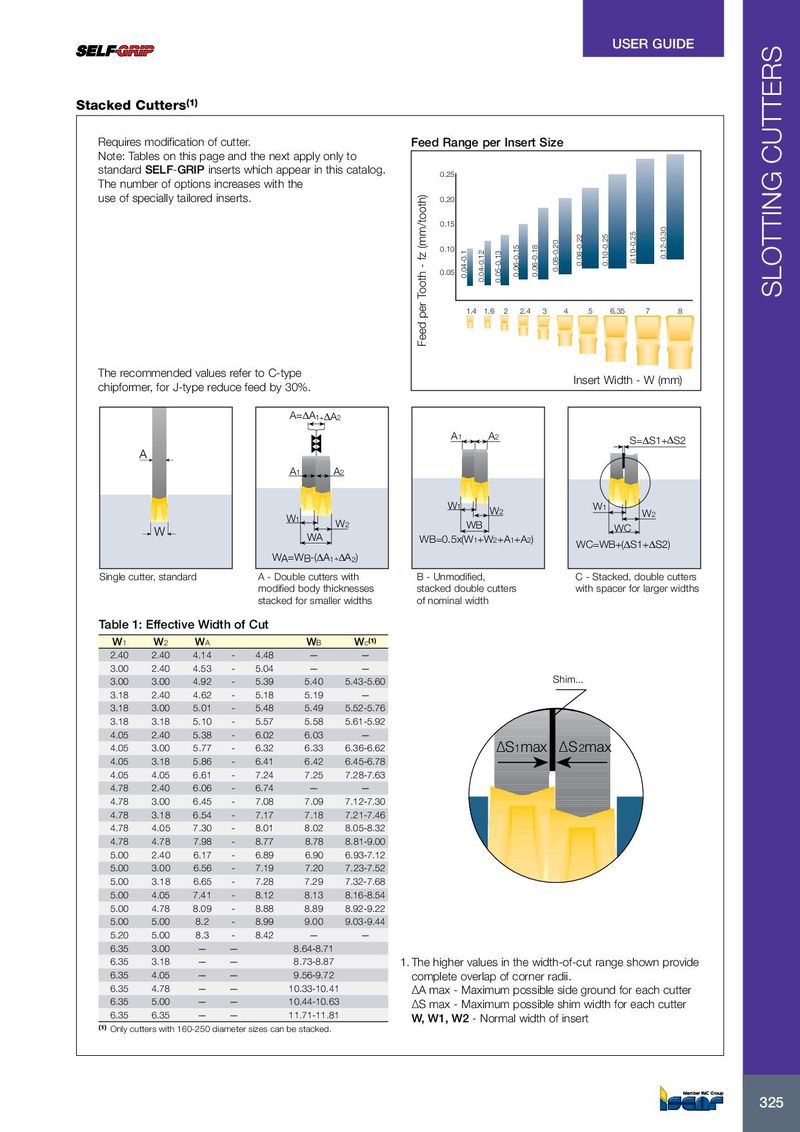

USER GUIDE (1) Stacked Cutters Requires modification of cutter. Feed Range per Insert Size Note: Tables on this page and the next apply only to standard SELF-GRIP inserts which appear in this catalog. 0.25 The number of options increases with the use of specially tailored inserts. 0.20 0.15 0.10 0.12-0.30 0.08-0.22 0.10-0.25 0.10-0.25 0.05 0.08-0.20 0.04-0.1 0.06-0.15 0.06-0.18 0.04-0.12 0.05-0.13 SLOTTING CUTTERS 1.4 1.6 2 2.4 3 4 5 6.35 7 8 Feed per Tooth - fz (mm/tooth) The recommended values refer to C-type Insert Width - W (mm) chipformer, for J-type reduce feed by 30%. A=ΔA 1 +ΔA 2 A1 A2 S=ΔS1+ Δ S2 A A1 A2 W1 W1 W2 W2 W1 W2 WB WC W WA WB=0.5x(W1+W2+A1+A2) WC=WB+(ΔS1+ΔS2) W A =W B -(ΔA 1 +ΔA 2 ) Single cutter, standard A - Double cutters with B - Unmodified, C - Stacked, double cutters modified body thicknesses stacked double cutters with spacer for larger widths stacked for smaller widths of nominal width Table 1: Effective Width of Cut W 1 W 2 W A W B W c (1) 2.40 2.40 4.14 - 4.48 — — 3.00 2.40 4.53 - 5.04 — — 3.00 3.00 4.92 - 5.39 5.40 5.43-5.60 Shim... 3.18 2.40 4.62 - 5.18 5.19 — 3.18 3.00 5.01 - 5.48 5.49 5.52-5.76 3.18 3.18 5.10 - 5.57 5.58 5.61-5.92 4.05 2.40 5.38 - 6.02 6.03 — 4.05 3.00 5.77 - 6.32 6.33 6.36-6.62 ∆S1max ∆S 2max 4.05 3.18 5.86 - 6.41 6.42 6.45-6.78 4.05 4.05 6.61 - 7.24 7.25 7.28-7.63 4.78 2.40 6.06 - 6.74 — — 4.78 3.00 6.45 - 7.08 7.09 7.12-7.30 4.78 3.18 6.54 - 7.17 7.18 7.21-7.46 4.78 4.05 7.30 - 8.01 8.02 8.05-8.32 4.78 4.78 7.98 - 8.77 8.78 8.81-9.00 5.00 2.40 6.17 - 6.89 6.90 6.93-7.12 5.00 3.00 6.56 - 7.19 7.20 7.23-7.52 5.00 3.18 6.65 - 7.28 7.29 7.32-7.68 5.00 4.05 7.41 - 8.12 8.13 8.16-8.54 5.00 4.78 8.09 - 8.88 8.89 8.92-9.22 5.00 5.00 8.2 - 8.99 9.00 9.03-9.44 5.20 5.00 8.3 - 8.42 — — 6.35 3.00 — — 8.64-8.71 6.35 3.18 — — 8.73-8.87 1. The higher values in the width-of-cut range shown provide 6.35 4.05 — — 9.56-9.72 complete overlap of corner radii. 6.35 4.78 — — 10.33-10.41 ∆A max - Maximum possible side ground for each cutter 6.35 5.00 — — 10.44-10.63 ∆S max - Maximum possible shim width for each cutter 6.35 6.35 — — 11.71-11.81 W, W1, W2 - Normal width of insert (1) Only cutters with 160-250 diameter sizes can be stacked. 325 325
