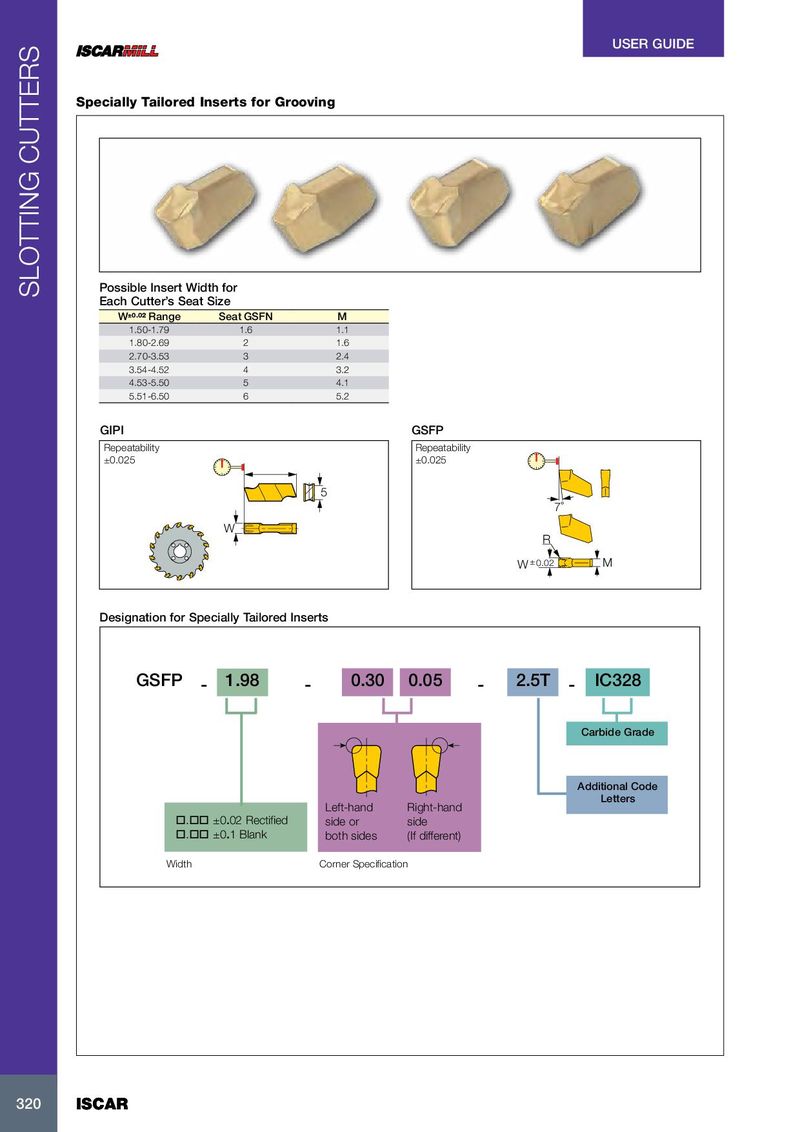

USER GUIDE Specially Tailored Inserts for Grooving Possible Insert Width for SLOTTING CUTTERS Each Cutter’s Seat Size W ±0.02 Range Seat GSFN M 1.50-1.79 1.6 1.1 1.80-2.69 2 1.6 2.70-3.53 3 2.4 3.54-4.52 4 3.2 4.53-5.50 5 4.1 5.51-6.50 6 5.2 GIPI GSFP Repeatability Repeatability ±0.025 ±0.025 5 5 7˚ 7˚ W W R R W ± 0.02 M W ± 0.02 M Designation for Specially Tailored Inserts GSFP 1.98 0.30 0.05 2.5T IC328 - - - - Carbide Grade Additional Code Letters Left-hand Right-hand o.oo ±0.02 Rectified side or side o.oo ±0.1 Blank both sides (If different) Width Corner Specification 320 320 ISCAR ISCAR
