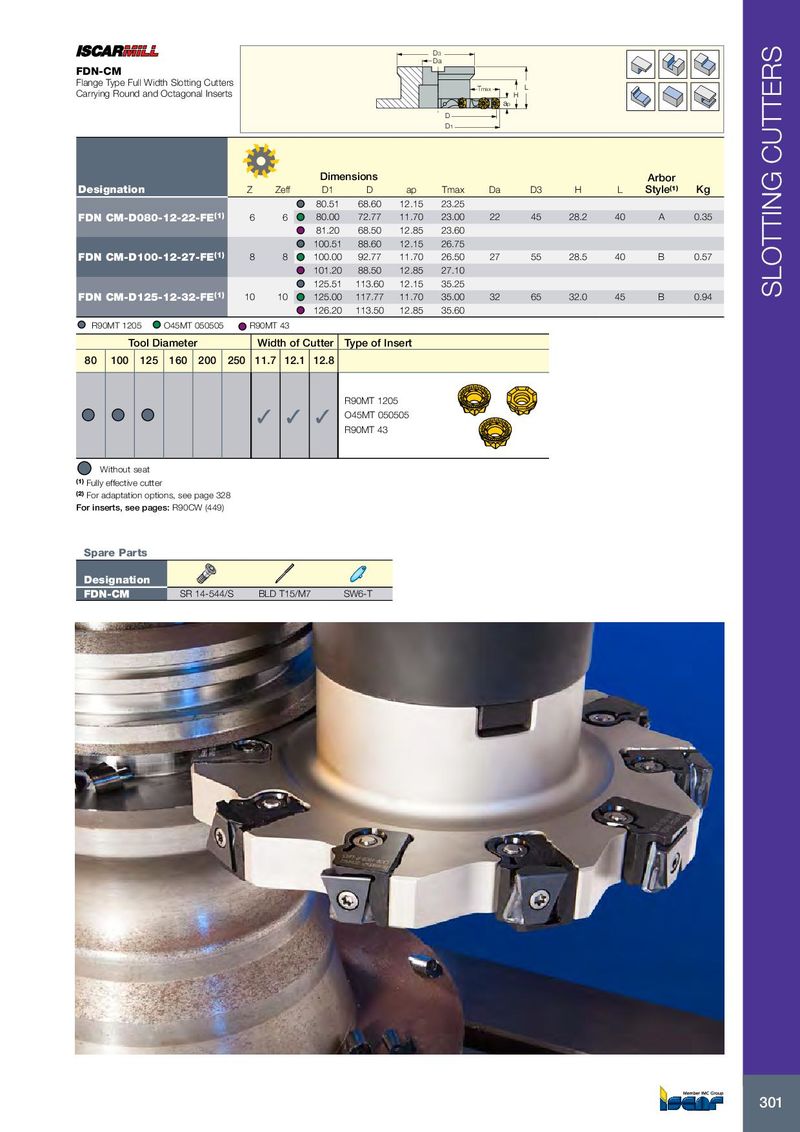

D3 Da FDN-CM Flange Type Full Width Slotting Cutters Tmax L Carrying Round and Octagonal Inserts H ap D D1 Dimensions Arbor Designation Z Zeff D1 D ap Tmax Da D3 H L Style (1) Kg 80.51 68.60 12.15 23.25 FDN CM-D080-12-22-FE (1) 6 6 80.00 72.77 11.70 23.00 22 45 28.2 40 A 0.35 81.20 68.50 12.85 23.60 100.51 88.60 12.15 26.75 FDN CM-D100-12-27-FE (1) 8 8 100.00 92.77 11.70 26.50 27 55 28.5 40 B 0.57 101.20 88.50 12.85 27.10 125.51 113.60 12.15 35.25 FDN CM-D125-12-32-FE (1) 10 10 125.00 117.77 11.70 35.00 32 65 32.0 45 B 0.94 SLOTTING CUTTERS 126.20 113.50 12.85 35.60 R90MT 1205 O45MT 050505 R90MT 43 Tool Diameter Width of Cutter Type of Insert 80 100 125 160 200 250 11.7 12.1 12.8 R90MT 1205 O45MT 050505 R90MT 43 Without seat (1) Fully effective cutter (2) For adaptation options, see page 328 For inserts, see pages: R90CW (449) Spare Parts Designation FDN-CM SR 14-544/S BLD T15/M7 SW6-T 301
