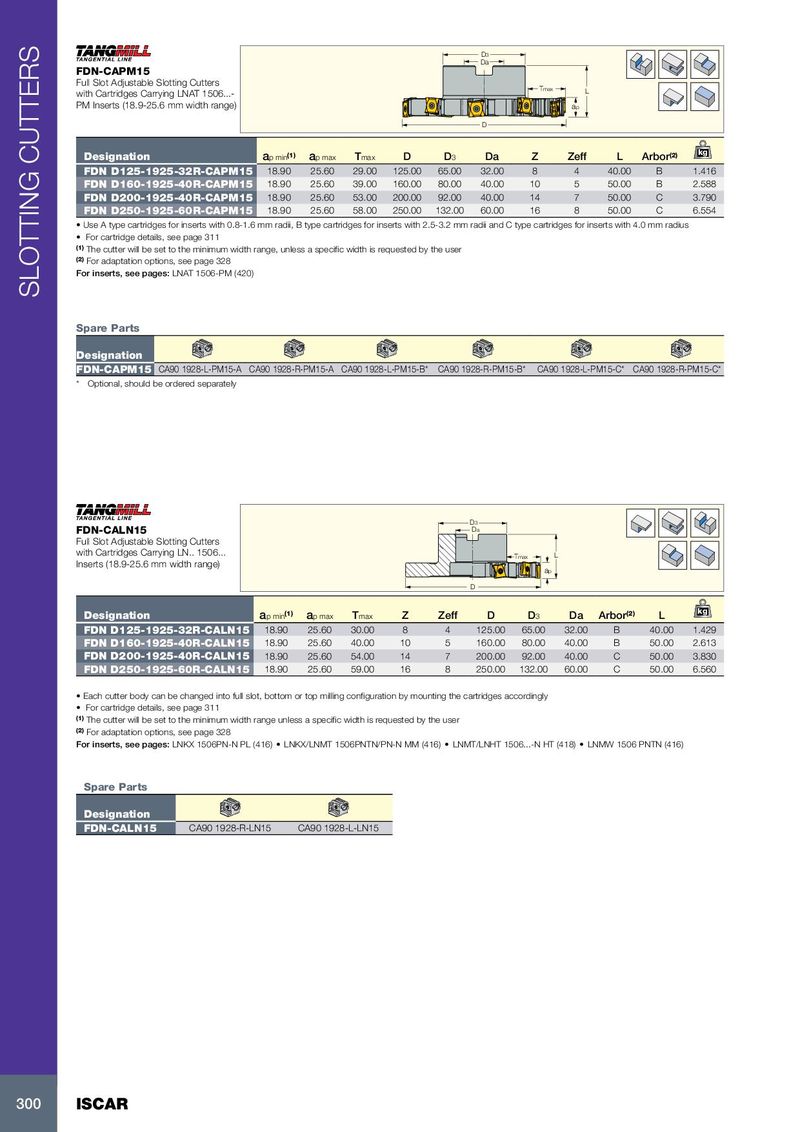

Каталог Iscar вращающийся инструмент 2017 - страница 304

D3 Da FDN-CAPM15 Full Slot Adjustable Slotting Cutters Tmax with Cartridges Carrying LNAT 1506...- L PM Inserts (18.9-25.6 mm width range) ap D kg Designation a p min (1) a p max T max D D 3 Da Z Zeff L Arbor (2) FDN D125-1925-32R-CAPM15 18.90 25.60 29.00 125.00 65.00 32.00 8 4 40.00 B 1.416 FDN D160-1925-40R-CAPM15 18.90 25.60 39.00 160.00 80.00 40.00 10 5 50.00 B 2.588 FDN D200-1925-40R-CAPM15 18.90 25.60 53.00 200.00 92.00 40.00 14 7 50.00 C 3.790 FDN D250-1925-60R-CAPM15 18.90 25.60 58.00 250.00 132.00 60.00 16 8 50.00 C 6.554 • Use A type cartridges for inserts with 0.8-1.6 mm radii, B type cartridges for inserts with 2.5-3.2 mm radii and C type cartridges for inserts with 4.0 mm radius • For cartridge details, see page 311 (1) The cutter will be set to the minimum width range, unless a specific width is requested by the user (2) For adaptation options, see page 328 For inserts, see pages: LNAT 1506-PM (420) SLOTTING CUTTERS Spare Parts Designation FDN-CAPM15 CA90 1928-L-PM15-A CA90 1928-R-PM15-A CA90 1928-L-PM15-B* CA90 1928-R-PM15-B* CA90 1928-L-PM15-C* CA90 1928-R-PM15-C* * Optional, should be ordered separately D 3 FDN-CALN15 Da Full Slot Adjustable Slotting Cutters with Cartridges Carrying LN.. 1506... Tmax L Inserts (18.9-25.6 mm width range) ap D Designation a p min (1) a p max T max Z Zeff D D 3 Da Arbor (2) kg L FDN D125-1925-32R-CALN15 18.90 25.60 30.00 8 4 125.00 65.00 32.00 B 40.00 1.429 FDN D160-1925-40R-CALN15 18.90 25.60 40.00 10 5 160.00 80.00 40.00 B 50.00 2.613 FDN D200-1925-40R-CALN15 18.90 25.60 54.00 14 7 200.00 92.00 40.00 C 50.00 3.830 FDN D250-1925-60R-CALN15 18.90 25.60 59.00 16 8 250.00 132.00 60.00 C 50.00 6.560 • Each cutter body can be changed into full slot, bottom or top milling configuration by mounting the cartridges accordingly • For cartridge details, see page 311 (1) The cutter will be set to the minimum width range unless a specific width is requested by the user (2) For adaptation options, see page 328 For inserts, see pages: LNKX 1506PN-N PL (416) • LNKX/LNMT 1506PNTN/PN-N MM (416) • LNMT/LNHT 1506...-N HT (418) • LNMW 1506 PNTN (416) Spare Parts Designation FDN-CALN15 CA90 1928-R-LN15 CA90 1928-L-LN15 300 ISCAR
