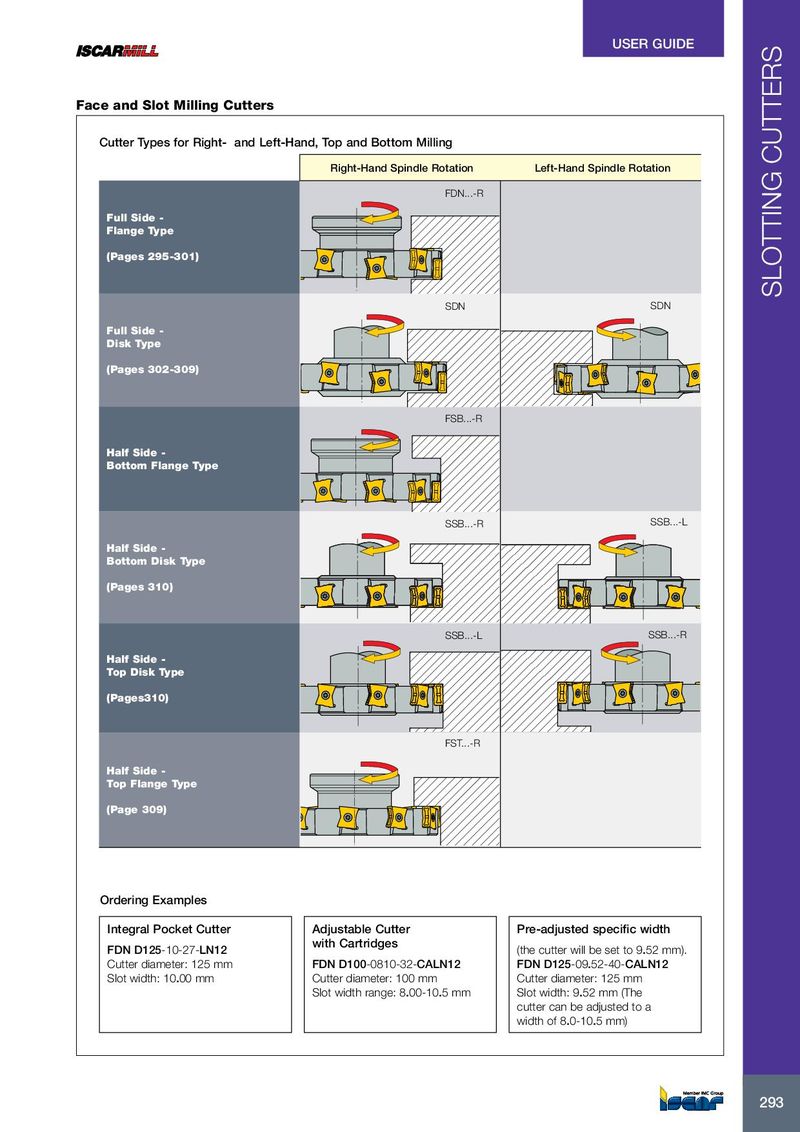

USER GUIDE Face and Slot Milling Cutters Cutter Types for Right- and Left-Hand, Top and Bottom Milling Right-Hand Spindle Rotation Left-Hand Spindle Rotation FDN...-R Full Side - Flange Type (Pages 295-301) SLOTTING CUTTERS SDN SDN Full Side - Disk Type (Pages 302-309) FSB...-R Half Side - Bottom Flange Type SSB...-R SSB...-L Half Side - Bottom Disk Type (Pages 310) SSB...-L SSB...-R Half Side - Top Disk Type (Pages310) FST...-R Half Side - Top Flange Type (Page 309) Ordering Examples Integral Pocket Cutter Adjustable Cutter Pre-adjusted specific width with Cartridges FDN D125-10-27-LN12 (the cutter will be set to 9.52 mm). Cutter diameter: 125 mm FDN D100-0810-32-CALN12 FDN D125-09.52-40-CALN12 Slot width: 10.00 mm Cutter diameter: 100 mm Cutter diameter: 125 mm Slot width range: 8.00-10.5 mm Slot width: 9.52 mm (The cutter can be adjusted to a width of 8.0-10.5 mm) 293 293
