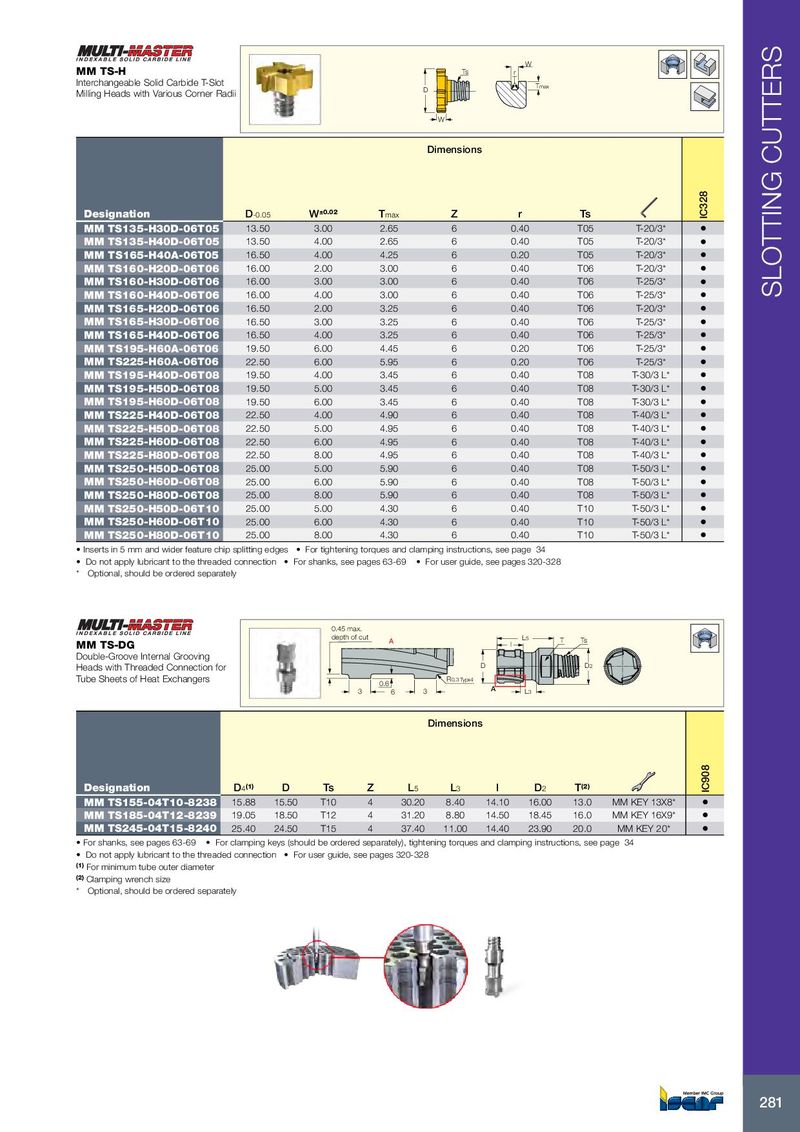

W MM TS-H Ts r Interchangeable Solid Carbide T-Slot D Tmax Milling Heads with Various Corner Radii W Dimensions Designation D -0.05 W ±0.02 T max Z r Ts IC328 MM TS135-H30D-06T05 13.50 3.00 2.65 6 0.40 T05 T-20/3* • MM TS135-H40D-06T05 13.50 4.00 2.65 6 0.40 T05 T-20/3* • MM TS165-H40A-06T05 16.50 4.00 4.25 6 0.20 T05 T-20/3* • MM TS160-H20D-06T06 16.00 2.00 3.00 6 0.40 T06 T-20/3* • MM TS160-H30D-06T06 16.00 3.00 3.00 6 0.40 T06 T-25/3* • MM TS160-H40D-06T06 16.00 4.00 3.00 6 0.40 T06 T-25/3* • SLOTTING CUTTERS MM TS165-H20D-06T06 16.50 2.00 3.25 6 0.40 T06 T-20/3* • MM TS165-H30D-06T06 16.50 3.00 3.25 6 0.40 T06 T-25/3* • MM TS165-H40D-06T06 16.50 4.00 3.25 6 0.40 T06 T-25/3* • MM TS195-H60A-06T06 19.50 6.00 4.45 6 0.20 T06 T-25/3* • MM TS225-H60A-06T06 22.50 6.00 5.95 6 0.20 T06 T-25/3* • MM TS195-H40D-06T08 19.50 4.00 3.45 6 0.40 T08 T-30/3 L* • MM TS195-H50D-06T08 19.50 5.00 3.45 6 0.40 T08 T-30/3 L* • MM TS195-H60D-06T08 19.50 6.00 3.45 6 0.40 T08 T-30/3 L* • MM TS225-H40D-06T08 22.50 4.00 4.90 6 0.40 T08 T-40/3 L* • MM TS225-H50D-06T08 22.50 5.00 4.95 6 0.40 T08 T-40/3 L* • MM TS225-H60D-06T08 22.50 6.00 4.95 6 0.40 T08 T-40/3 L* • MM TS225-H80D-06T08 22.50 8.00 4.95 6 0.40 T08 T-40/3 L* • MM TS250-H50D-06T08 25.00 5.00 5.90 6 0.40 T08 T-50/3 L* • MM TS250-H60D-06T08 25.00 6.00 5.90 6 0.40 T08 T-50/3 L* • MM TS250-H80D-06T08 25.00 8.00 5.90 6 0.40 T08 T-50/3 L* • MM TS250-H50D-06T10 25.00 5.00 4.30 6 0.40 T10 T-50/3 L* • MM TS250-H60D-06T10 25.00 6.00 4.30 6 0.40 T10 T-50/3 L* • MM TS250-H80D-06T10 25.00 8.00 4.30 6 0.40 T10 T-50/3 L* • • Inserts in 5 mm and wider feature chip splitting edges • For tightening torques and clamping instructions, see page 34 • Do not apply lubricant to the threaded connection • For shanks, see pages 63-69 • For user guide, see pages 320-328 * Optional, should be ordered separately 0.45 max. depth of cut A L5 T Ts MM TS-DG l Double-Groove Internal Grooving Heads with Threaded Connection for D D2 Tube Sheets of Heat Exchangers R0.3 Typx4 0.6 3 6 3 A L3 Dimensions Designation D 4 (1) D Ts Z L 5 L 3 l D 2 T (2) IC908 MM TS155-04T10-8238 15.88 15.50 T10 4 30.20 8.40 14.10 16.00 13.0 MM KEY 13X8* • MM TS185-04T12-8239 19.05 18.50 T12 4 31.20 8.80 14.50 18.45 16.0 MM KEY 16X9* • MM TS245-04T15-8240 25.40 24.50 T15 4 37.40 11.00 14.40 23.90 20.0 MM KEY 20* • • For shanks, see pages 63-69 • For clamping keys (should be ordered separately), tightening torques and clamping instructions, see page 34 • Do not apply lubricant to the threaded connection • For user guide, see pages 320-328 (1) For minimum tube outer diameter (2) Clamping wrench size * Optional, should be ordered separately 281
