Каталог Iscar вращающийся инструмент 2017 - страница 284

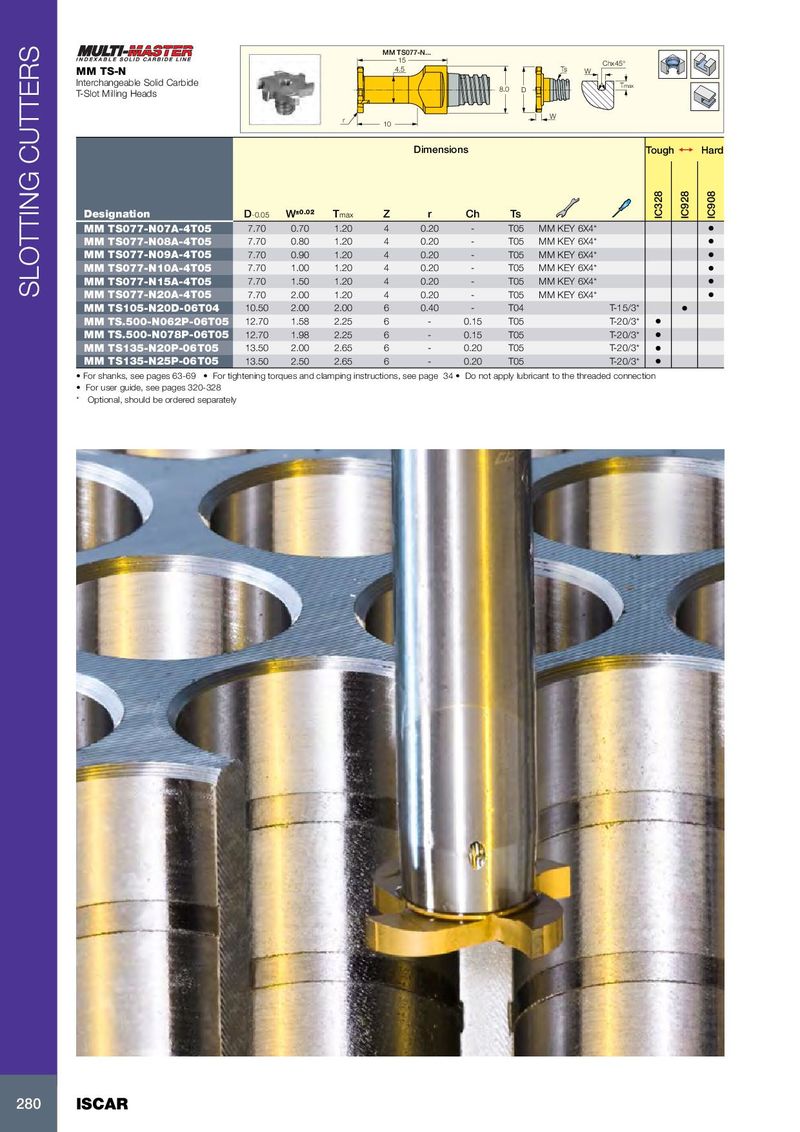

MM TS077-N... 15 Chx45° MM TS-N 4.5 Ts W Interchangeable Solid Carbide 8.0 Tmax D T-Slot Milling Heads r W 10 Dimensions Tough 1  Hard Designation D -0.05 W ±0.02 T max Z r Ch Ts IC328 IC928 IC908 MM TS077-N07A-4T05 7.70 0.70 1.20 4 0.20 - T05 MM KEY 6X4* • MM TS077-N08A-4T05 7.70 0.80 1.20 4 0.20 - T05 MM KEY 6X4* • MM TS077-N09A-4T05 7.70 0.90 1.20 4 0.20 - T05 MM KEY 6X4* • MM TS077-N10A-4T05 7.70 1.00 1.20 4 0.20 - T05 MM KEY 6X4* • MM TS077-N15A-4T05 7.70 1.50 1.20 4 0.20 - T05 MM KEY 6X4* • SLOTTING CUTTERS MM TS077-N20A-4T05 7.70 2.00 1.20 4 0.20 - T05 MM KEY 6X4* • MM TS105-N20D-06T04 10.50 2.00 2.00 6 0.40 - T04 T-15/3* • MM TS.500-N062P-06T05 12.70 1.58 2.25 6 - 0.15 T05 T-20/3* • MM TS.500-N078P-06T05 12.70 1.98 2.25 6 - 0.15 T05 T-20/3* • MM TS135-N20P-06T05 13.50 2.00 2.65 6 - 0.20 T05 T-20/3* • MM TS135-N25P-06T05 13.50 2.50 2.65 6 - 0.20 T05 T-20/3* • • For shanks, see pages 63-69 • For tightening torques and clamping instructions, see page 34 • Do not apply lubricant to the threaded connection • For user guide, see pages 320-328 * Optional, should be ordered separately 280 ISCAR
