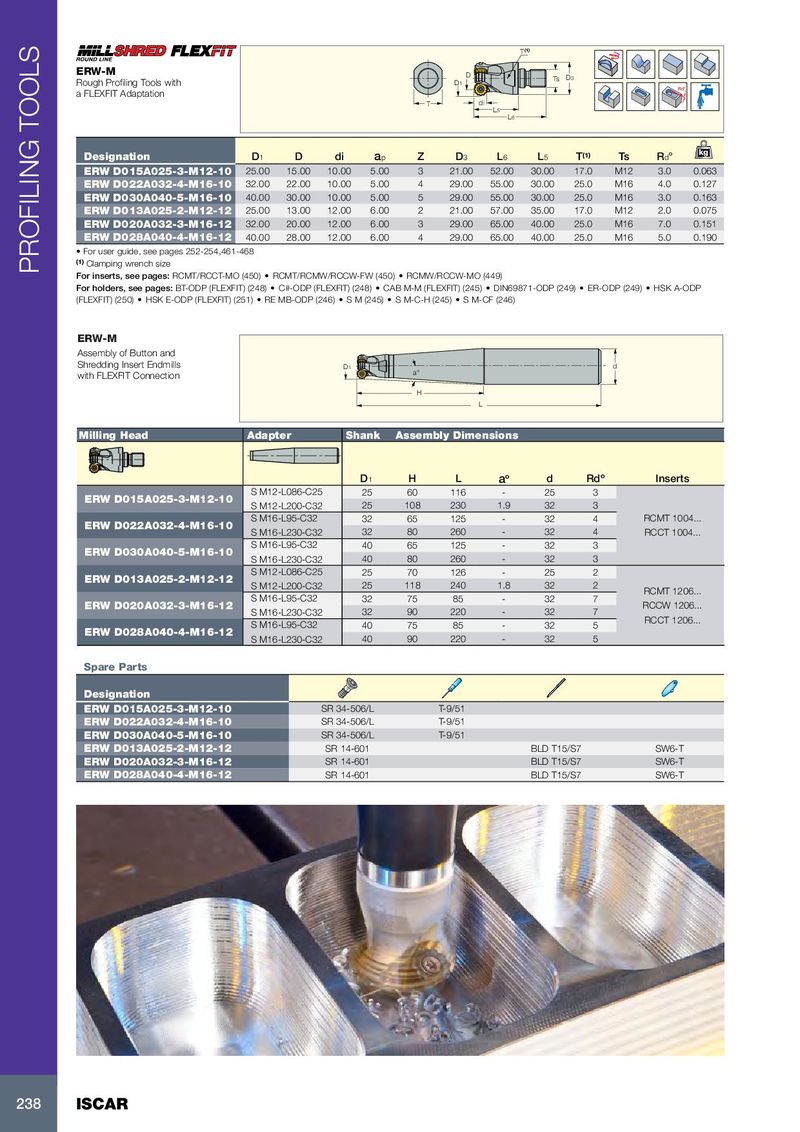

| ERW-M Rough Profiling Tools with a FLEXFIT Adaptation | | | | | T | D D1 | di L5 L6 | Ts T(1) | D3 | | Rd° | |
| Designation | D1 | D | di | ap | Z | D3 | L6 | L5 | T(1) | Ts | Rd° | kg |
| ERW D015A025-3-M12-10 | 25.00 | 15.00 | 10.00 | 5.00 | 3 | 21.00 | 52.00 | 30.00 | 17.0 | M12 | 3.0 | 0.063 |
| ERW D022A032-4-M16-10 | 32.00 | 22.00 | 10.00 | 5.00 | 4 | 29.00 | 55.00 | 30.00 | 25.0 | M16 | 4.0 | 0.127 |
| ERW D030A040-5-M16-10 | 40.00 | 30.00 | 10.00 | 5.00 | 5 | 29.00 | 55.00 | 30.00 | 25.0 | M16 | 3.0 | 0.163 |
| ERW D013A025-2-M12-12 | 25.00 | 13.00 | 12.00 | 6.00 | 2 | 21.00 | 57.00 | 35.00 | 17.0 | M12 | 2.0 | 0.075 |
| ERW D020A032-3-M16-12 | 32.00 | 20.00 | 12.00 | 6.00 | 3 | 29.00 | 65.00 | 40.00 | 25.0 | M16 | 7.0 | 0.151 |
| ERW D028A040-4-M16-12 | 40.00 | 28.00 | 12.00 | 6.00 | 4 | 29.00 | 65.00 | 40.00 | 25.0 | M16 | 5.0 | 0.190 |
- For user guide, see pages 252-254,461-468
(1) Clamping wrench size For inserts, see pages: RCMT/RCCT-MO (450) RCMT/RCMW/RCCW-FW (450) RCMW/RCCW-MO (449) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246)
ERW-M
Assembly of Button and
| Shredding Insert Endmills | D | d |
| 1 | a° |
| with FLEXFIT Connection | | |
| | H |
| | L |
| Milling Head | Adapter Shank | Assembly Dimensions |
| | D1 | H | L | aº | d | Rdº | Inserts |
| S M12-L086-C25 | 25 | 60 | 116 | - | 25 | 3 | |
| ERW D015A025-3-M12-10 | | | | | | | | |
| S M12-L200-C32 | 25 | 108 | 230 | 1.9 | 32 | 3 | |
| S M16-L95-C32 | 32 | 65 | 125 | - | 32 | 4 | RCMT 1004... |
| ERW D022A032-4-M16-10 | | | | | | | | |
| S M16-L230-C32 | 32 | 80 | 260 | - | 32 | 4 | RCCT 1004... |
| S M16-L95-C32 | 40 | 65 | 125 | - | 32 | 3 | |
| ERW D030A040-5-M16-10 | | | | | | | | |
| S M16-L230-C32 | 40 | 80 | 260 | - | 32 | 3 | |
| S M12-L086-C25 | 25 | 70 | 126 | - | 25 | 2 | |
| ERW D013A025-2-M12-12 | | | | | | | | |
| S M12-L200-C32 | 25 | 118 | 240 | 1.8 | 32 | 2 | |
| | | | | | | | RCMT 1206... |
| S M16-L95-C32 | 32 | 75 | 85 | - | 32 | 7 | |
| ERW D020A032-3-M16-12 | | | | | | | | RCCW 1206... |
| S M16-L230-C32 | 32 | 90 | 220 | - | 32 | 7 | |
| | | | | | | | RCCT 1206... |
| S M16-L95-C32 | 40 | 75 | 85 | - | 32 | 5 | |
| ERW D028A040-4-M16-12 | | | | | | | | |
| S M16-L230-C32 | 40 | 90 | 220 | - | 32 | 5 | |
| Spare Parts | | | | | | | | |
| Designation | | | | | | | | |
| ERW D015A025-3-M12-10 | SR 34-506/L | T-9/51 | | |
| ERW D022A032-4-M16-10 | SR 34-506/L | T-9/51 | | |
| ERW D030A040-5-M16-10 | SR 34-506/L | T-9/51 | | |
| ERW D013A025-2-M12-12 | SR 14-601 | | BLD T15/S7 | SW6-T |
| ERW D020A032-3-M16-12 | SR 14-601 | | BLD T15/S7 | SW6-T |
| ERW D028A040-4-M16-12 | SR 14-601 | | BLD T15/S7 | SW6-T |
