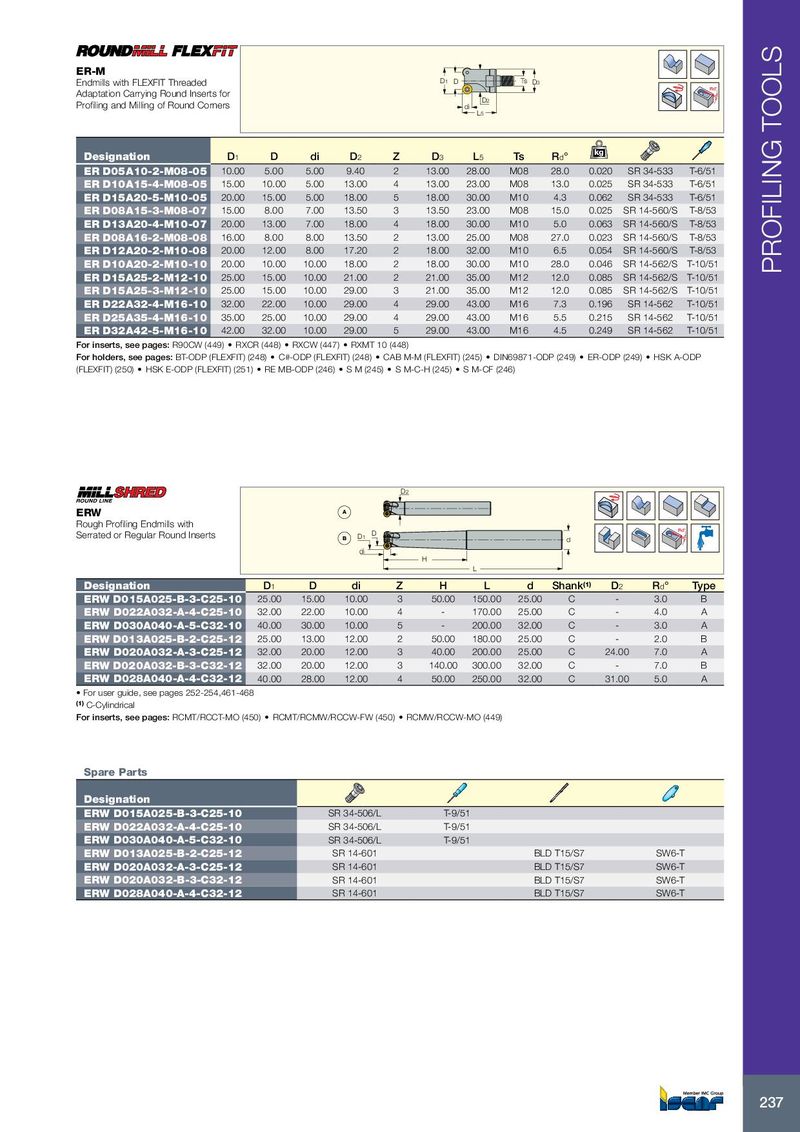

ER-M
| Endmills with FLEXFIT Threaded Adaptation Carrying Round Inserts Profiling and Milling of Round Corn | for ers | D1 D | L5 di D2 | Ts D3 | Rd° | |||||||
| Designation | D1 | D | di | D2 | Z | D3 | L5 | Ts | Rd° | kg | ||
| ER D05A10-2-M08-05 | 10.00 | 5.00 | 5.00 | 9.40 | 2 | 13.00 | 28.00 | M08 | 28.0 | 0.020 | SR 34-533 | T-6/51 |
| ER D10A15-4-M08-05 | 15.00 | 10.00 | 5.00 | 13.00 | 4 | 13.00 | 23.00 | M08 | 13.0 | 0.025 | SR 34-533 | T-6/51 |
| ER D15A20-5-M10-05 | 20.00 | 15.00 | 5.00 | 18.00 | 5 | 18.00 | 30.00 | M10 | 4.3 | 0.062 | SR 34-533 | T-6/51 |
| ER D08A15-3-M08-07 | 15.00 | 8.00 | 7.00 | 13.50 | 3 | 13.50 | 23.00 | M08 | 15.0 | 0.025 | SR 14-560/S | T-8/53 |
| ER D13A20-4-M10-07 | 20.00 | 13.00 | 7.00 | 18.00 | 4 | 18.00 | 30.00 | M10 | 5.0 | 0.063 | SR 14-560/S | T-8/53 |
| ER D08A16-2-M08-08 | 16.00 | 8.00 | 8.00 | 13.50 | 2 | 13.00 | 25.00 | M08 | 27.0 | 0.023 | SR 14-560/S | T-8/53 |
| ER D12A20-2-M10-08 | 20.00 | 12.00 | 8.00 | 17.20 | 2 | 18.00 | 32.00 | M10 | 6.5 | 0.054 | SR 14-560/S | T-8/53 |
| ER D10A20-2-M10-10 | 20.00 | 10.00 | 10.00 | 18.00 | 2 | 18.00 | 30.00 | M10 | 28.0 | 0.046 | SR 14-562/S | T-10/51 |
| ER D15A25-2-M12-10 | 25.00 | 15.00 | 10.00 | 21.00 | 2 | 21.00 | 35.00 | M12 | 12.0 | 0.085 | SR 14-562/S | T-10/51 |
| ER D15A25-3-M12-10 | 25.00 | 15.00 | 10.00 | 29.00 | 3 | 21.00 | 35.00 | M12 | 12.0 | 0.085 | SR 14-562/S | T-10/51 |
| ER D22A32-4-M16-10 | 32.00 | 22.00 | 10.00 | 29.00 | 4 | 29.00 | 43.00 | M16 | 7.3 | 0.196 | SR 14-562 | T-10/51 |
| ER D25A35-4-M16-10 | 35.00 | 25.00 | 10.00 | 29.00 | 4 | 29.00 | 43.00 | M16 | 5.5 | 0.215 | SR 14-562 | T-10/51 |
| ER D32A42-5-M16-10 | 42.00 | 32.00 | 10.00 | 29.00 | 5 | 29.00 | 43.00 | M16 | 4.5 | 0.249 | SR 14-562 | T-10/51 |
For inserts, see pages: R90CW (449) RXCR (448) RXCW (447) RXMT 10 (448) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246)
| ERW | A | D2 | |||||||||
| Rough Profiling Endmills with | ° | ||||||||||
| Serrated or Regular Round Inserts | B D D1 di | H | L | d | Rd | ||||||
| Designation | D1 | D | di | Z | H | L | d | Shank(1 | ) D2 | Rd° | Type |
| ERW D015A025-B-3-C25-10 | 25.00 | 15.00 | 10.00 | 3 | 50.00 | 150.00 | 25.00 | C | - | 3.0 | B |
| ERW D022A032-A-4-C25-10 | 32.00 | 22.00 | 10.00 | 4 | - | 170.00 | 25.00 | C | - | 4.0 | A |
| ERW D030A040-A-5-C32-10 | 40.00 | 30.00 | 10.00 | 5 | - | 200.00 | 32.00 | C | - | 3.0 | A |
| ERW D013A025-B-2-C25-12 | 25.00 | 13.00 | 12.00 | 2 | 50.00 | 180.00 | 25.00 | C | - | 2.0 | B |
| ERW D020A032-A-3-C25-12 | 32.00 | 20.00 | 12.00 | 3 | 40.00 | 200.00 | 25.00 | C | 24.00 | 7.0 | A |
| ERW D020A032-B-3-C32-12 | 32.00 | 20.00 | 12.00 | 3 | 140.00 | 300.00 | 32.00 | C | - | 7.0 | B |
| ERW D028A040-A-4-C32-12 | 40.00 | 28.00 | 12.00 | 4 | 50.00 | 250.00 | 32.00 | C | 31.00 | 5.0 | A |
- For user guide, see pages 252-254,461-468
(1) C-Cylindrical For inserts, see pages: RCMT/RCCT-MO (450) RCMT/RCMW/RCCW-FW (450) RCMW/RCCW-MO (449)
Spare Parts
| Designation | ||||
| ERW D015A025-B-3-C25-10 | SR 34-506/L | T-9/51 | ||
| ERW D022A032-A-4-C25-10 | SR 34-506/L | T-9/51 | ||
| ERW D030A040-A-5-C32-10 | SR 34-506/L | T-9/51 | ||
| ERW D013A025-B-2-C25-12 | SR 14-601 | BLD T15/S7 | SW6-T | |
| ERW D020A032-A-3-C25-12 | SR 14-601 | BLD T15/S7 | SW6-T | |
| ERW D020A032-B-3-C32-12 | SR 14-601 | BLD T15/S7 | SW6-T | |
| ERW D028A040-A-4-C32-12 | SR 14-601 | BLD T15/S7 | SW6-T |
