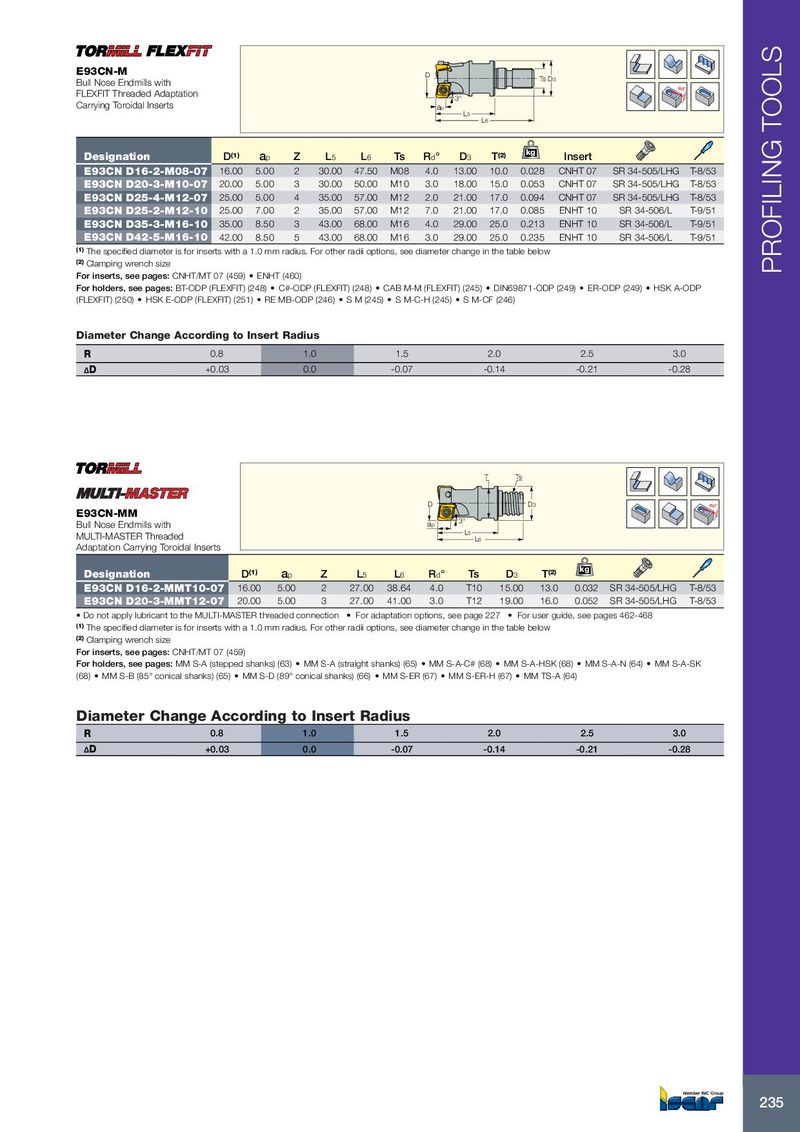

| E93CN-M | D | Ts D3 | ||||||||||||
| Bull Nose Endmills with FLEXFIT Threaded Adaptation Carrying Toroidal Inserts | ap | L5 L 3° | 6 | Rd° | ||||||||||
| Designation | D(1) | ap | Z | L5 | L6 | Ts | Rd° | D3 | T(2) | kg | Insert | |||
| E93CN D16-2-M08-07 | 16.00 | 5.00 | 2 | 30.00 | 47.50 | M08 | 4.0 | 13.00 | 10.0 | 0.028 | CNHT 07 | SR 34-505 | /LHG | T-8/53 |
| E93CN D20-3-M10-07 | 20.00 | 5.00 | 3 | 30.00 | 50.00 | M10 | 3.0 | 18.00 | 15.0 | 0.053 | CNHT 07 | SR 34-505 | /LHG | T-8/53 |
| E93CN D25-4-M12-07 | 25.00 | 5.00 | 4 | 35.00 | 57.00 | M12 | 2.0 | 21.00 | 17.0 | 0.094 | CNHT 07 | SR 34-505 | /LHG | T-8/53 |
| E93CN D25-2-M12-10 | 25.00 | 7.00 | 2 | 35.00 | 57.00 | M12 | 7.0 | 21.00 | 17.0 | 0.085 | ENHT 10 | SR 34-50 | 6/L | T-9/51 |
| E93CN D35-3-M16-10 | 35.00 | 8.50 | 3 | 43.00 | 68.00 | M16 | 4.0 | 29.00 | 25.0 | 0.213 | ENHT 10 | SR 34-50 | 6/L | T-9/51 |
| E93CN D42-5-M16-10 | 42.00 | 8.50 | 5 | 43.00 | 68.00 | M16 | 3.0 | 29.00 | 25.0 | 0.235 | ENHT 10 | SR 34-50 | 6/L | T-9/51 |
(1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) Clamping wrench size For inserts, see pages: CNHT/MT 07 (459) ENHT (460) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246)
Diameter Change According to Insert Radius
| R 0.8 1.0 1.5 2.0 2.5 3.0 |
| ∆D +0.03 0.0 -0.07 -0.14 -0.21 -0.28 |
T Ts
D D 3 E93CN-MM Rd°
| Bull Nose Endmills with | a | 3° | |
| p | |||
| MULTI-MASTER Threaded | L5 | ||
| L6 | |||
| Adaptation Carrying Toroidal Inserts |
| Designation | D(1) | a | Z | L | L | R ° | Ts | D | T(2) | kg | |||||
| p | 5 | 6 | d | 3 | |||||||||||
| E93CN D16-2-MMT10-07 | 16.00 | 5.00 | 2 | 27.00 | 38.64 | 4.0 | T10 | 15.00 | 13.0 | 0.032 | SR 34-505/LHG | T-8/53 | |||
| E93CN D20-3-MMT12-07 | 20.00 | 5.00 | 3 | 27.00 | 41.00 | 3.0 | T12 | 19.00 | 16.0 | 0.052 | SR 34-505/LHG | T-8/53 |
- Do not apply lubricant to the MULTI-MASTER threaded connection
- For adaptation options, see page 227
- For user guide, see pages 462-468
(1) The specified diameter is for inserts with a 1.0 mm radius. For other radii options, see diameter change in the table below (2) Clamping wrench size For inserts, see pages: CNHT/MT 07 (459) For holders, see pages: MM S-A (stepped shanks) (63) MM S-A (straight shanks) (65) MM S-A-C# (68) MM S-A-HSK (68) MM S-A-N (64) MM S-A-SK (68) MM S-B (85° conical shanks) (65) MM S-D (89° conical shanks) (66) MM S-ER (67) MM S-ER-H (67) MM TS-A (64)
Diameter Change According to Insert Radius
| R 0.8 1 | .0 1.5 | 2.0 | 2.5 | 3.0 |
| ∆D +0.03 0 | .0 -0.07 | -0.14 | -0.21 | -0.28 |
