| | | | | L H | | | | | | |

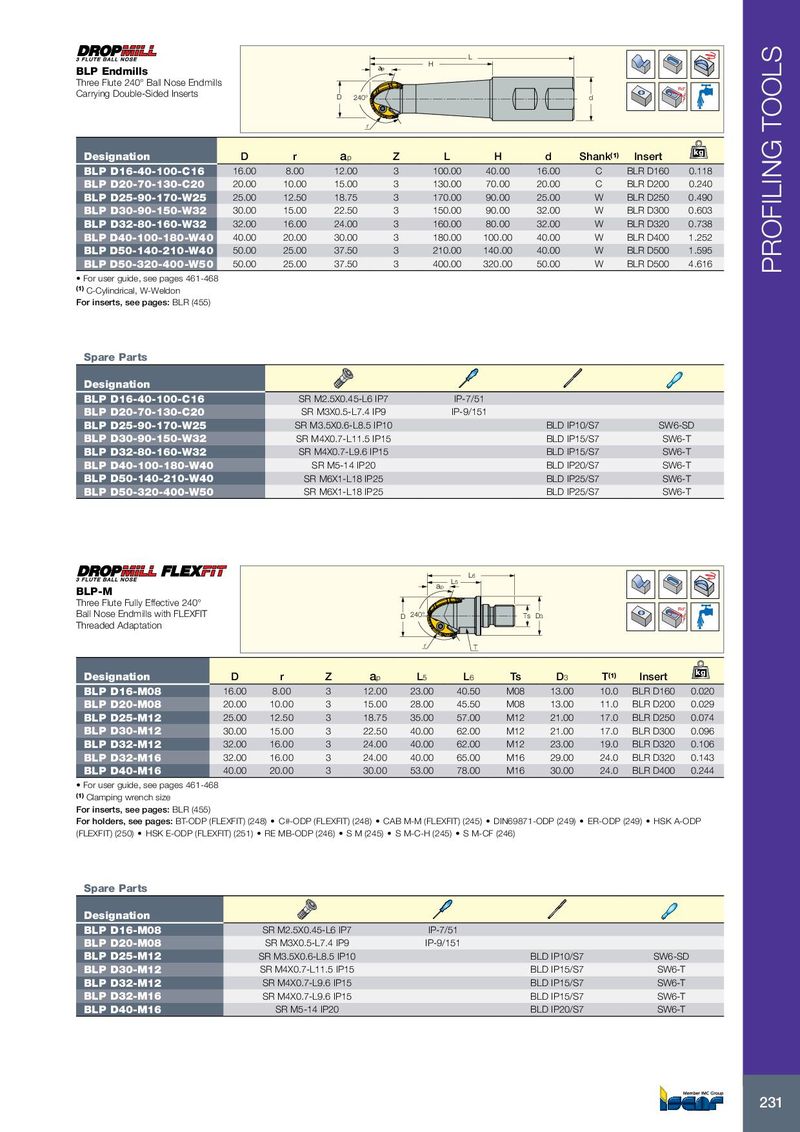

| BLP Endmills | | | | ap | | | | | | | |
| Three Flute 240° Ball Nose Endmills Carrying Double-Sided Inserts | | | D 240° r | | | | | d | | Rd° | |
| Designation | D | r | ap | Z | L | H | d | Shank(1) | Inser | t | kg |
| BLP D16-40-100-C16 | 16.00 | 8.00 | 12.00 | 3 | 100.00 | 40.00 | 16.00 | C | BLR D1 | 60 | 0.118 |
| BLP D20-70-130-C20 | 20.00 | 10.00 | 15.00 | 3 | 130.00 | 70.00 | 20.00 | C | BLR D2 | 00 | 0.240 |
| BLP D25-90-170-W25 | 25.00 | 12.50 | 18.75 | 3 | 170.00 | 90.00 | 25.00 | W | BLR D2 | 50 | 0.490 |
| BLP D30-90-150-W32 | 30.00 | 15.00 | 22.50 | 3 | 150.00 | 90.00 | 32.00 | W | BLR D3 | 00 | 0.603 |
| BLP D32-80-160-W32 | 32.00 | 16.00 | 24.00 | 3 | 160.00 | 80.00 | 32.00 | W | BLR D3 | 20 | 0.738 |
| BLP D40-100-180-W40 | 40.00 | 20.00 | 30.00 | 3 | 180.00 | 100.00 | 40.00 | W | BLR D4 | 00 | 1.252 |
| BLP D50-140-210-W40 | 50.00 | 25.00 | 37.50 | 3 | 210.00 | 140.00 | 40.00 | W | BLR D5 | 00 | 1.595 |
| BLP D50-320-400-W50 | 50.00 | 25.00 | 37.50 | 3 | 400.00 | 320.00 | 50.00 | W | BLR D5 | 00 | 4.616 |
- For user guide, see pages 461-468
(1) C-Cylindrical, W-Weldon For inserts, see pages: BLR (455)
Spare Parts
| Designation | | | | |
| BLP D16-40-100-C16 | SR M2.5X0.45-L6 IP7 | IP-7/51 | | |
| BLP D20-70-130-C20 | SR M3X0.5-L7.4 IP9 | IP-9/151 | | |
| BLP D25-90-170-W25 | SR M3.5X0.6-L8.5 IP10 | | BLD IP10/S7 | SW6-SD |
| BLP D30-90-150-W32 | SR M4X0.7-L11.5 IP15 | | BLD IP15/S7 | SW6-T |
| BLP D32-80-160-W32 | SR M4X0.7-L9.6 IP15 | | BLD IP15/S7 | SW6-T |
| BLP D40-100-180-W40 | SR M5-14 IP20 | | BLD IP20/S7 | SW6-T |
| BLP D50-140-210-W40 | SR M6X1-L18 IP25 | | BLD IP25/S7 | SW6-T |
| BLP D50-320-400-W50 | SR M6X1-L18 IP25 | | BLD IP25/S7 | SW6-T |
| BLP-M | | | | | ap | L6 L5 | | | | | | |
| Three Flute Fully Effective 240° Ball Nose Endmills with FLEXFIT Threaded Adaptation | | | | | D r 240° | T | Ts D | 3 | | | Rd° | |
| Designation | D | r | Z | ap | L5 | L6 | Ts | D3 | T(1) | Ins | ert | kg |
| BLP D16-M08 | 16.00 | 8.00 | 3 | 12.00 | 23.00 | 40.50 | M08 | 13.00 | 10.0 | BLR D | 160 | 0.020 |
| BLP D20-M08 | 20.00 | 10.00 | 3 | 15.00 | 28.00 | 45.50 | M08 | 13.00 | 11.0 | BLR D | 200 | 0.029 |
| BLP D25-M12 | 25.00 | 12.50 | 3 | 18.75 | 35.00 | 57.00 | M12 | 21.00 | 17.0 | BLR D | 250 | 0.074 |
| BLP D30-M12 | 30.00 | 15.00 | 3 | 22.50 | 40.00 | 62.00 | M12 | 21.00 | 17.0 | BLR D | 300 | 0.096 |
| BLP D32-M12 | 32.00 | 16.00 | 3 | 24.00 | 40.00 | 62.00 | M12 | 23.00 | 19.0 | BLR D | 320 | 0.106 |
| BLP D32-M16 | 32.00 | 16.00 | 3 | 24.00 | 40.00 | 65.00 | M16 | 29.00 | 24.0 | BLR D | 320 | 0.143 |
| BLP D40-M16 | 40.00 | 20.00 | 3 | 30.00 | 53.00 | 78.00 | M16 | 30.00 | 24.0 | BLR D | 400 | 0.244 |
- For user guide, see pages 461-468
(1) Clamping wrench size For inserts, see pages: BLR (455) For holders, see pages: BT-ODP (FLEXFIT) (248) C#-ODP (FLEXFIT) (248) CAB M-M (FLEXFIT) (245) DIN69871-ODP (249) ER-ODP (249) HSK A-ODP (FLEXFIT) (250) HSK E-ODP (FLEXFIT) (251) RE MB-ODP (246) S M (245) S M-C-H (245) S M-CF (246)
Spare Parts
| Designation | | | | |
| BLP D16-M08 | SR M2.5X0.45-L6 IP7 | IP-7/51 | | |
| BLP D20-M08 | SR M3X0.5-L7.4 IP9 | IP-9/151 | | |
| BLP D25-M12 | SR M3.5X0.6-L8.5 IP10 | | BLD IP10/S7 | SW6-SD |
| BLP D30-M12 | SR M4X0.7-L11.5 IP15 | | BLD IP15/S7 | SW6-T |
| BLP D32-M12 | SR M4X0.7-L9.6 IP15 | | BLD IP15/S7 | SW6-T |
| BLP D32-M16 | SR M4X0.7-L9.6 IP15 | | BLD IP15/S7 | SW6-T |
| BLP D40-M16 | SR M5-14 IP20 | | BLD IP20/S7 | SW6-T |
