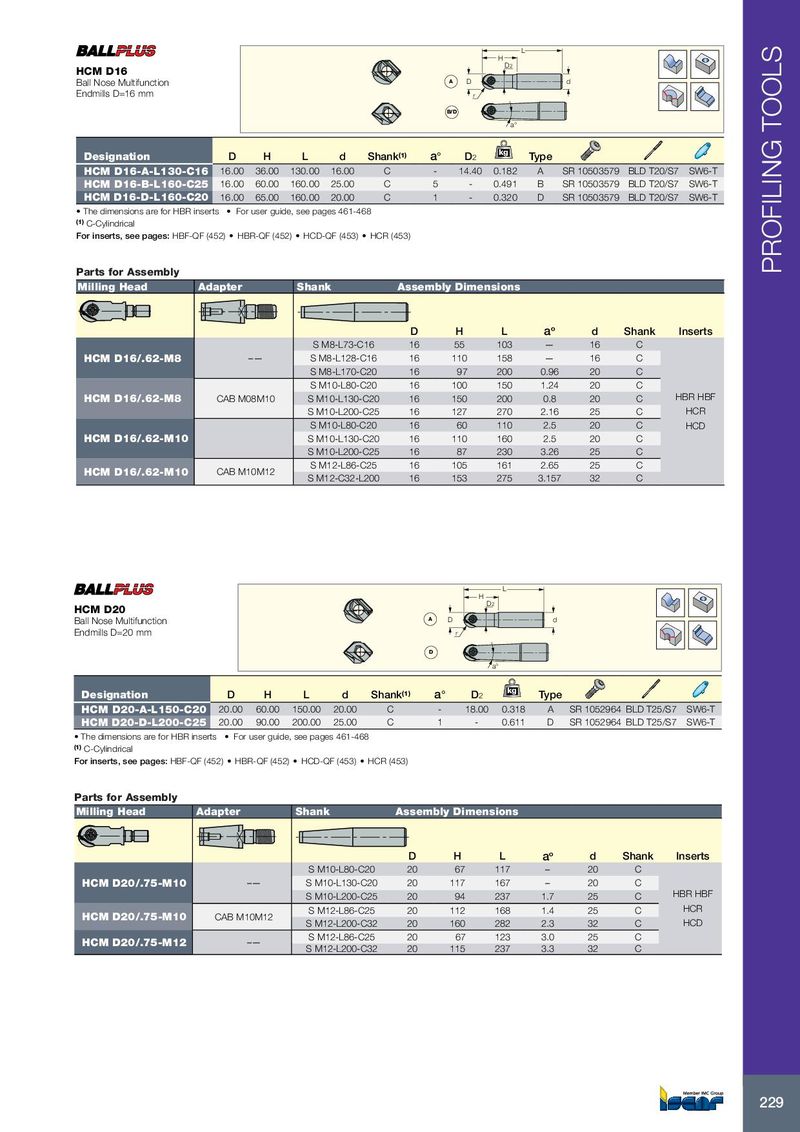

| HCM D16 | | | | | | A D | D2 H L | | d | | |
| Ball Nose Multifunction Endmills D=16 mm | | | | | | B/D r | a° | | | | |
| Designation | D | H | L | d | Shank(1) | a° D2 | kg | Type | | | |
| HCM D16-A-L130-C16 | 16.00 | 36.00 | 130.00 | 16.00 | C | - 14.4 | 0 0.182 | A | SR 10503579 | BLD T20/S7 | SW6-T |
| HCM D16-B-L160-C25 | 16.00 | 60.00 | 160.00 | 25.00 | C | 5 - | 0.491 | B | SR 10503579 | BLD T20/S7 | SW6-T |
| HCM D16-D-L160-C20 | 16.00 | 65.00 | 160.00 | 20.00 | C | 1 - | 0.320 | D | SR 10503579 | BLD T20/S7 | SW6-T |
- The dimensions are for HBR inserts
- For user guide, see pages 461-468
(1) C-Cylindrical For inserts, see pages: HBF-QF (452) HBR-QF (452) HCD-QF (453) HCR (453)
Parts for Assembly
| Milling Head | Adapter | Shank | Assem | bly Dime | nsions | | | | |
| | | D | H | L | aº | d | Shank | Inserts |
| | S M8-L73-C16 | 16 | 55 | 103 | — | 16 | C | |
| HCM D16/.62-M8 | –— | S M8-L128-C16 | 16 | 110 | 158 | — | 16 | C | |
| | S M8-L170-C20 | 16 | 97 | 200 | 0.96 | 20 | C | |
| | S M10-L80-C20 | 16 | 100 | 150 | 1.24 | 20 | C | |
| HCM D16/.62-M8 | CAB M08M10 | S M10-L130-C20 | 16 | 150 | 200 | 0.8 | 20 | C | HBR HBF |
| | S M10-L200-C25 | 16 | 127 | 270 | 2.16 | 25 | C | HCR |
| | S M10-L80-C20 | 16 | 60 | 110 | 2.5 | 20 | C | HCD |
| HCM D16/.62-M10 | | S M10-L130-C20 | 16 | 110 | 160 | 2.5 | 20 | C | |
| | S M10-L200-C25 | 16 | 87 | 230 | 3.26 | 25 | C | |
| HCM D16/62-M10 | CAB M10M12 | S M12-L86-C25 | 16 | 105 | 161 | 2.65 | 25 | C | |
| . | | S M12-C32-L200 | 16 | 153 | 275 | 3.157 | 32 | C | |
| HCM D20 Ball Nose Multifunction Endmills D=20 mm | | | | | | D2 D r H a° A D | L | d | | | |
| Designation | D | H | L | d S | hank(1) | a° D2 | kg | Type | | | |
| HCM D20-A-L150-C20 | 20.00 | 60.00 | 150.00 | 20.00 | C | - 18.00 | 0.318 | A | SR 1052964 | BLD T25/S7 | SW6-T |
| HCM D20-D-L200-C25 | 20.00 | 90.00 | 200.00 | 25.00 | C | 1 - | 0.611 | D | SR 1052964 | BLD T25/S7 | SW6-T |
- The dimensions are for HBR inserts
- For user guide, see pages 461-468
(1) C-Cylindrical For inserts, see pages: HBF-QF (452) HBR-QF (452) HCD-QF (453) HCR (453)
Parts for Assembly
| Milling Head | Adapter | Shank | Assem | bly Dime | nsions | | | | |
| | | D | H | L | aº | d | Shank | Inserts |
| | S M10-L80-C20 | 20 | 67 | 117 | – | 20 | C | |
| HCM D20/.75-M10 | –— | S M10-L130-C20 | 20 | 117 | 167 | – | 20 | C | |
| | S M10-L200-C25 | 20 | 94 | 237 | 1.7 | 25 | C | HBR HBF |
| HCM D20/75-M10 | CAB M10M12 | S M12-L86-C25 | 20 | 112 | 168 | 1.4 | 25 | C | HCR |
| . | | S M12-L200-C32 | 20 | 160 | 282 | 2.3 | 32 | C | HCD |
| HCM D20/.75-M12 | –— | S M12-L86-C25 | 20 | 67 | 123 | 3.0 | 25 | C | |
| | SM12-L200-C32 | 20 | 115 | 237 | 3.3 | 32 | C | |
