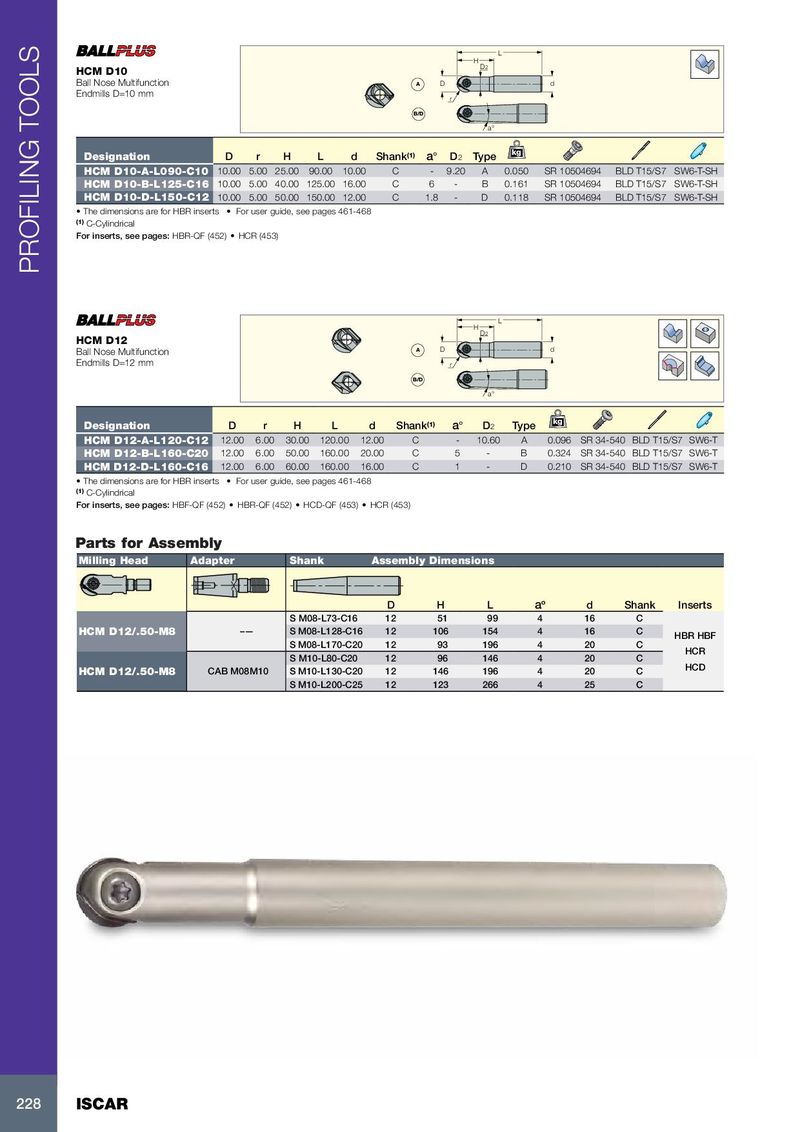

L H D2 HCM D10 Ball Nose Multifunction A D d Endmills D=10 mm r B/D a° kg Designation D r H L d Shank (1) a° D 2 Type HCM D10-A-L090-C10 10.00 5.00 25.00 90.00 10.00 C - 9.20 A 0.050 SR 10504694 BLD T15/S7 SW6-T-SH HCM D10-B-L125-C16 10.00 5.00 40.00 125.00 16.00 C 6 - B 0.161 SR 10504694 BLD T15/S7 SW6-T-SH HCM D10-D-L150-C12 10.00 5.00 50.00 150.00 12.00 C 1.8 - D 0.118 SR 10504694 BLD T15/S7 SW6-T-SH • The dimensions are for HBR inserts • For user guide, see pages 461-468 (1) C-Cylindrical For inserts, see pages: HBR-QF (452) • HCR (453) PROFILING TOOLS L H D2 HCM D12 Ball Nose Multifunction A D d Endmills D=12 mm r B/D a° Designation D r H L d Shank (1) kg a° D 2 Type HCM D12-A-L120-C12 12.00 6.00 30.00 120.00 12.00 C - 10.60 A 0.096 SR 34-540 BLD T15/S7 SW6-T HCM D12-B-L160-C20 12.00 6.00 50.00 160.00 20.00 C 5 - B 0.324 SR 34-540 BLD T15/S7 SW6-T HCM D12-D-L160-C16 12.00 6.00 60.00 160.00 16.00 C 1 - D 0.210 SR 34-540 BLD T15/S7 SW6-T • The dimensions are for HBR inserts • For user guide, see pages 461-468 (1) C-Cylindrical For inserts, see pages: HBF-QF (452) • HBR-QF (452) • HCD-QF (453) • HCR (453) Parts for Assembly Milling Head Adapter Shank Assembly Dimensions D H L aº d Shank Inserts S M08-L73-C16 12 51 99 4 16 C HCM D12/.50-M8 –— S M08-L128-C16 12 106 154 4 16 C HBR HBF S M08-L170-C20 12 93 196 4 20 C HCR S M10-L80-C20 12 96 146 4 20 C HCD HCM D12/.50-M8 CAB M08M10 S M10-L130-C20 12 146 196 4 20 C S M10-L200-C25 12 123 266 4 25 C 228 ISCAR
