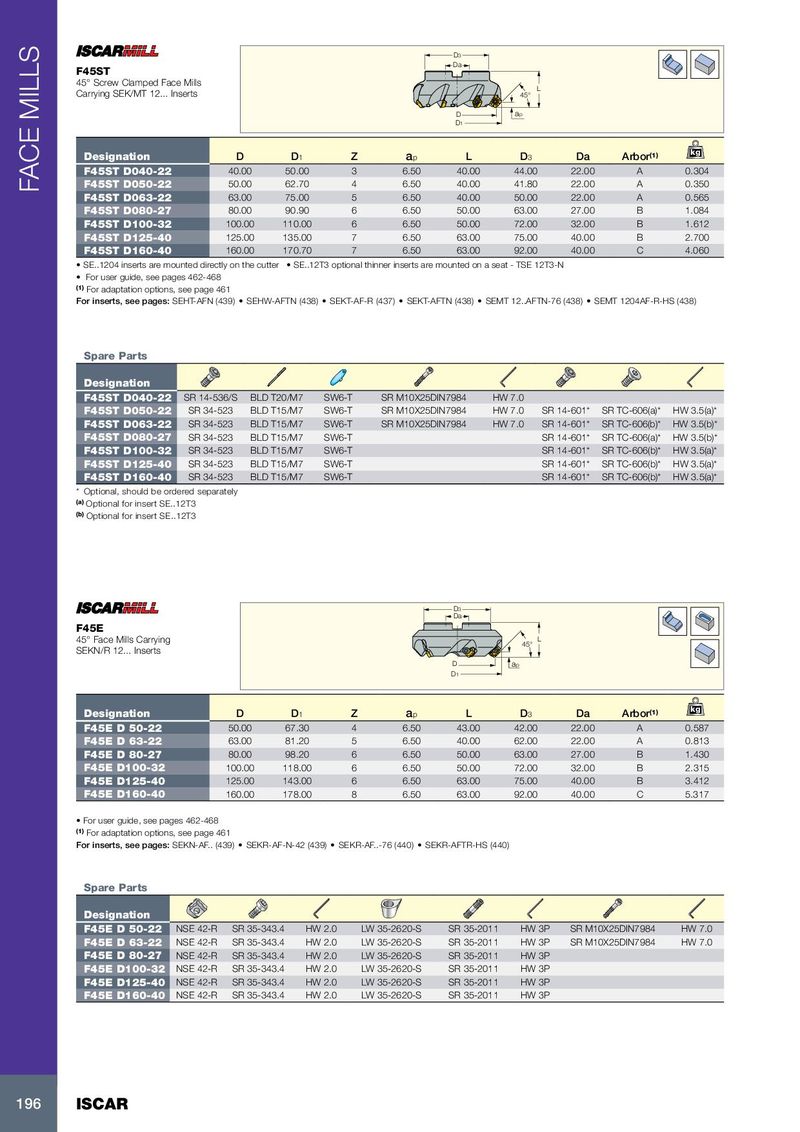

Каталог Iscar вращающийся инструмент 2017 - страница 200
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| F45ST ° | Da D3 | ||||||||
| 45 Screw Clamped Face Mills Carrying SEK/MT 12... Inserts | D1 D | L 45° ap | |||||||
| Designation | D | D1 | Z | ap | L | D3 | Da | Arbor( | 1) kg |
| F45ST D040-22 | 40.00 | 50.00 | 3 | 6.50 | 40.00 | 44.00 | 22.00 | A | 0.304 |
| F45ST D050-22 | 50.00 | 62.70 | 4 | 6.50 | 40.00 | 41.80 | 22.00 | A | 0.350 |
| F45ST D063-22 | 63.00 | 75.00 | 5 | 6.50 | 40.00 | 50.00 | 22.00 | A | 0.565 |
| F45ST D080-27 | 80.00 | 90.90 | 6 | 6.50 | 50.00 | 63.00 | 27.00 | B | 1.084 |
| F45ST D100-32 | 100.00 | 110.00 | 6 | 6.50 | 50.00 | 72.00 | 32.00 | B | 1.612 |
| F45ST D125-40 | 125.00 | 135.00 | 7 | 6.50 | 63.00 | 75.00 | 40.00 | B | 2.700 |
| F45ST D160-40 | 160.00 | 170.70 | 7 | 6.50 | 63.00 | 92.00 | 40.00 | C | 4.060 |
- SE..1204 inserts are mounted directly on the cutter
- SE..12T3 optional thinner inserts are mounted on a seat - TSE 12T3-N
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: SEHT-AFN (439) SEHW-AFTN (438) SEKT-AF-R (437) SEKT-AFTN (438) SEMT 12..AFTN-76 (438) SEMT 1204AF-R-HS (438)
Spare Parts
| Designation | ||||||||
| F45ST D040-22 | SR 14-536/S | BLD T20/M7 | SW6-T | SR M10X25DIN7984 | HW 7.0 | |||
| F45ST D050-22 | SR 34-523 | BLD T15/M7 | SW6-T | SR M10X25DIN7984 | HW 7.0 | SR 14-601 | SR TC-606(a) | HW 3.5(a) |
| F45ST D063-22 | SR 34-523 | BLD T15/M7 | SW6-T | SR M10X25DIN7984 | HW 7.0 | SR 14-601 | SR TC-606(b) | HW 3.5(b) |
| F45ST D080-27 | SR 34-523 | BLD T15/M7 | SW6-T | SR 14-601 | SR TC-606(a) | HW 3.5(b) | ||
| F45ST D100-32 | SR 34-523 | BLD T15/M7 | SW6-T | SR 14-601 | SR TC-606(b) | HW 3.5(a) | ||
| F45ST D125-40 | SR 34-523 | BLD T15/M7 | SW6-T | SR 14-601 | SR TC-606(b) | HW 3.5(a) | ||
| F45ST D160-40 | SR 34-523 | BLD T15/M7 | SW6-T | SR 14-601 | SR TC-606(b) | HW 3.5(a) |
* Optional, should be ordered separately (a) Optional for insert SE..12T3 (b) Optional for insert SE..12T3
| F45E | Da D3 | ||||||||
| 45° Face Mills Carrying SEKN/R 12... Inserts | D D1 | ap 45° L | |||||||
| Designation | D | D1 | Z | ap | L | D3 | Da | Arbor( | 1) kg |
| F45E D 50-22 | 50.00 | 67.30 | 4 | 6.50 | 43.00 | 42.00 | 22.00 | A | 0.587 |
| F45E D 63-22 | 63.00 | 81.20 | 5 | 6.50 | 40.00 | 62.00 | 22.00 | A | 0.813 |
| F45E D 80-27 | 80.00 | 98.20 | 6 | 6.50 | 50.00 | 63.00 | 27.00 | B | 1.430 |
| F45E D100-32 | 100.00 | 118.00 | 6 | 6.50 | 50.00 | 72.00 | 32.00 | B | 2.315 |
| F45E D125-40 | 125.00 | 143.00 | 6 | 6.50 | 63.00 | 75.00 | 40.00 | B | 3.412 |
| F45E D160-40 | 160.00 | 178.00 | 8 | 6.50 | 63.00 | 92.00 | 40.00 | C | 5.317 |
- For user guide, see pages 462-468
(1) For adaptation options, see page 461 For inserts, see pages: SEKN-AF.. (439) SEKR-AF-N-42 (439) SEKR-AF..-76 (440) SEKR-AFTR-HS (440)
Spare Parts
| Designation | ||||||||
| F45E D 50-22 | NSE 42-R | SR 35-343.4 | HW 2.0 | LW 35-2620-S | SR 35-2011 | HW 3P | SR M10X25DIN7984 | HW 7.0 |
| F45E D 63-22 | NSE 42-R | SR 35-343.4 | HW 2.0 | LW 35-2620-S | SR 35-2011 | HW 3P | SR M10X25DIN7984 | HW 7.0 |
| F45E D 80-27 | NSE 42-R | SR 35-343.4 | HW 2.0 | LW 35-2620-S | SR 35-2011 | HW 3P | ||
| F45E D100-32 | NSE 42-R | SR 35-343.4 | HW 2.0 | LW 35-2620-S | SR 35-2011 | HW 3P | ||
| F45E D125-40 | NSE 42-R | SR 35-343.4 | HW 2.0 | LW 35-2620-S | SR 35-2011 | HW 3P | ||
| F45E D160-40 | NSE 42-R | SR 35-343.4 | HW 2.0 | LW 35-2620-S | SR 35-2011 | HW 3P |
