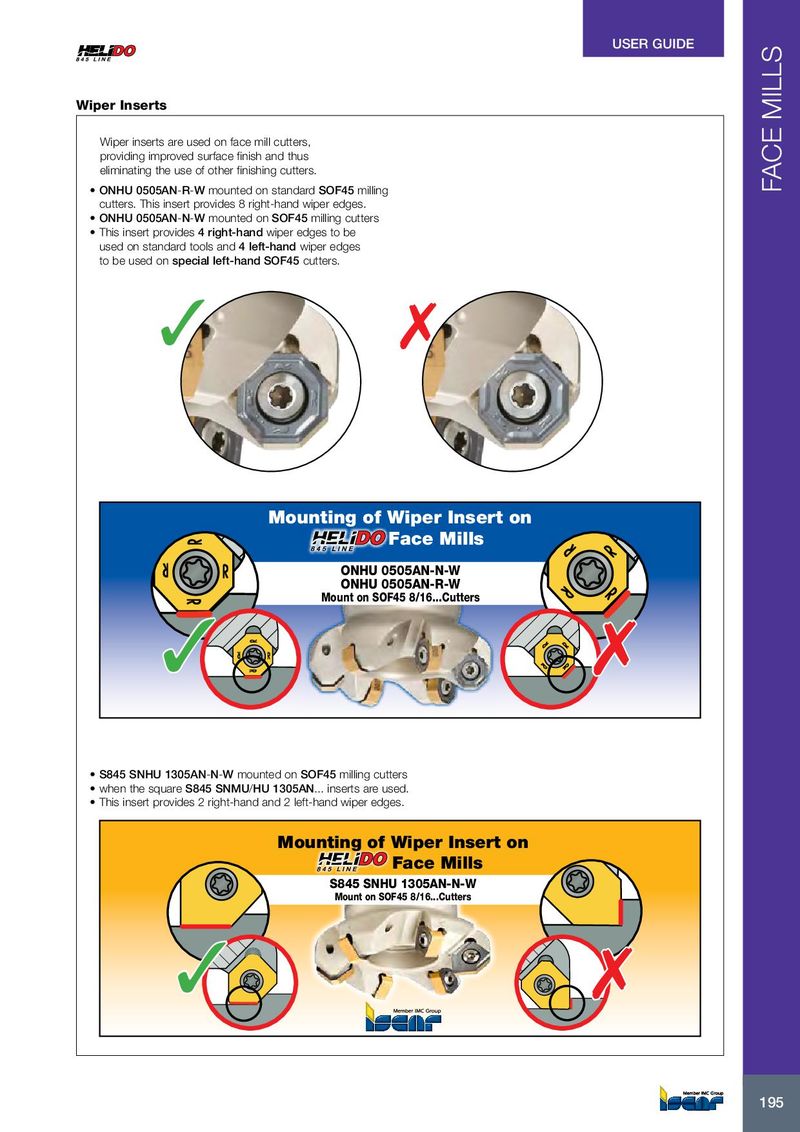

Wiper Inserts Wiper inserts are used on face mill cutters, providing improved surface finish and thus eliminating the use of other finishing cutters.

• ONHU 0505AN-R-W mounted on standard SOF45 milling cutters. This insert provides 8 right-hand wiper edges.
• ONHU 0505AN-N-W mounted on SOF45 milling cutters
• This insert provides 4 right-hand wiper edges to be used on standard tools and 4 left-hand wiper edges to be used on special left-hand SOF45 cutters.

Mounting of Wiper Insert on

Face Mills

ONHU 0505AN-N-W ONHU 0505AN-R-W

✓ Mount on SOF45 8/16...Cutters ✗

• S845 SNHU 1305AN-N-W mounted on SOF45 milling cutters
• when the square S845 SNMU/HU 1305AN... inserts are used.
• This insert provides 2 right-hand and 2 left-hand wiper edges.

Mounting of Wiper Insert on

Face Mills

S845 SNHU 1305AN-N-W Mount on SOF45 8/16...Cutters
