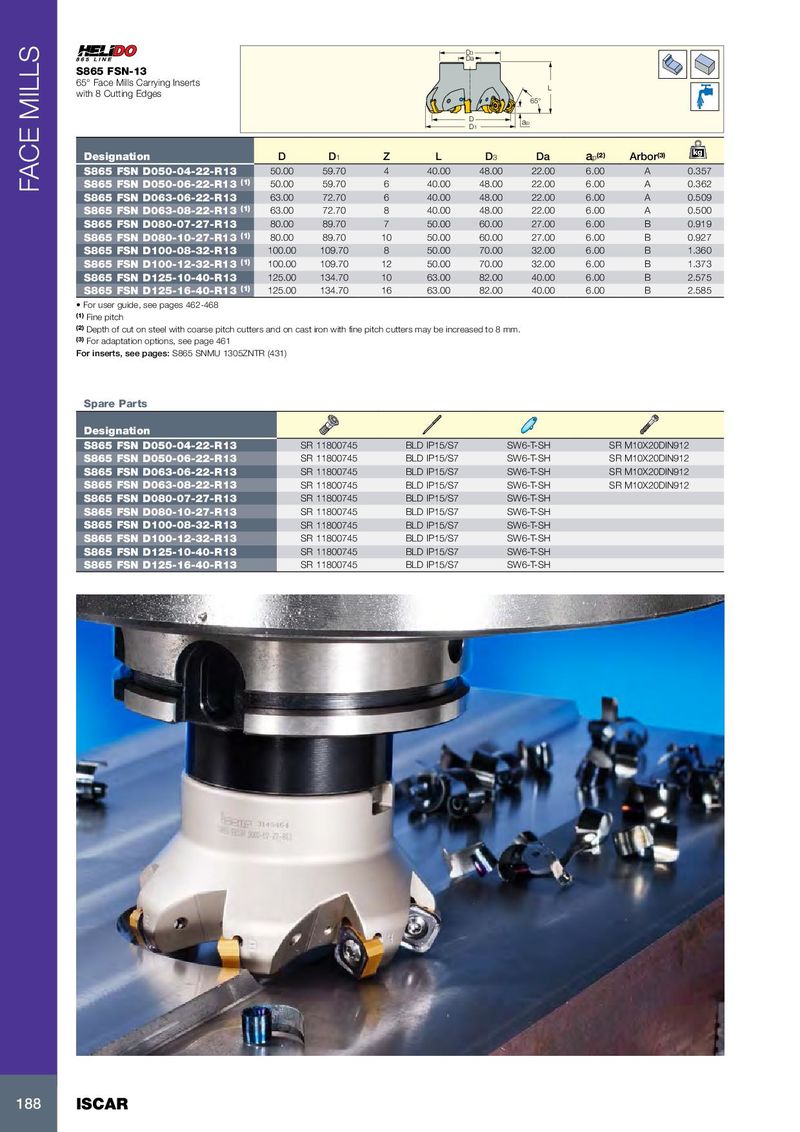

Каталог Iscar вращающийся инструмент 2017 - страница 192
Навигация
Каталог Iscar токарные пластины ISO 2022
Каталог Iscar инструмент для фрезерования
Каталог Iscar решения для глубокого сверления
Каталог Iscar полирующие фрезы
Новые режущие инструменты Iscar 2026
Каталог Iscar новые продукты 2018
| Da D3 | ||||||||
| S865 FSN-13 | ||||||||
| 65° Face Mills Carrying Inserts with 8 Cutting Edges | D1 D | ap 65° L | ||||||
| Designation | D | D1 | Z | L | D3 | Da | ap(2) | Arbor(3) kg |
| S865 FSN D050-04-22-R13 | 50.00 | 59.70 | 4 | 40.00 | 48.00 | 22.00 | 6.00 | A 0.357 |
| S865 FSN D050-06-22-R13(1) | 50.00 | 59.70 | 6 | 40.00 | 48.00 | 22.00 | 6.00 | A 0.362 |
| S865 FSN D063-06-22-R13 | 63.00 | 72.70 | 6 | 40.00 | 48.00 | 22.00 | 6.00 | A 0.509 |
| S865 FSN D063-08-22-R13(1) | 63.00 | 72.70 | 8 | 40.00 | 48.00 | 22.00 | 6.00 | A 0.500 |
| S865 FSN D080-07-27-R13 | 80.00 | 89.70 | 7 | 50.00 | 60.00 | 27.00 | 6.00 | B 0.919 |
| S865 FSN D080-10-27-R13(1) | 80.00 | 89.70 | 10 | 50.00 | 60.00 | 27.00 | 6.00 | B 0.927 |
| S865 FSN D100-08-32-R13 | 100.00 | 109.70 | 8 | 50.00 | 70.00 | 32.00 | 6.00 | B 1.360 |
| S865 FSN D100-12-32-R13(1) | 100.00 | 109.70 | 12 | 50.00 | 70.00 | 32.00 | 6.00 | B 1.373 |
| S865 FSN D125-10-40-R13 | 125.00 | 134.70 | 10 | 63.00 | 82.00 | 40.00 | 6.00 | B 2.575 |
| S865 FSN D125-16-40-R13(1) | 125.00 | 134.70 | 16 | 63.00 | 82.00 | 40.00 | 6.00 | B 2.585 |
- For user guide, see pages 462-468
(1) Fine pitch (2) Depth of cut on steel with coarse pitch cutters and on cast iron with fine pitch cutters may be increased to 8 mm. (3) For adaptation options, see page 461 For inserts, see pages: S865 SNMU 1305ZNTR (431)
Spare Parts
| Designation | ||||
| S865 FSN D050-04-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X20DIN912 |
| S865 FSN D050-06-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X20DIN912 |
| S865 FSN D063-06-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X20DIN912 |
| S865 FSN D063-08-22-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | SR M10X20DIN912 |
| S865 FSN D080-07-27-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S865 FSN D080-10-27-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S865 FSN D100-08-32-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S865 FSN D100-12-32-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S865 FSN D125-10-40-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH | |
| S865 FSN D125-16-40-R13 | SR 11800745 | BLD IP15/S7 | SW6-T-SH |
