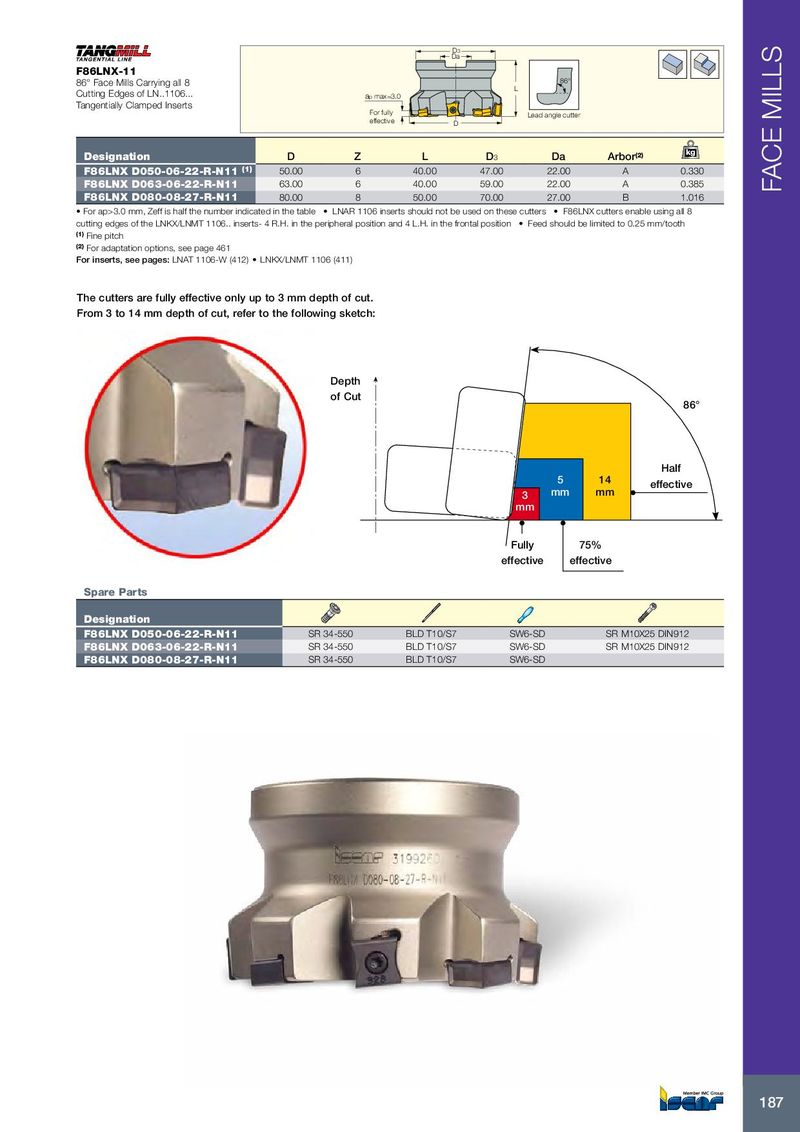

| D D | a 3 | |||||
| F86LNX-11 | ||||||
| 86° Face Mills Carrying all 8 Cutting Edges of LN..1106... Tangentially Clamped Inserts | D apmax=3.0 For fully effective | L | Lead angle cutter 86° | |||
| Designation | D | Z L | D3 | Da | Arbor(2) kg | |
| F86LNX D050-06-22-R-N11(1) | 50.00 | 6 40.00 | 47.00 | 22.00 | A 0.330 | |
| F86LNX D063-06-22-R-N11 | 63.00 | 6 40.00 | 59.00 | 22.00 | A 0.385 | |
| F86LNX D080-08-27-R-N11 | 80.00 | 8 50.00 | 70.00 | 27.00 | B 1.016 |
- For ap>3.0 mm, Zeff is half the number indicated in the table
- LNAR 1106 inserts should not be used on these cutters
- F86LNX cutters enable using all 8
cutting edges of the LNKX/LNMT 1106.. inserts- 4 R.H. in the peripheral position and 4 L.H. in the frontal position Feed should be limited to 0.25 mm/tooth (1) Fine pitch (2) For adaptation options, see page 461 For inserts, see pages: LNAT 1106-W (412) LNKX/LNMT 1106 (411)
The cutters are fully effective only up to 3 mm depth of cut. From 3 to 14 mm depth of cut, refer to the following sketch:
Depth
of Cut
86°
Half
| 5 | 14 | effective | |
| 3 | mm | mm |
mm
Fully 75%
effective effective
Spare Parts
Designation
| F86LNX D050-06-22-R-N11 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| F86LNX D063-06-22-R-N11 | SR 34-550 | BLD T10/S7 | SW6-SD | SR M10X25 DIN912 |
| F86LNX D080-08-27-R-N11 | SR 34-550 | BLD T10/S7 | SW6-SD |
