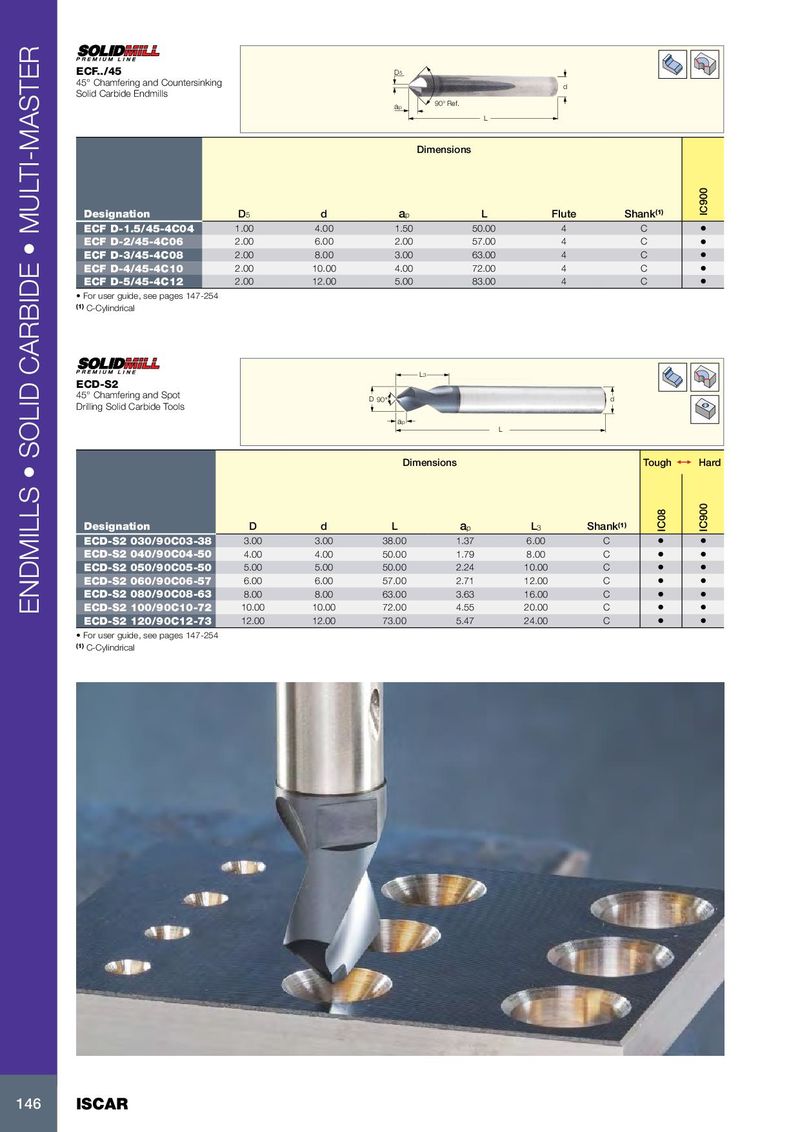

ECF../45 D5 45° Chamfering and Countersinking d Solid Carbide Endmills ap 90° Ref. L Dimensions Designation D 5 d a p L Flute Shank (1) IC900 ECF D-1.5/45-4C04 1.00 4.00 1.50 50.00 4 C • ECF D-2/45-4C06 2.00 6.00 2.00 57.00 4 C • ECF D-3/45-4C08 2.00 8.00 3.00 63.00 4 C • ECF D-4/45-4C10 2.00 10.00 4.00 72.00 4 C • ECF D-5/45-4C12 2.00 12.00 5.00 83.00 4 C • • For user guide, see pages 147-254 (1) C-Cylindrical L3 ECD-S2 45° Chamfering and Spot D 90° d Drilling Solid Carbide Tools ap L Dimensions Tough 1  Hard Designation D d L a p L 3 Shank (1) IC08 IC900 ECD-S2 030/90C03-38 3.00 3.00 38.00 1.37 6.00 C • • ECD-S2 040/90C04-50 4.00 4.00 50.00 1.79 8.00 C • • ECD-S2 050/90C05-50 5.00 5.00 50.00 2.24 10.00 C • • ECD-S2 060/90C06-57 6.00 6.00 57.00 2.71 12.00 C • • ECD-S2 080/90C08-63 8.00 8.00 63.00 3.63 16.00 C • • ENDMILLS • SOLID CARBIDE • MULTI-MASTER ECD-S2 100/90C10-72 10.00 10.00 72.00 4.55 20.00 C • • ECD-S2 120/90C12-73 12.00 12.00 73.00 5.47 24.00 C • • • For user guide, see pages 147-254 (1) C-Cylindrical 146 ISCAR
