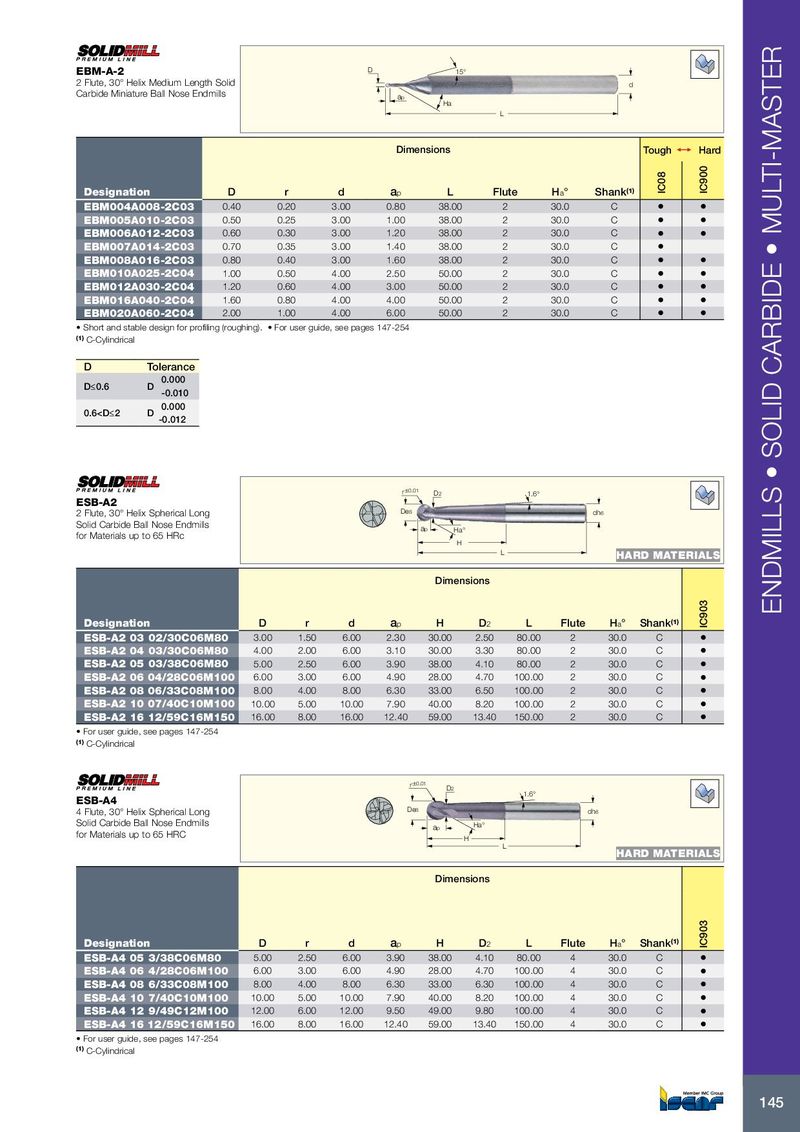

EBM-A-2 D 15° 2 Flute, 30° Helix Medium Length Solid d Carbide Miniature Ball Nose Endmills ap Ha L Dimensions Tough 1  Hard Designation D r d a p L Flute H a ° Shank (1) IC08 IC900 EBM004A008-2C03 0.40 0.20 3.00 0.80 38.00 2 30.0 C • • EBM005A010-2C03 0.50 0.25 3.00 1.00 38.00 2 30.0 C • • EBM006A012-2C03 0.60 0.30 3.00 1.20 38.00 2 30.0 C • • EBM007A014-2C03 0.70 0.35 3.00 1.40 38.00 2 30.0 C • EBM008A016-2C03 0.80 0.40 3.00 1.60 38.00 2 30.0 C • • EBM010A025-2C04 1.00 0.50 4.00 2.50 50.00 2 30.0 C • • EBM012A030-2C04 1.20 0.60 4.00 3.00 50.00 2 30.0 C • • EBM016A040-2C04 1.60 0.80 4.00 4.00 50.00 2 30.0 C • • EBM020A060-2C04 2.00 1.00 4.00 6.00 50.00 2 30.0 C • • • Short and stable design for profiling (roughing). • For user guide, see pages 147-254 (1) C-Cylindrical D Tolerance 0.000 D≤0.6 D -0.010 0.000 0.6
