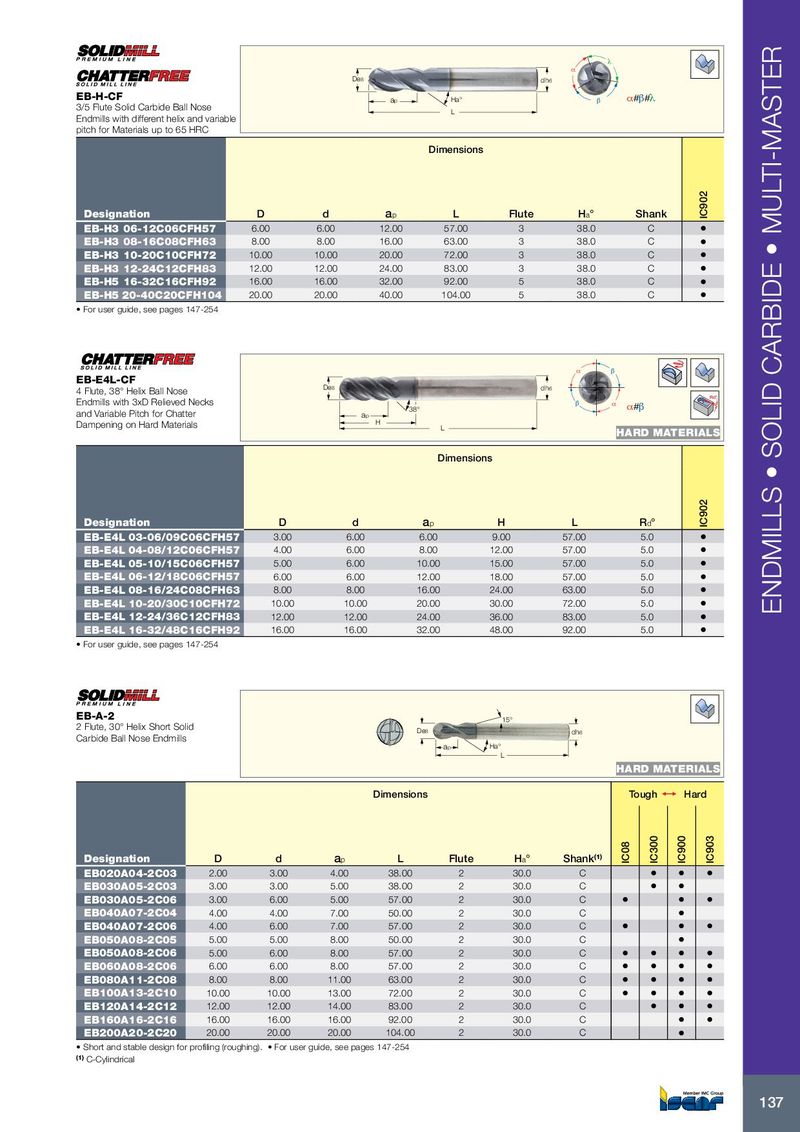

λ α De8 dh6 EB-H-CF ap Ha° β α#β#λ 3/5 Flute Solid Carbide Ball Nose L Endmills with different helix and variable pitch for Materials up to 65 HRC Dimensions Designation D d a p L Flute H a ° Shank IC902 EB-H3 06-12C06CFH57 6.00 6.00 12.00 57.00 3 38.0 C • EB-H3 08-16C08CFH63 8.00 8.00 16.00 63.00 3 38.0 C • EB-H3 10-20C10CFH72 10.00 10.00 20.00 72.00 3 38.0 C • EB-H3 12-24C12CFH83 12.00 12.00 24.00 83.00 3 38.0 C • EB-H5 16-32C16CFH92 16.00 16.00 32.00 92.00 5 38.0 C • EB-H5 20-40C20CFH104 20.00 20.00 40.00 104.00 5 38.0 C • • For user guide, see pages 147-254 α β EB-E4L-CF De8 4 Flute, 38° Helix Ball Nose dh6 Rd° Endmills with 3xD Relieved Necks β α 38° α#β and Variable Pitch for Chatter ap Dampening on Hard Materials H L HARD MATERIALS Dimensions Designation D d a p H L R d ° IC902 EB-E4L 03-06/09C06CFH57 3.00 6.00 6.00 9.00 57.00 5.0 • EB-E4L 04-08/12C06CFH57 4.00 6.00 8.00 12.00 57.00 5.0 • EB-E4L 05-10/15C06CFH57 5.00 6.00 10.00 15.00 57.00 5.0 • EB-E4L 06-12/18C06CFH57 6.00 6.00 12.00 18.00 57.00 5.0 • EB-E4L 08-16/24C08CFH63 8.00 8.00 16.00 24.00 63.00 5.0 • EB-E4L 10-20/30C10CFH72 10.00 10.00 20.00 30.00 72.00 5.0 • ENDMILLS • SOLID CARBIDE • MULTI-MASTER EB-E4L 12-24/36C12CFH83 12.00 12.00 24.00 36.00 83.00 5.0 • EB-E4L 16-32/48C16CFH92 16.00 16.00 32.00 48.00 92.00 5.0 • • For user guide, see pages 147-254 EB-A-2 15° 2 Flute, 30° Helix Short Solid De8 dh6 Carbide Ball Nose Endmills ap Ha° L HARD MATERIALS Dimensions Tough 1  Hard Designation D d a p L Flute H a ° Shank (1) IC08 IC300 IC900 IC903 EB020A04-2C03 2.00 3.00 4.00 38.00 2 30.0 C • • • EB030A05-2C03 3.00 3.00 5.00 38.00 2 30.0 C • • EB030A05-2C06 3.00 6.00 5.00 57.00 2 30.0 C • • • EB040A07-2C04 4.00 4.00 7.00 50.00 2 30.0 C • EB040A07-2C06 4.00 6.00 7.00 57.00 2 30.0 C • • • EB050A08-2C05 5.00 5.00 8.00 50.00 2 30.0 C • EB050A08-2C06 5.00 6.00 8.00 57.00 2 30.0 C • • • • EB060A08-2C06 6.00 6.00 8.00 57.00 2 30.0 C • • • • EB080A11-2C08 8.00 8.00 11.00 63.00 2 30.0 C • • • • EB100A13-2C10 10.00 10.00 13.00 72.00 2 30.0 C • • • • EB120A14-2C12 12.00 12.00 14.00 83.00 2 30.0 C • • • EB160A16-2C16 16.00 16.00 16.00 92.00 2 30.0 C • • EB200A20-2C20 20.00 20.00 20.00 104.00 2 30.0 C • • Short and stable design for profiling (roughing). • For user guide, see pages 147-254 (1) C-Cylindrical 137
