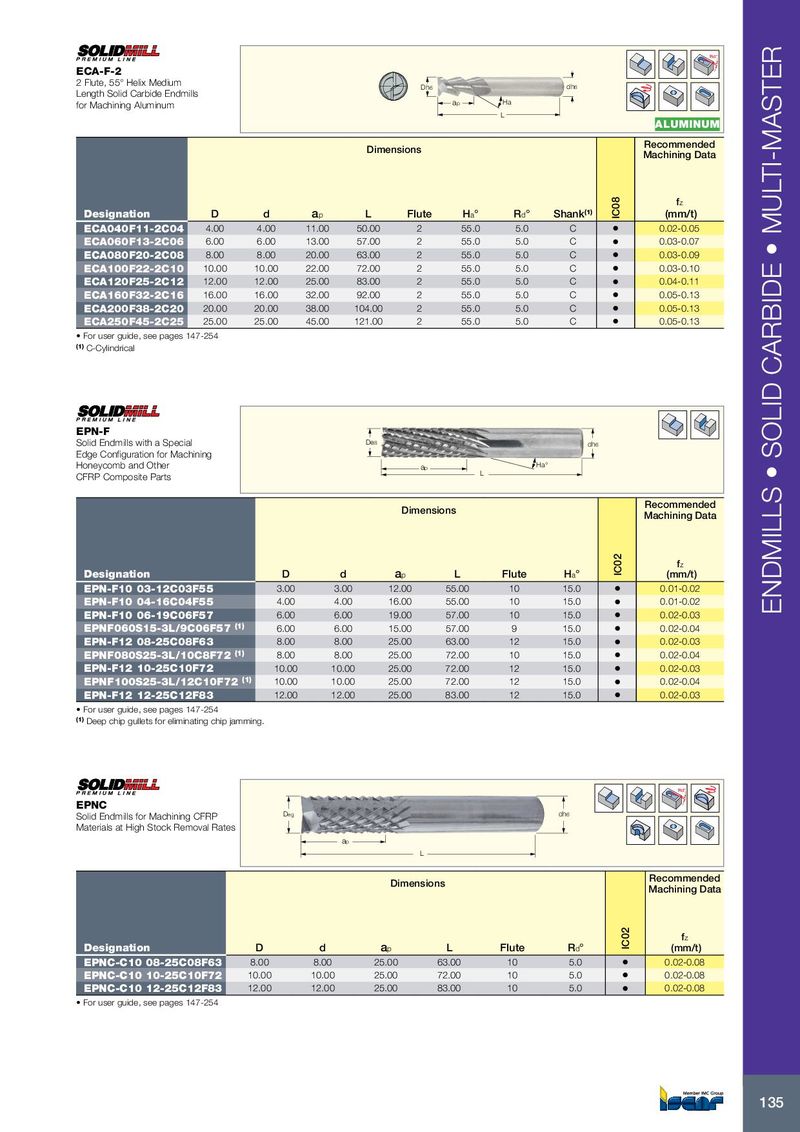

Rd° ECA-F-2 2 Flute, 55° Helix Medium Dh6 dh6 Length Solid Carbide Endmills for Machining Aluminum ap Ha L ALUMINUM Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 (mm/t) ECA040F11-2C04 4.00 4.00 11.00 50.00 2 55.0 5.0 C • 0.02-0.05 ECA060F13-2C06 6.00 6.00 13.00 57.00 2 55.0 5.0 C • 0.03-0.07 ECA080F20-2C08 8.00 8.00 20.00 63.00 2 55.0 5.0 C • 0.03-0.09 ECA100F22-2C10 10.00 10.00 22.00 72.00 2 55.0 5.0 C • 0.03-0.10 ECA120F25-2C12 12.00 12.00 25.00 83.00 2 55.0 5.0 C • 0.04-0.11 ECA160F32-2C16 16.00 16.00 32.00 92.00 2 55.0 5.0 C • 0.05-0.13 ECA200F38-2C20 20.00 20.00 38.00 104.00 2 55.0 5.0 C • 0.05-0.13 ECA250F45-2C25 25.00 25.00 45.00 121.00 2 55.0 5.0 C • 0.05-0.13 • For user guide, see pages 147-254 (1) C-Cylindrical EPN-F Solid Endmills with a Special De8 dh6 Edge Configuration for Machining Honeycomb and Other ap Ha° CFRP Composite Parts L Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° IC02 (mm/t) EPN-F10 03-12C03F55 3.00 3.00 12.00 55.00 10 15.0 • 0.01-0.02 EPN-F10 04-16C04F55 4.00 4.00 16.00 55.00 10 15.0 • 0.01-0.02 ENDMILLS • SOLID CARBIDE • MULTI-MASTER EPN-F10 06-19C06F57 6.00 6.00 19.00 57.00 10 15.0 • 0.02-0.03 EPNF060S15-3L/9C06F57 (1) 6.00 6.00 15.00 57.00 9 15.0 • 0.02-0.04 EPN-F12 08-25C08F63 8.00 8.00 25.00 63.00 12 15.0 • 0.02-0.03 EPNF080S25-3L/10C8F72 (1) 8.00 8.00 25.00 72.00 10 15.0 • 0.02-0.04 EPN-F12 10-25C10F72 10.00 10.00 25.00 72.00 12 15.0 • 0.02-0.03 EPNF100S25-3L/12C10F72 (1) 10.00 10.00 25.00 72.00 12 15.0 • 0.02-0.04 EPN-F12 12-25C12F83 12.00 12.00 25.00 83.00 12 15.0 • 0.02-0.03 • For user guide, see pages 147-254 (1) Deep chip gullets for eliminating chip jamming. Rd° EPNC Solid Endmills for Machining CFRP Deg dh6 Materials at High Stock Removal Rates ap L Recommended Dimensions Machining Data f z Designation D d a p L Flute R d ° IC02 (mm/t) EPNC-C10 08-25C08F63 8.00 8.00 25.00 63.00 10 5.0 • 0.02-0.08 EPNC-C10 10-25C10F72 10.00 10.00 25.00 72.00 10 5.0 • 0.02-0.08 EPNC-C10 12-25C12F83 12.00 12.00 25.00 83.00 10 5.0 • 0.02-0.08 • For user guide, see pages 147-254 135
