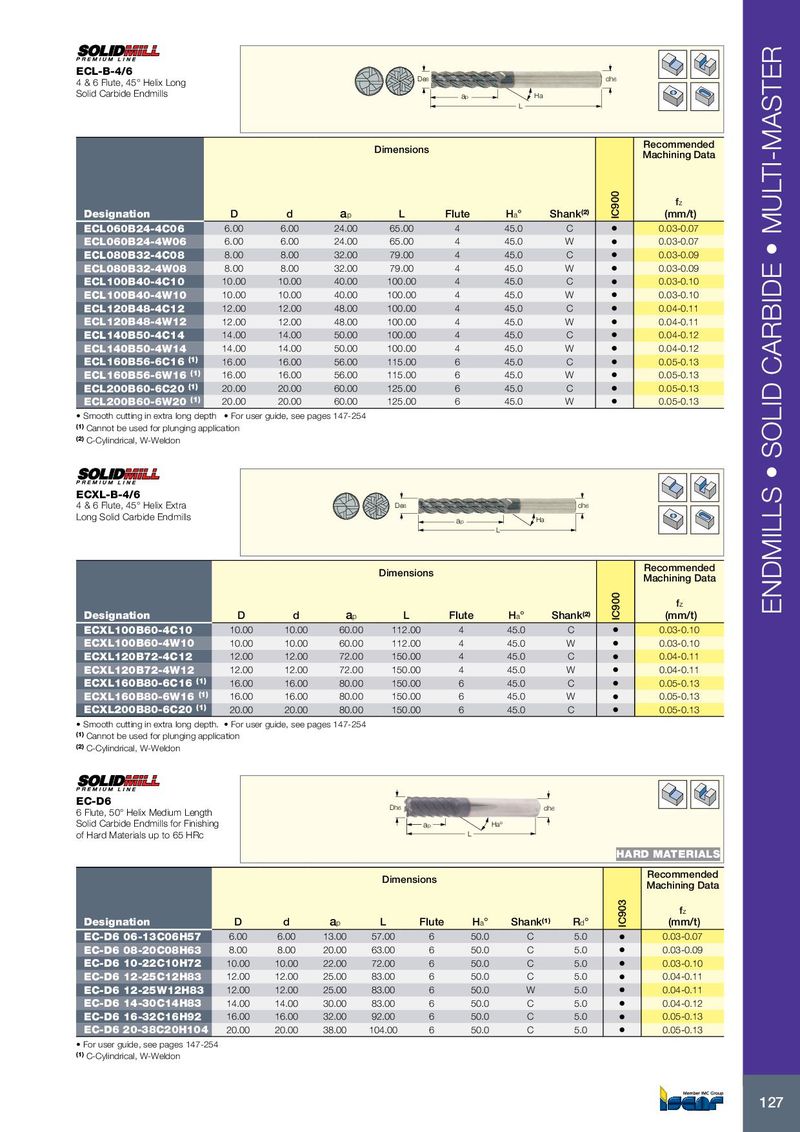

Каталог Iscar вращающийся инструмент 2017 - страница 131

ECL-B-4/6 De8 dh6 4 & 6 Flute, 45° Helix Long Solid Carbide Endmills ap Ha L Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° Shank (2) IC900 (mm/t) ECL060B24-4C06 6.00 6.00 24.00 65.00 4 45.0 C • 0.03-0.07 ECL060B24-4W06 6.00 6.00 24.00 65.00 4 45.0 W • 0.03-0.07 ECL080B32-4C08 8.00 8.00 32.00 79.00 4 45.0 C • 0.03-0.09 ECL080B32-4W08 8.00 8.00 32.00 79.00 4 45.0 W • 0.03-0.09 ECL100B40-4C10 10.00 10.00 40.00 100.00 4 45.0 C • 0.03-0.10 ECL100B40-4W10 10.00 10.00 40.00 100.00 4 45.0 W • 0.03-0.10 ECL120B48-4C12 12.00 12.00 48.00 100.00 4 45.0 C • 0.04-0.11 ECL120B48-4W12 12.00 12.00 48.00 100.00 4 45.0 W • 0.04-0.11 ECL140B50-4C14 14.00 14.00 50.00 100.00 4 45.0 C • 0.04-0.12 ECL140B50-4W14 14.00 14.00 50.00 100.00 4 45.0 W • 0.04-0.12 ECL160B56-6C16 (1) 16.00 16.00 56.00 115.00 6 45.0 C • 0.05-0.13 ECL160B56-6W16 (1) 16.00 16.00 56.00 115.00 6 45.0 W • 0.05-0.13 ECL200B60-6C20 (1) 20.00 20.00 60.00 125.00 6 45.0 C • 0.05-0.13 ECL200B60-6W20 (1) 20.00 20.00 60.00 125.00 6 45.0 W • 0.05-0.13 • Smooth cutting in extra long depth • For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) C-Cylindrical, W-Weldon ECXL-B-4/6 4 & 6 Flute, 45° Helix Extra De8 dh6 Long Solid Carbide Endmills ap Ha L Recommended Dimensions Machining Data f z ENDMILLS • SOLID CARBIDE • MULTI-MASTER Designation D d a p L Flute H a ° Shank (2) IC900 (mm/t) ECXL100B60-4C10 10.00 10.00 60.00 112.00 4 45.0 C • 0.03-0.10 ECXL100B60-4W10 10.00 10.00 60.00 112.00 4 45.0 W • 0.03-0.10 ECXL120B72-4C12 12.00 12.00 72.00 150.00 4 45.0 C • 0.04-0.11 ECXL120B72-4W12 12.00 12.00 72.00 150.00 4 45.0 W • 0.04-0.11 ECXL160B80-6C16 (1) 16.00 16.00 80.00 150.00 6 45.0 C • 0.05-0.13 ECXL160B80-6W16 (1) 16.00 16.00 80.00 150.00 6 45.0 W • 0.05-0.13 ECXL200B80-6C20 (1) 20.00 20.00 80.00 150.00 6 45.0 C • 0.05-0.13 • Smooth cutting in extra long depth. • For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) C-Cylindrical, W-Weldon EC-D6 Dh6 dh6 6 Flute, 50° Helix Medium Length Solid Carbide Endmills for Finishing ap Haº of Hard Materials up to 65 HRc L HARD MATERIALS Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° Shank (1) R d ° IC903 (mm/t) EC-D6 06-13C06H57 6.00 6.00 13.00 57.00 6 50.0 C 5.0 • 0.03-0.07 EC-D6 08-20C08H63 8.00 8.00 20.00 63.00 6 50.0 C 5.0 • 0.03-0.09 EC-D6 10-22C10H72 10.00 10.00 22.00 72.00 6 50.0 C 5.0 • 0.03-0.10 EC-D6 12-25C12H83 12.00 12.00 25.00 83.00 6 50.0 C 5.0 • 0.04-0.11 EC-D6 12-25W12H83 12.00 12.00 25.00 83.00 6 50.0 W 5.0 • 0.04-0.11 EC-D6 14-30C14H83 14.00 14.00 30.00 83.00 6 50.0 C 5.0 • 0.04-0.12 EC-D6 16-32C16H92 16.00 16.00 32.00 92.00 6 50.0 C 5.0 • 0.05-0.13 EC-D6 20-38C20H104 20.00 20.00 38.00 104.00 6 50.0 C 5.0 • 0.05-0.13 • For user guide, see pages 147-254 (1) C-Cylindrical, W-Weldon 127
