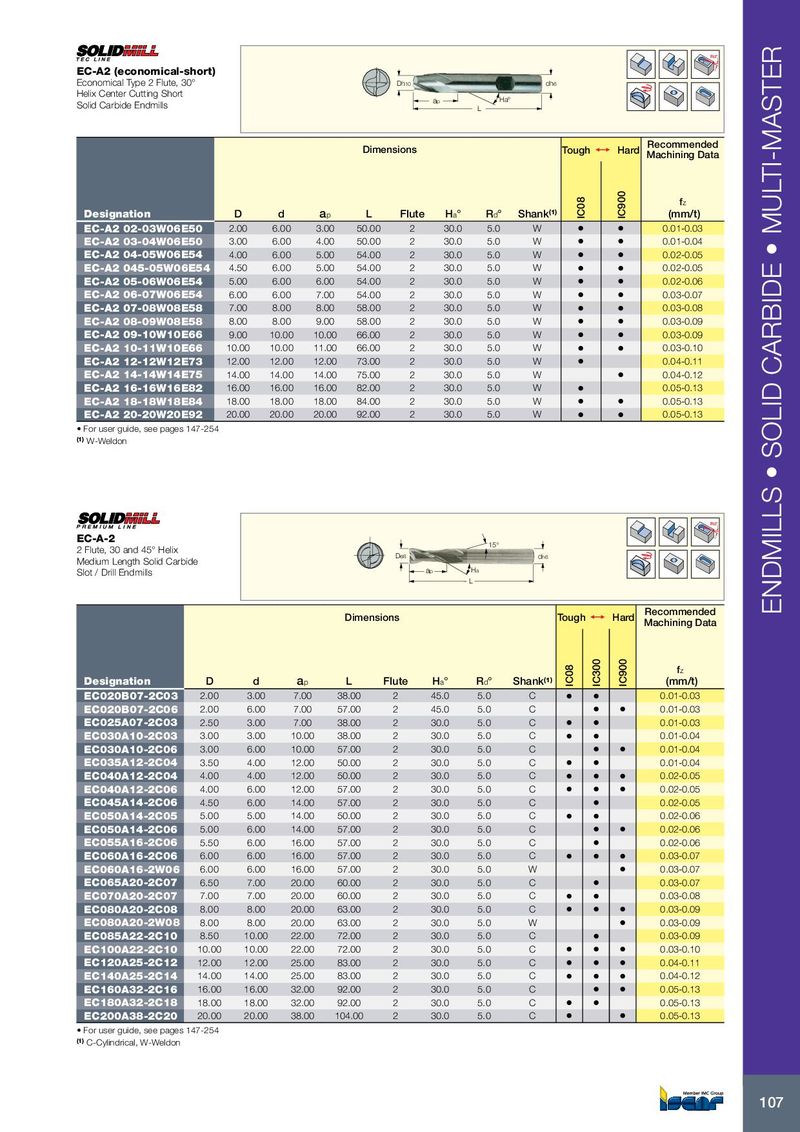

Rd° EC-A2 (economical-short) Economical Type 2 Flute, 30° Dh10 dh6 Helix Center Cutting Short ap Haº Solid Carbide Endmills L Recommended Dimensions Tough 1  Hard Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC900 (mm/t) EC-A2 02-03W06E50 2.00 6.00 3.00 50.00 2 30.0 5.0 W • • 0.01-0.03 EC-A2 03-04W06E50 3.00 6.00 4.00 50.00 2 30.0 5.0 W • • 0.01-0.04 EC-A2 04-05W06E54 4.00 6.00 5.00 54.00 2 30.0 5.0 W • • 0.02-0.05 EC-A2 045-05W06E54 4.50 6.00 5.00 54.00 2 30.0 5.0 W • • 0.02-0.05 EC-A2 05-06W06E54 5.00 6.00 6.00 54.00 2 30.0 5.0 W • • 0.02-0.06 EC-A2 06-07W06E54 6.00 6.00 7.00 54.00 2 30.0 5.0 W • • 0.03-0.07 EC-A2 07-08W08E58 7.00 8.00 8.00 58.00 2 30.0 5.0 W • • 0.03-0.08 EC-A2 08-09W08E58 8.00 8.00 9.00 58.00 2 30.0 5.0 W • • 0.03-0.09 EC-A2 09-10W10E66 9.00 10.00 10.00 66.00 2 30.0 5.0 W • • 0.03-0.09 EC-A2 10-11W10E66 10.00 10.00 11.00 66.00 2 30.0 5.0 W • • 0.03-0.10 EC-A2 12-12W12E73 12.00 12.00 12.00 73.00 2 30.0 5.0 W • 0.04-0.11 EC-A2 14-14W14E75 14.00 14.00 14.00 75.00 2 30.0 5.0 W • 0.04-0.12 EC-A2 16-16W16E82 16.00 16.00 16.00 82.00 2 30.0 5.0 W • 0.05-0.13 EC-A2 18-18W18E84 18.00 18.00 18.00 84.00 2 30.0 5.0 W • • 0.05-0.13 EC-A2 20-20W20E92 20.00 20.00 20.00 92.00 2 30.0 5.0 W • • 0.05-0.13 • For user guide, see pages 147-254 (1) W-Weldon Rd° EC-A-2 15° 2 Flute, 30 and 45° Helix De8 dh6 Medium Length Solid Carbide Slot / Drill Endmills ap Ha L Recommended ENDMILLS • SOLID CARBIDE • MULTI-MASTER Dimensions Tough 1  Hard Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) IC08 IC300 IC900 (mm/t) EC020B07-2C03 2.00 3.00 7.00 38.00 2 45.0 5.0 C • • 0.01-0.03 EC020B07-2C06 2.00 6.00 7.00 57.00 2 45.0 5.0 C • • 0.01-0.03 EC025A07-2C03 2.50 3.00 7.00 38.00 2 30.0 5.0 C • • 0.01-0.03 EC030A10-2C03 3.00 3.00 10.00 38.00 2 30.0 5.0 C • • 0.01-0.04 EC030A10-2C06 3.00 6.00 10.00 57.00 2 30.0 5.0 C • • 0.01-0.04 EC035A12-2C04 3.50 4.00 12.00 50.00 2 30.0 5.0 C • • 0.01-0.04 EC040A12-2C04 4.00 4.00 12.00 50.00 2 30.0 5.0 C • • • 0.02-0.05 EC040A12-2C06 4.00 6.00 12.00 57.00 2 30.0 5.0 C • • • 0.02-0.05 EC045A14-2C06 4.50 6.00 14.00 57.00 2 30.0 5.0 C • 0.02-0.05 EC050A14-2C05 5.00 5.00 14.00 50.00 2 30.0 5.0 C • • 0.02-0.06 EC050A14-2C06 5.00 6.00 14.00 57.00 2 30.0 5.0 C • • 0.02-0.06 EC055A16-2C06 5.50 6.00 16.00 57.00 2 30.0 5.0 C • 0.02-0.06 EC060A16-2C06 6.00 6.00 16.00 57.00 2 30.0 5.0 C • • • 0.03-0.07 EC060A16-2W06 6.00 6.00 16.00 57.00 2 30.0 5.0 W • 0.03-0.07 EC065A20-2C07 6.50 7.00 20.00 60.00 2 30.0 5.0 C • 0.03-0.07 EC070A20-2C07 7.00 7.00 20.00 60.00 2 30.0 5.0 C • • 0.03-0.08 EC080A20-2C08 8.00 8.00 20.00 63.00 2 30.0 5.0 C • • • 0.03-0.09 EC080A20-2W08 8.00 8.00 20.00 63.00 2 30.0 5.0 W • 0.03-0.09 EC085A22-2C10 8.50 10.00 22.00 72.00 2 30.0 5.0 C • 0.03-0.09 EC100A22-2C10 10.00 10.00 22.00 72.00 2 30.0 5.0 C • • • 0.03-0.10 EC120A25-2C12 12.00 12.00 25.00 83.00 2 30.0 5.0 C • • • 0.04-0.11 EC140A25-2C14 14.00 14.00 25.00 83.00 2 30.0 5.0 C • • • 0.04-0.12 EC160A32-2C16 16.00 16.00 32.00 92.00 2 30.0 5.0 C • • 0.05-0.13 EC180A32-2C18 18.00 18.00 32.00 92.00 2 30.0 5.0 C • • 0.05-0.13 EC200A38-2C20 20.00 20.00 38.00 104.00 2 30.0 5.0 C • • 0.05-0.13 • For user guide, see pages 147-254 (1) C-Cylindrical, W-Weldon 107
