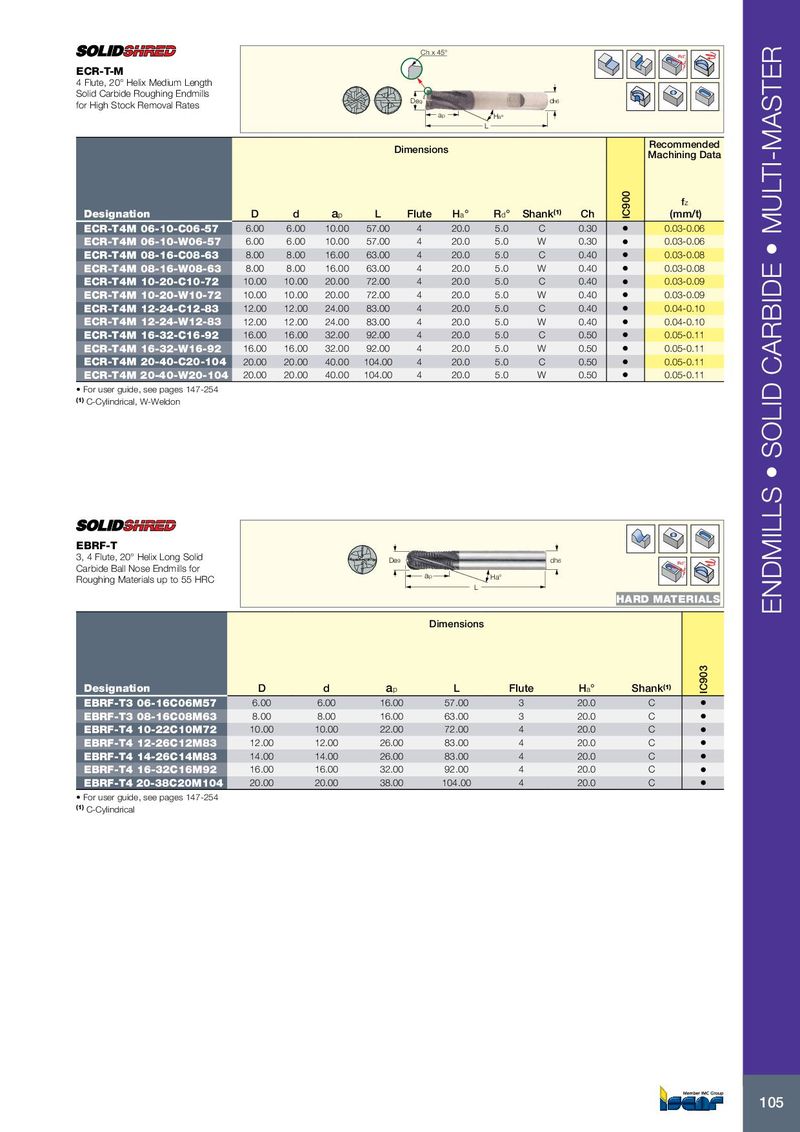

Ch x 45° Rd° ECR-T-M 4 Flute, 20° Helix Medium Length Solid Carbide Roughing Endmills De 9 d h6 for High Stock Removal Rates ap Haº L Recommended Dimensions Machining Data f z Designation D d a p L Flute H a ° R d ° Shank (1) Ch IC900 (mm/t) ECR-T4M 06-10-C06-57 6.00 6.00 10.00 57.00 4 20.0 5.0 C 0.30 • 0.03-0.06 ECR-T4M 06-10-W06-57 6.00 6.00 10.00 57.00 4 20.0 5.0 W 0.30 • 0.03-0.06 ECR-T4M 08-16-C08-63 8.00 8.00 16.00 63.00 4 20.0 5.0 C 0.40 • 0.03-0.08 ECR-T4M 08-16-W08-63 8.00 8.00 16.00 63.00 4 20.0 5.0 W 0.40 • 0.03-0.08 ECR-T4M 10-20-C10-72 10.00 10.00 20.00 72.00 4 20.0 5.0 C 0.40 • 0.03-0.09 ECR-T4M 10-20-W10-72 10.00 10.00 20.00 72.00 4 20.0 5.0 W 0.40 • 0.03-0.09 ECR-T4M 12-24-C12-83 12.00 12.00 24.00 83.00 4 20.0 5.0 C 0.40 • 0.04-0.10 ECR-T4M 12-24-W12-83 12.00 12.00 24.00 83.00 4 20.0 5.0 W 0.40 • 0.04-0.10 ECR-T4M 16-32-C16-92 16.00 16.00 32.00 92.00 4 20.0 5.0 C 0.50 • 0.05-0.11 ECR-T4M 16-32-W16-92 16.00 16.00 32.00 92.00 4 20.0 5.0 W 0.50 • 0.05-0.11 ECR-T4M 20-40-C20-104 20.00 20.00 40.00 104.00 4 20.0 5.0 C 0.50 • 0.05-0.11 ECR-T4M 20-40-W20-104 20.00 20.00 40.00 104.00 4 20.0 5.0 W 0.50 • 0.05-0.11 • For user guide, see pages 147-254 (1) C-Cylindrical, W-Weldon EBRF-T 3, 4 Flute, 20° Helix Long Solid De9 dh6 Rd° Carbide Ball Nose Endmills for ap Roughing Materials up to 55 HRC Ha° L HARD MATERIALS ENDMILLS • SOLID CARBIDE • MULTI-MASTER Dimensions Designation D d a p L Flute H a ° Shank (1) IC903 EBRF-T3 06-16C06M57 6.00 6.00 16.00 57.00 3 20.0 C • EBRF-T3 08-16C08M63 8.00 8.00 16.00 63.00 3 20.0 C • EBRF-T4 10-22C10M72 10.00 10.00 22.00 72.00 4 20.0 C • EBRF-T4 12-26C12M83 12.00 12.00 26.00 83.00 4 20.0 C • EBRF-T4 14-26C14M83 14.00 14.00 26.00 83.00 4 20.0 C • EBRF-T4 16-32C16M92 16.00 16.00 32.00 92.00 4 20.0 C • EBRF-T4 20-38C20M104 20.00 20.00 38.00 104.00 4 20.0 C • • For user guide, see pages 147-254 (1) C-Cylindrical 105
