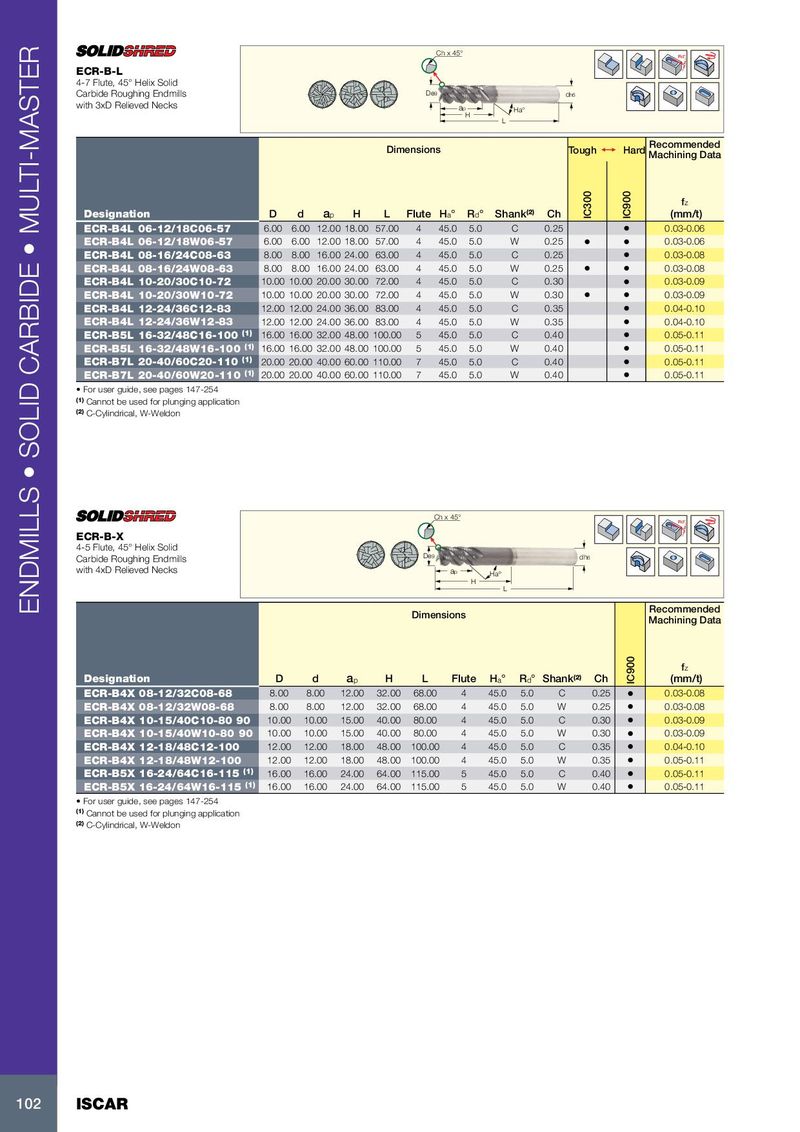

Ch x 45° Rd° ECR-B-L 4-7 Flute, 45° Helix Solid Carbide Roughing Endmills De9 dh6 with 3xD Relieved Necks ap Ha° H L Recommended Dimensions Tough 1  Hard Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (2) Ch IC300 IC900 (mm/t) ECR-B4L 06-12/18C06-57 6.00 6.00 12.00 18.00 57.00 4 45.0 5.0 C 0.25 • 0.03-0.06 ECR-B4L 06-12/18W06-57 6.00 6.00 12.00 18.00 57.00 4 45.0 5.0 W 0.25 • • 0.03-0.06 ECR-B4L 08-16/24C08-63 8.00 8.00 16.00 24.00 63.00 4 45.0 5.0 C 0.25 • 0.03-0.08 ECR-B4L 08-16/24W08-63 8.00 8.00 16.00 24.00 63.00 4 45.0 5.0 W 0.25 • • 0.03-0.08 ECR-B4L 10-20/30C10-72 10.00 10.00 20.00 30.00 72.00 4 45.0 5.0 C 0.30 • 0.03-0.09 ECR-B4L 10-20/30W10-72 10.00 10.00 20.00 30.00 72.00 4 45.0 5.0 W 0.30 • • 0.03-0.09 ECR-B4L 12-24/36C12-83 12.00 12.00 24.00 36.00 83.00 4 45.0 5.0 C 0.35 • 0.04-0.10 ECR-B4L 12-24/36W12-83 12.00 12.00 24.00 36.00 83.00 4 45.0 5.0 W 0.35 • 0.04-0.10 ECR-B5L 16-32/48C16-100 (1) 16.00 16.00 32.00 48.00 100.00 5 45.0 5.0 C 0.40 • 0.05-0.11 ECR-B5L 16-32/48W16-100 (1) 16.00 16.00 32.00 48.00 100.00 5 45.0 5.0 W 0.40 • 0.05-0.11 ECR-B7L 20-40/60C20-110 (1) 20.00 20.00 40.00 60.00 110.00 7 45.0 5.0 C 0.40 • 0.05-0.11 ECR-B7L 20-40/60W20-110 (1) 20.00 20.00 40.00 60.00 110.00 7 45.0 5.0 W 0.40 • 0.05-0.11 • For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) C-Cylindrical, W-Weldon Ch x 45° Rd° ECR-B-X 4-5 Flute, 45° Helix Solid De9 Carbide Roughing Endmills dh6 with 4xD Relieved Necks ap Haº H L ENDMILLS • SOLID CARBIDE • MULTI-MASTER Recommended Dimensions Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (2) Ch IC900 (mm/t) ECR-B4X 08-12/32C08-68 8.00 8.00 12.00 32.00 68.00 4 45.0 5.0 C 0.25 • 0.03-0.08 ECR-B4X 08-12/32W08-68 8.00 8.00 12.00 32.00 68.00 4 45.0 5.0 W 0.25 • 0.03-0.08 ECR-B4X 10-15/40C10-80 90 10.00 10.00 15.00 40.00 80.00 4 45.0 5.0 C 0.30 • 0.03-0.09 ECR-B4X 10-15/40W10-80 90 10.00 10.00 15.00 40.00 80.00 4 45.0 5.0 W 0.30 • 0.03-0.09 ECR-B4X 12-18/48C12-100 12.00 12.00 18.00 48.00 100.00 4 45.0 5.0 C 0.35 • 0.04-0.10 ECR-B4X 12-18/48W12-100 12.00 12.00 18.00 48.00 100.00 4 45.0 5.0 W 0.35 • 0.05-0.11 ECR-B5X 16-24/64C16-115 (1) 16.00 16.00 24.00 64.00 115.00 5 45.0 5.0 C 0.40 • 0.05-0.11 ECR-B5X 16-24/64W16-115 (1) 16.00 16.00 24.00 64.00 115.00 5 45.0 5.0 W 0.40 • 0.05-0.11 • For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) C-Cylindrical, W-Weldon 102 ISCAR
