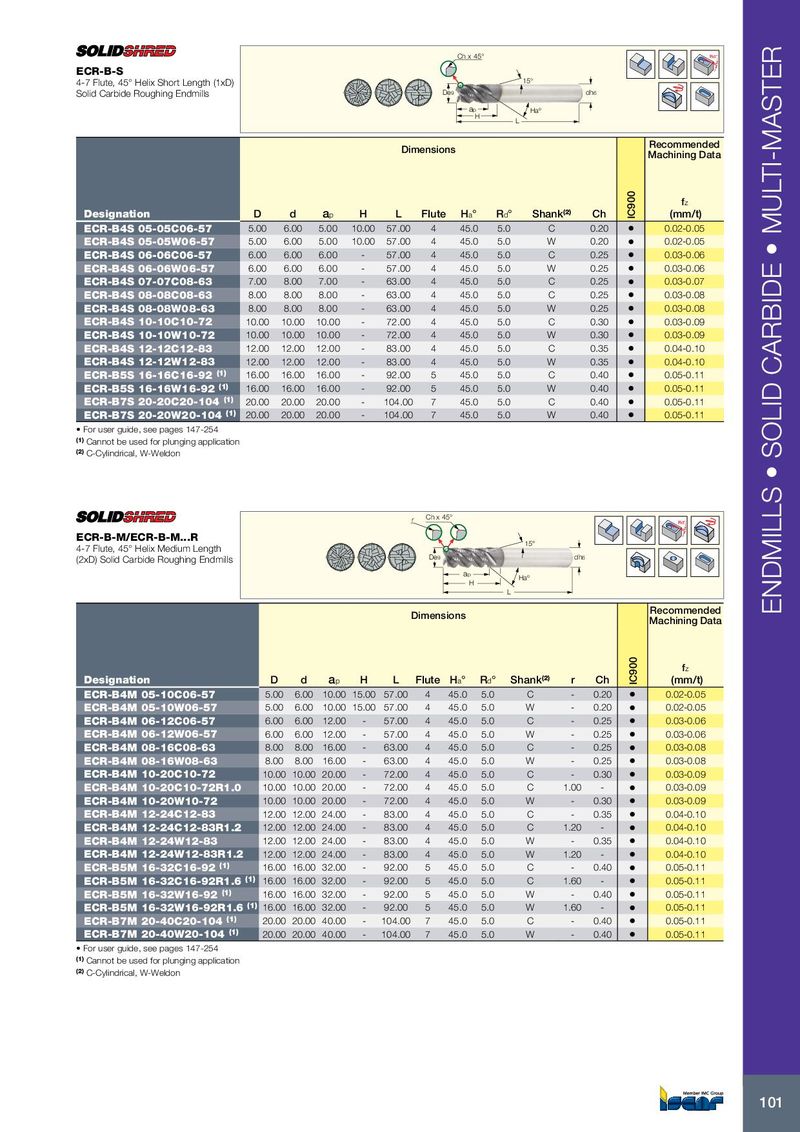

Каталог Iscar вращающийся инструмент 2017 - страница 105

Ch x 45° Rd° ECR-B-S 4-7 Flute, 45° Helix Short Length (1xD) 15° Solid Carbide Roughing Endmills De9 dh6 ap Haº H L Recommended Dimensions Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (2) Ch IC900 (mm/t) ECR-B4S 05-05C06-57 5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 C 0.20 • 0.02-0.05 ECR-B4S 05-05W06-57 5.00 6.00 5.00 10.00 57.00 4 45.0 5.0 W 0.20 • 0.02-0.05 ECR-B4S 06-06C06-57 6.00 6.00 6.00 - 57.00 4 45.0 5.0 C 0.25 • 0.03-0.06 ECR-B4S 06-06W06-57 6.00 6.00 6.00 - 57.00 4 45.0 5.0 W 0.25 • 0.03-0.06 ECR-B4S 07-07C08-63 7.00 8.00 7.00 - 63.00 4 45.0 5.0 C 0.25 • 0.03-0.07 ECR-B4S 08-08C08-63 8.00 8.00 8.00 - 63.00 4 45.0 5.0 C 0.25 • 0.03-0.08 ECR-B4S 08-08W08-63 8.00 8.00 8.00 - 63.00 4 45.0 5.0 W 0.25 • 0.03-0.08 ECR-B4S 10-10C10-72 10.00 10.00 10.00 - 72.00 4 45.0 5.0 C 0.30 • 0.03-0.09 ECR-B4S 10-10W10-72 10.00 10.00 10.00 - 72.00 4 45.0 5.0 W 0.30 • 0.03-0.09 ECR-B4S 12-12C12-83 12.00 12.00 12.00 - 83.00 4 45.0 5.0 C 0.35 • 0.04-0.10 ECR-B4S 12-12W12-83 12.00 12.00 12.00 - 83.00 4 45.0 5.0 W 0.35 • 0.04-0.10 ECR-B5S 16-16C16-92 (1) 16.00 16.00 16.00 - 92.00 5 45.0 5.0 C 0.40 • 0.05-0.11 ECR-B5S 16-16W16-92 (1) 16.00 16.00 16.00 - 92.00 5 45.0 5.0 W 0.40 • 0.05-0.11 ECR-B7S 20-20C20-104 (1) 20.00 20.00 20.00 - 104.00 7 45.0 5.0 C 0.40 • 0.05-0.11 ECR-B7S 20-20W20-104 (1) 20.00 20.00 20.00 - 104.00 7 45.0 5.0 W 0.40 • 0.05-0.11 • For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) C-Cylindrical, W-Weldon r Ch x 45° Rd° ECR-B-M/ECR-B-M...R 15° 4-7 Flute, 45° Helix Medium Length (2xD) Solid Carbide Roughing Endmills De9 dh6 ap Haº H L Recommended ENDMILLS • SOLID CARBIDE • MULTI-MASTER Dimensions Machining Data f z Designation D d a p H L Flute H a ° R d ° Shank (2) r Ch IC900 (mm/t) ECR-B4M 05-10C06-57 5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 C - 0.20 • 0.02-0.05 ECR-B4M 05-10W06-57 5.00 6.00 10.00 15.00 57.00 4 45.0 5.0 W - 0.20 • 0.02-0.05 ECR-B4M 06-12C06-57 6.00 6.00 12.00 - 57.00 4 45.0 5.0 C - 0.25 • 0.03-0.06 ECR-B4M 06-12W06-57 6.00 6.00 12.00 - 57.00 4 45.0 5.0 W - 0.25 • 0.03-0.06 ECR-B4M 08-16C08-63 8.00 8.00 16.00 - 63.00 4 45.0 5.0 C - 0.25 • 0.03-0.08 ECR-B4M 08-16W08-63 8.00 8.00 16.00 - 63.00 4 45.0 5.0 W - 0.25 • 0.03-0.08 ECR-B4M 10-20C10-72 10.00 10.00 20.00 - 72.00 4 45.0 5.0 C - 0.30 • 0.03-0.09 ECR-B4M 10-20C10-72R1.0 10.00 10.00 20.00 - 72.00 4 45.0 5.0 C 1.00 - • 0.03-0.09 ECR-B4M 10-20W10-72 10.00 10.00 20.00 - 72.00 4 45.0 5.0 W - 0.30 • 0.03-0.09 ECR-B4M 12-24C12-83 12.00 12.00 24.00 - 83.00 4 45.0 5.0 C - 0.35 • 0.04-0.10 ECR-B4M 12-24C12-83R1.2 12.00 12.00 24.00 - 83.00 4 45.0 5.0 C 1.20 - • 0.04-0.10 ECR-B4M 12-24W12-83 12.00 12.00 24.00 - 83.00 4 45.0 5.0 W - 0.35 • 0.04-0.10 ECR-B4M 12-24W12-83R1.2 12.00 12.00 24.00 - 83.00 4 45.0 5.0 W 1.20 - • 0.04-0.10 ECR-B5M 16-32C16-92 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 C - 0.40 • 0.05-0.11 ECR-B5M 16-32C16-92R1.6 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 C 1.60 - • 0.05-0.11 ECR-B5M 16-32W16-92 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 W - 0.40 • 0.05-0.11 ECR-B5M 16-32W16-92R1.6 (1) 16.00 16.00 32.00 - 92.00 5 45.0 5.0 W 1.60 - • 0.05-0.11 ECR-B7M 20-40C20-104 (1) 20.00 20.00 40.00 - 104.00 7 45.0 5.0 C - 0.40 • 0.05-0.11 ECR-B7M 20-40W20-104 (1) 20.00 20.00 40.00 - 104.00 7 45.0 5.0 W - 0.40 • 0.05-0.11 • For user guide, see pages 147-254 (1) Cannot be used for plunging application (2) C-Cylindrical, W-Weldon 101
