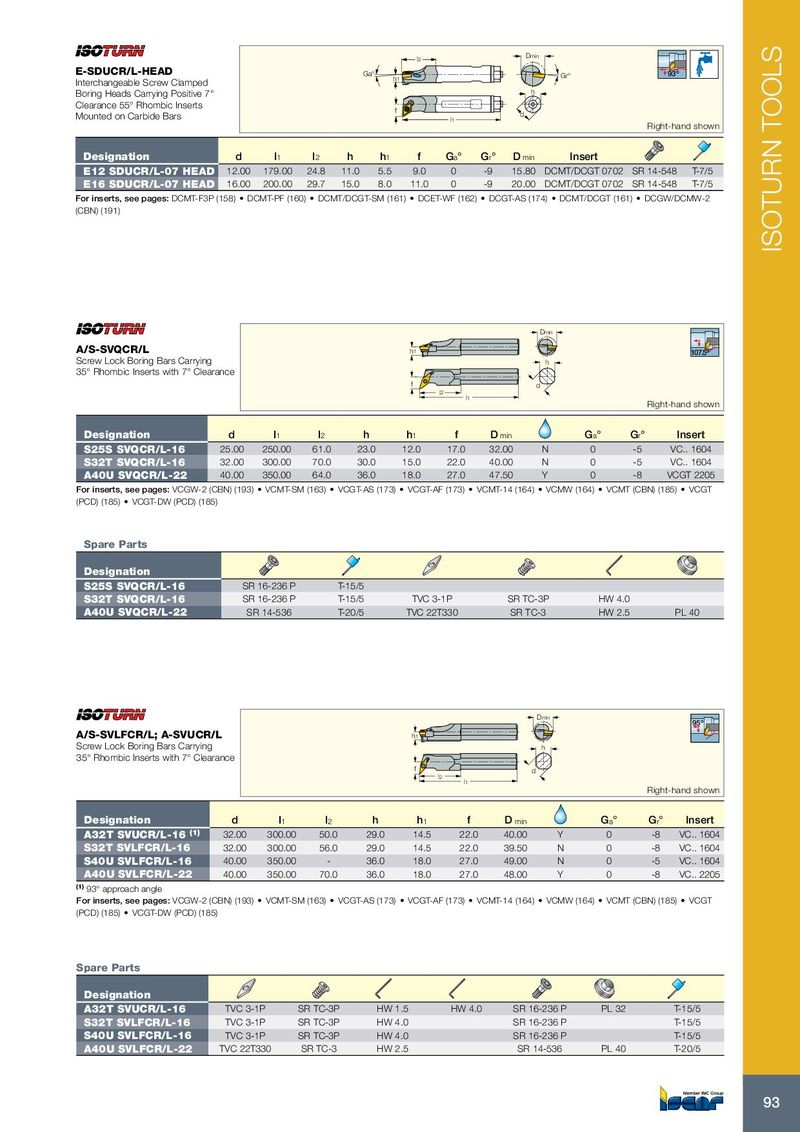

| E-SDUCR/L-HEAD Interchangeable Screw Clamped | | | | G | h1 a° | l2 | | Dmin | Gr° | 93º | |
| Boring Heads Carrying Positive 7° Clearance 55° Rhombic Inserts Mounted on Carbide Bars | | | | | f | | l1 | h d | | Right-han | d shown |
| Designation | d | l1 | l2 | h | h1 | f | Ga° Gr° | Dmin | Insert | | |
| E12 SDUCR/L-07 HEAD | 12.00 | 179.00 | 24.8 | 11.0 | 5.5 | 9.0 | 0 -9 | 15.80 | DCMT/DCGT 0702 | SR 14-548 | T-7/5 |
| E16 SDUCR/L-07 HEAD | 16.00 | 200.00 | 29.7 | 15.0 | 8.0 | 11.0 | 0 -9 | 20.00 | DCMT/DCGT 0702 | SR 14-548 | T-7/5 |
For inserts, see pages: DCMT-F3P (158) • DCMT-PF (160) • DCMT/DCGT-SM (161) • DCET-WF (162) • DCGT-AS (174) • DCMT/DCGT (161) • DCGW/DCMW-2 (CBN) (191)
| | | | | | | | Dmin | | | |
| A/S-SVQCR/L | | | | | h1 | | | | | | 107.5º |
| Screw Lock Boring Bars Carryin | g | | | | | | | h | | | |
| 35° Rhombic Inserts with 7° Cle | arance | | | | f | l1 l2 | | d | | Ri | ght-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Dmin | | Ga° | Gr° | Insert |
| S25S SVQCR/L-16 | 25.00 | 250.00 | 61.0 | 23.0 | 12.0 | 17.0 | 32.00 | N | 0 | -5 | VC.. 1604 |
| S32T SVQCR/L-16 | 32.00 | 300.00 | 70.0 | 30.0 | 15.0 | 22.0 | 40.00 | N | 0 | -5 | VC.. 1604 |
| A40U SVQCR/L-22 | 40.00 | 350.00 | 64.0 | 36.0 | 18.0 | 27.0 | 47.50 | Y | 0 | -8 | VCGT 2205 |
For inserts, see pages: VCGW-2 (CBN) (193) • VCMT-SM (163) • VCGT-AS (173) • VCGT-AF (173) • VCMT-14 (164) • VCMW (164) • VCMT (CBN) (185) • VCGT (PCD) (185) • VCGT-DW (PCD) (185)
Spare Parts
| Designation | | | | | | |
| S25S SVQCR/L-16 | SR 16-236 P | T-15/5 | | | | |
| S32T SVQCR/L-16 | SR 16-236 P | T-15/5 | TVC 3-1P | SR TC-3P | HW 4.0 | |
| A40U SVQCR/L-22 | SR 14-536 | T-20/5 | TVC 22T330 | SR TC-3 | HW 2.5 | PL 40 |
| | | | | | | | Dmin | | | 95º |
| A/S-SVLFCR/L; A-SVUCR | /L | | | | h1 | | | | | | |
| Screw Lock Boring Bars Carrying 35° Rhombic Inserts with 7° Clea | rance | | | | f l2 | l1 | | h d | | Right | -hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Dmin | | Ga° | Gr° | Insert |
| A32T SVUCR/L-16(1) | 32.00 | 300.00 | 50.0 | 29.0 | 14.5 | 22.0 | 40.00 | Y | 0 | -8 | VC.. 1604 |
| S32T SVLFCR/L-16 | 32.00 | 300.00 | 56.0 | 29.0 | 14.5 | 22.0 | 39.50 | N | 0 | -8 | VC.. 1604 |
| S40U SVLFCR/L-16 | 40.00 | 350.00 | - | 36.0 | 18.0 | 27.0 | 49.00 | N | 0 | -5 | VC.. 1604 |
| A40U SVLFCR/L-22 | 40.00 | 350.00 | 70.0 | 36.0 | 18.0 | 27.0 | 48.00 | Y | 0 | -8 | VC.. 2205 |
(1) 93° approach angle For inserts, see pages: VCGW-2 (CBN) (193) • VCMT-SM (163) • VCGT-AS (173) • VCGT-AF (173) • VCMT-14 (164) • VCMW (164) • VCMT (CBN) (185) • VCGT (PCD) (185) • VCGT-DW (PCD) (185)
Spare Parts
| Designation | | | | | | | |
| A32T SVUCR/L-16 | TVC 3-1P | SR TC-3P | HW 1.5 | HW 4.0 | SR 16-236 P | PL 32 | T-15/5 |
| S32T SVLFCR/L-16 | TVC 3-1P | SR TC-3P | HW 4.0 | | SR 16-236 P | | T-15/5 |
| S40U SVLFCR/L-16 | TVC 3-1P | SR TC-3P | HW 4.0 | | SR 16-236 P | | T-15/5 |
| A40U SVLFCR/L-22 | TVC 22T330 | SR TC-3 | HW 2.5 | | SR 14-536 | PL 40 | T-20/5 |
