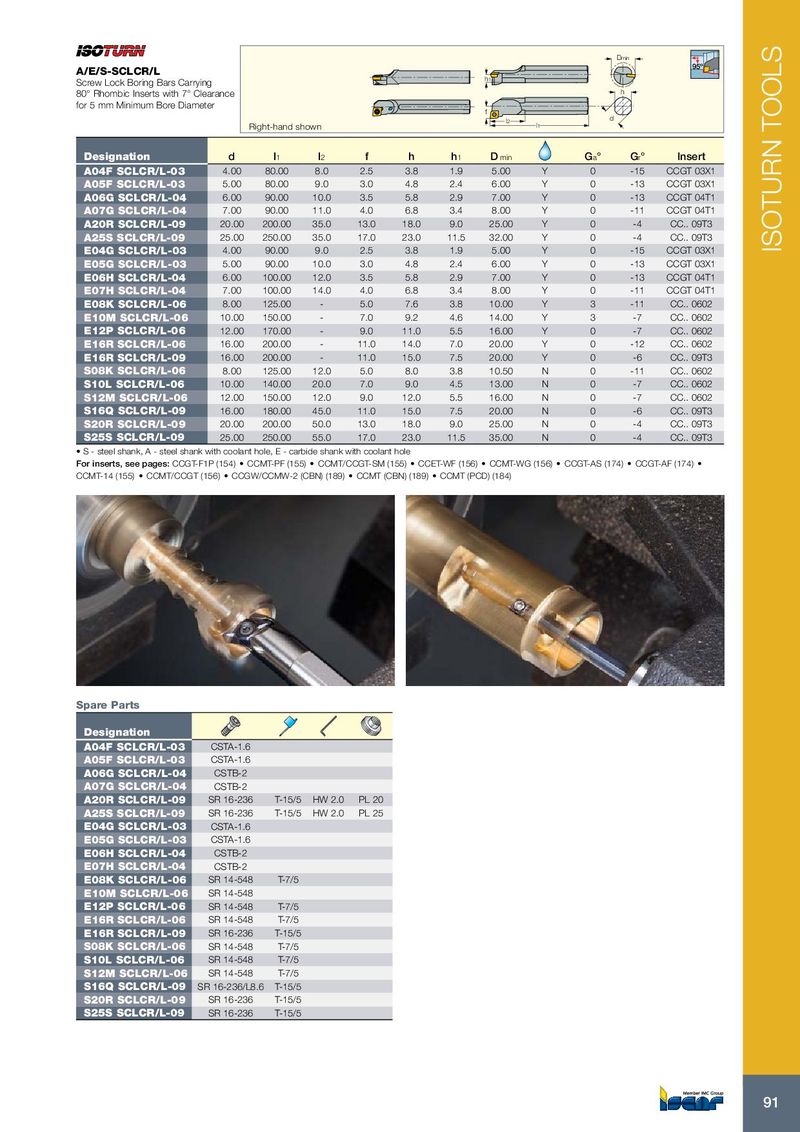

Каталог Iscar токарный инструмент 2017 - страница 95
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| Dmin | |||||||||||
| 95º | |||||||||||
| A/E/S-SCLCR/L | h | ||||||||||
| Screw Lock Boring Bars Carryin | g | 1 | |||||||||
| 80° Rhombic Inserts with 7° Cle | arance | h | |||||||||
| for 5 mm Minimum Bore Diame | ter | f | |||||||||
| R | ight-hand sh | own | l2 | l1 | d | ||||||
| Designation | d | l1 | l2 | f | h | h1 | Dmin | Ga° | Gr° | Insert | |
| A04F SCLCR/L-03 | 4.00 | 80.00 | 8.0 | 2.5 | 3.8 | 1.9 | 5.00 | Y | 0 | -15 | CCGT 03X1 |
| A05F SCLCR/L-03 | 5.00 | 80.00 | 9.0 | 3.0 | 4.8 | 2.4 | 6.00 | Y | 0 | -13 | CCGT 03X1 |
| A06G SCLCR/L-04 | 6.00 | 90.00 | 10.0 | 3.5 | 5.8 | 2.9 | 7.00 | Y | 0 | -13 | CCGT 04T1 |
| A07G SCLCR/L-04 | 7.00 | 90.00 | 11.0 | 4.0 | 6.8 | 3.4 | 8.00 | Y | 0 | -11 | CCGT 04T1 |
| A20R SCLCR/L-09 | 20.00 | 200.00 | 35.0 | 13.0 | 18.0 | 9.0 | 25.00 | Y | 0 | -4 | CC.. 09T3 |
| A25S SCLCR/L-09 | 25.00 | 250.00 | 35.0 | 17.0 | 23.0 | 11.5 | 32.00 | Y | 0 | -4 | CC.. 09T3 |
| E04G SCLCR/L-03 | 4.00 | 90.00 | 9.0 | 2.5 | 3.8 | 1.9 | 5.00 | Y | 0 | -15 | CCGT 03X1 |
| E05G SCLCR/L-03 | 5.00 | 90.00 | 10.0 | 3.0 | 4.8 | 2.4 | 6.00 | Y | 0 | -13 | CCGT 03X1 |
| E06H SCLCR/L-04 | 6.00 | 100.00 | 12.0 | 3.5 | 5.8 | 2.9 | 7.00 | Y | 0 | -13 | CCGT 04T1 |
| E07H SCLCR/L-04 | 7.00 | 100.00 | 14.0 | 4.0 | 6.8 | 3.4 | 8.00 | Y | 0 | -11 | CCGT 04T1 |
| E08K SCLCR/L-06 | 8.00 | 125.00 | - | 5.0 | 7.6 | 3.8 | 10.00 | Y | 3 | -11 | CC.. 0602 |
| E10M SCLCR/L-06 | 10.00 | 150.00 | - | 7.0 | 9.2 | 4.6 | 14.00 | Y | 3 | -7 | CC.. 0602 |
| E12P SCLCR/L-06 | 12.00 | 170.00 | - | 9.0 | 11.0 | 5.5 | 16.00 | Y | 0 | -7 | CC.. 0602 |
| E16R SCLCR/L-06 | 16.00 | 200.00 | - | 11.0 | 14.0 | 7.0 | 20.00 | Y | 0 | -12 | CC.. 0602 |
| E16R SCLCR/L-09 | 16.00 | 200.00 | - | 11.0 | 15.0 | 7.5 | 20.00 | Y | 0 | -6 | CC.. 09T3 |
| S08K SCLCR/L-06 | 8.00 | 125.00 | 12.0 | 5.0 | 8.0 | 3.8 | 10.50 | N | 0 | -11 | CC.. 0602 |
| S10L SCLCR/L-06 | 10.00 | 140.00 | 20.0 | 7.0 | 9.0 | 4.5 | 13.00 | N | 0 | -7 | CC.. 0602 |
| S12M SCLCR/L-06 | 12.00 | 150.00 | 12.0 | 9.0 | 12.0 | 5.5 | 16.00 | N | 0 | -7 | CC.. 0602 |
| S16Q SCLCR/L-09 | 16.00 | 180.00 | 45.0 | 11.0 | 15.0 | 7.5 | 20.00 | N | 0 | -6 | CC.. 09T3 |
| S20R SCLCR/L-09 | 20.00 | 200.00 | 50.0 | 13.0 | 18.0 | 9.0 | 25.00 | N | 0 | -4 | CC.. 09T3 |
| S25S SCLCR/L-09 | 25.00 | 250.00 | 55.0 | 17.0 | 23.0 | 11.5 | 35.00 | N | 0 | -4 | CC.. 09T3 |
- S - steel shank, A - steel shank with coolant hole, E - carbide shank with coolant hole
For inserts, see pages: CCGT-F1P (154) CCMT-PF (155) CCMT/CCGT-SM (155) CCET-WF (156) CCMT-WG (156) CCGT-AS (174) CCGT-AF (174) CCMT-14 (155) CCMT/CCGT (156) CCGW/CCMW-2 (CBN) (189) CCMT (CBN) (189) CCMT (PCD) (184)
Spare Parts
Designation
| A04F SCLCR/L-03 | CSTA-1.6 | |
| A05F SCLCR/L-03 | CSTA-1.6 | |
| A06G SCLCR/L-04 | CSTB-2 | |
| A07G SCLCR/L-04 | CSTB-2 | |
| A20R SCLCR/L-09 | SR 16-236 | PL 20 HW 2.0 T-15/5 |
| A25S SCLCR/L-09 | SR 16-236 | PL 25 HW 2.0 T-15/5 |
| E04G SCLCR/L-03 | CSTA-1.6 | |
| E05G SCLCR/L-03 | CSTA-1.6 | |
| E06H SCLCR/L-04 | CSTB-2 | |
| E07H SCLCR/L-04 | CSTB-2 | |
| E08K SCLCR/L-06 | SR 14-548 | T-7/5 |
| E10M SCLCR/L-06 | SR 14-548 | |
| E12P SCLCR/L-06 | SR 14-548 | T-7/5 |
| E16R SCLCR/L-06 | SR 14-548 | T-7/5 |
| E16R SCLCR/L-09 | SR 16-236 | T-15/5 |
| S08K SCLCR/L-06 | SR 14-548 | T-7/5 |
| S10L SCLCR/L-06 | SR 14-548 | T-7/5 |
| S12M SCLCR/L-06 | SR 14-548 | T-7/5 |
| S16Q SCLCR/L-09 | SR 16-236/L8.6 | T-15/5 |
| S20R SCLCR/L-09 | SR 16-236 | T-15/5 |
| S25S SCLCR/L-09 | SR 16-236 | T-15/5 |
