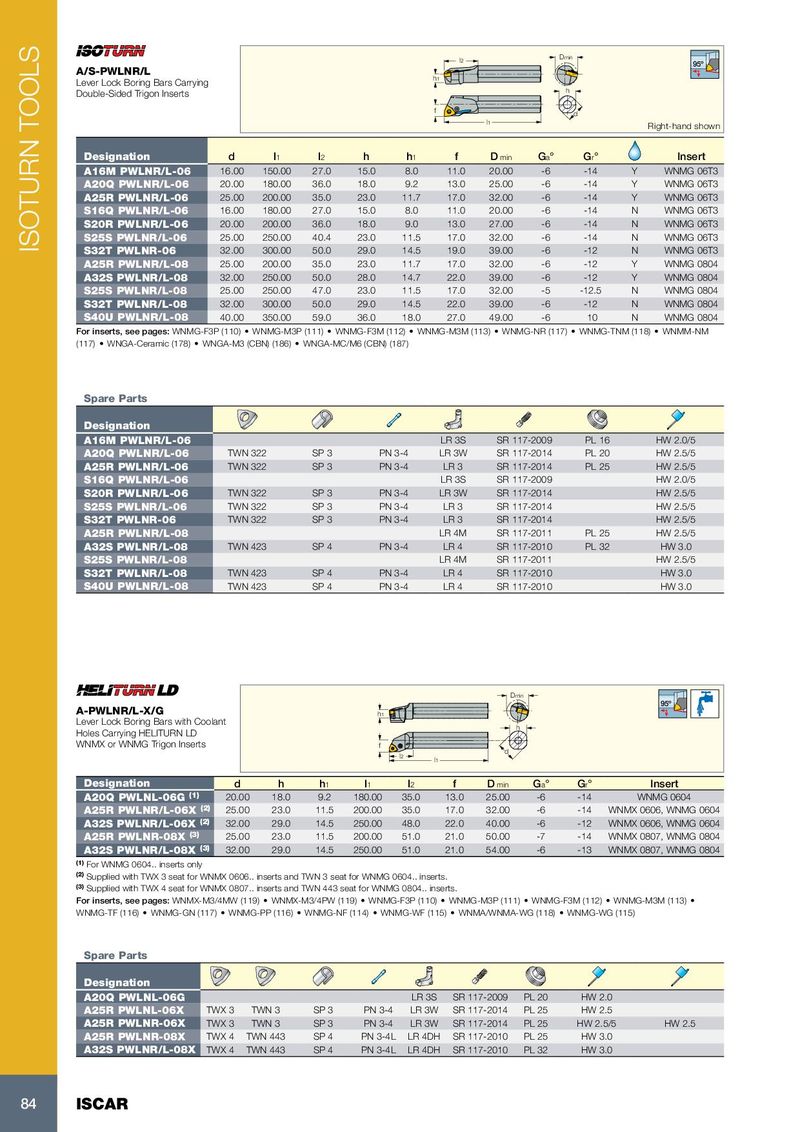

| A/S-PWLNR/L | | | | | | l2 h | | | Dmin | | 95º |
| Lever Lock Boring Bars Carrying Double-Sided Trigon Inserts | | | | | | f 1 | l1 | | d h | | Right-hand shown |
| Designation | d | l1 | l2 | h | h1 | f | Dmin | Ga° | Gr° | | Insert |
| A16M PWLNR/L-06 | 16.00 | 150.00 | 27.0 | 15.0 | 8.0 | 11.0 | 20.00 | -6 | -14 | Y | WNMG 06T3 |
| A20Q PWLNR/L-06 | 20.00 | 180.00 | 36.0 | 18.0 | 9.2 | 13.0 | 25.00 | -6 | -14 | Y | WNMG 06T3 |
| A25R PWLNR/L-06 | 25.00 | 200.00 | 35.0 | 23.0 | 11.7 | 17.0 | 32.00 | -6 | -14 | Y | WNMG 06T3 |
| S16Q PWLNR/L-06 | 16.00 | 180.00 | 27.0 | 15.0 | 8.0 | 11.0 | 20.00 | -6 | -14 | N | WNMG 06T3 |
| S20R PWLNR/L-06 | 20.00 | 200.00 | 36.0 | 18.0 | 9.0 | 13.0 | 27.00 | -6 | -14 | N | WNMG 06T3 |
| S25S PWLNR/L-06 | 25.00 | 250.00 | 40.4 | 23.0 | 11.5 | 17.0 | 32.00 | -6 | -14 | N | WNMG 06T3 |
| S32T PWLNR-06 | 32.00 | 300.00 | 50.0 | 29.0 | 14.5 | 19.0 | 39.00 | -6 | -12 | N | WNMG 06T3 |
| A25R PWLNR/L-08 | 25.00 | 200.00 | 35.0 | 23.0 | 11.7 | 17.0 | 32.00 | -6 | -12 | Y | WNMG 0804 |
| A32S PWLNR/L-08 | 32.00 | 250.00 | 50.0 | 28.0 | 14.7 | 22.0 | 39.00 | -6 | -12 | Y | WNMG 0804 |
| S25S PWLNR/L-08 | 25.00 | 250.00 | 47.0 | 23.0 | 11.5 | 17.0 | 32.00 | -5 | -12.5 | N | WNMG 0804 |
| S32T PWLNR/L-08 | 32.00 | 300.00 | 50.0 | 29.0 | 14.5 | 22.0 | 39.00 | -6 | -12 | N | WNMG 0804 |
| S40U PWLNR/L-08 | 40.00 | 350.00 | 59.0 | 36.0 | 18.0 | 27.0 | 49.00 | -6 | 10 | N | WNMG 0804 |
For inserts, see pages: WNMG-F3P (110) • WNMG-M3P (111) • WNMG-F3M (112) • WNMG-M3M (113) • WNMG-NR (117) • WNMG-TNM (118) • WNMM-NM (117) • WNGA-Ceramic (178) • WNGA-M3 (CBN) (186) • WNGA-MC/M6 (CBN) (187)
Spare Parts
| Designation | | | | | | | |
| A16M PWLNR/L-06 | | | | LR 3S | SR 117-2009 | PL 16 | HW 2.0/5 |
| A20Q PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | PL 20 | HW 2.5/5 |
| A25R PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | PL 25 | HW 2.5/5 |
| S16Q PWLNR/L-06 | | | | LR 3S | SR 117-2009 | | HW 2.0/5 |
| S20R PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | | HW 2.5/5 |
| S25S PWLNR/L-06 | TWN 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | | HW 2.5/5 |
| S32T PWLNR-06 | TWN 322 | SP 3 | PN 3-4 | LR 3 | SR 117-2014 | | HW 2.5/5 |
| A25R PWLNR/L-08 | | | | LR 4M | SR 117-2011 | PL 25 | HW 2.5/5 |
| A32S PWLNR/L-08 | TWN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | PL 32 | HW 3.0 |
| S25S PWLNR/L-08 | | | | LR 4M | SR 117-2011 | | HW 2.5/5 |
| S32T PWLNR/L-08 | TWN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | | HW 3.0 |
| S40U PWLNR/L-08 | TWN 423 | SP 4 | PN 3-4 | LR 4 | SR 117-2010 | | HW 3.0 |
| -PWLNR/L-X/G | | | | h1 | | | Dmi | n | | 95º |
| ver Lock Boring Bars with Coola oles Carrying HELITURN LD NMX or WNMG Trigon Inserts | nt | | | f | l2 | l1 | h d | | | |
| Designation | d | h | h1 | l1 | l2 | f | Dmin | Ga° | Gr° In | sert |
| A20Q PWLNL-06G(1) | 20.00 | 18.0 | 9.2 | 180.00 | 35.0 | 13.0 | 25.00 | -6 | -14 WNM | G 0604 |
| A25R PWLNR/L-06X(2) | 25.00 | 23.0 | 11.5 | 200.00 | 35.0 | 17.0 | 32.00 | -6 | -14 WNMX 0606 | , WNMG 0604 |
| A32S PWLNR/L-06X(2) | 32.00 | 29.0 | 14.5 | 250.00 | 48.0 | 22.0 | 40.00 | -6 | -12 WNMX 0606 | , WNMG 0604 |
| A25R PWLNR-08X(3) | 25.00 | 23.0 | 11.5 | 200.00 | 51.0 | 21.0 | 50.00 | -7 | -14 WNMX 0807 | , WNMG 0804 |
| A32S PWLNR/L-08X(3) | 32.00 | 29.0 | 14.5 | 250.00 | 51.0 | 21.0 | 54.00 | -6 | -13 WNMX 0807 | ,WNMG 0804 |
(1) For WNMG 0604.. inserts only (2) Supplied with TWX 3 seat for WNMX 0606.. inserts and TWN 3 seat for WNMG 0604.. inserts. (3) Supplied with TWX 4 seat for WNMX 0807.. inserts and TWN 443 seat for WNMG 0804.. inserts. For inserts, see pages: WNMX-M3/4MW (119) • WNMX-M3/4PW (119) • WNMG-F3P (110) • WNMG-M3P (111) • WNMG-F3M (112) • WNMG-M3M (113) • WNMG-TF (116) • WNMG-GN (117) • WNMG-PP (116) • WNMG-NF (114) • WNMG-WF (115) • WNMA/WNMA-WG (118) • WNMG-WG (115)
Spare Parts
| Designation | | | | | | | | | |
| A20Q PWLNL-06G | | | | | LR 3S | SR 117-2009 | PL 20 | HW 2.0 | |
| A25R PWLNL-06X | TWX 3 | TWN 3 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | PL 25 | HW 2.5 | |
| A25R PWLNR-06X | TWX 3 | TWN 3 | SP 3 | PN 3-4 | LR 3W | SR 117-2014 | PL 25 | HW 2.5/5 | HW 2.5 |
| A25R PWLNR-08X | TWX 4 | TWN 443 | SP 4 | PN 3-4L | LR 4DH | SR 117-2010 | PL 25 | HW 3.0 | |
| A32S PWLNR/L-08X | TWX 4 | TWN 443 | SP 4 | PN 3-4L | LR 4DH | SR 117-2010 | PL 32 | HW 3.0 | |
