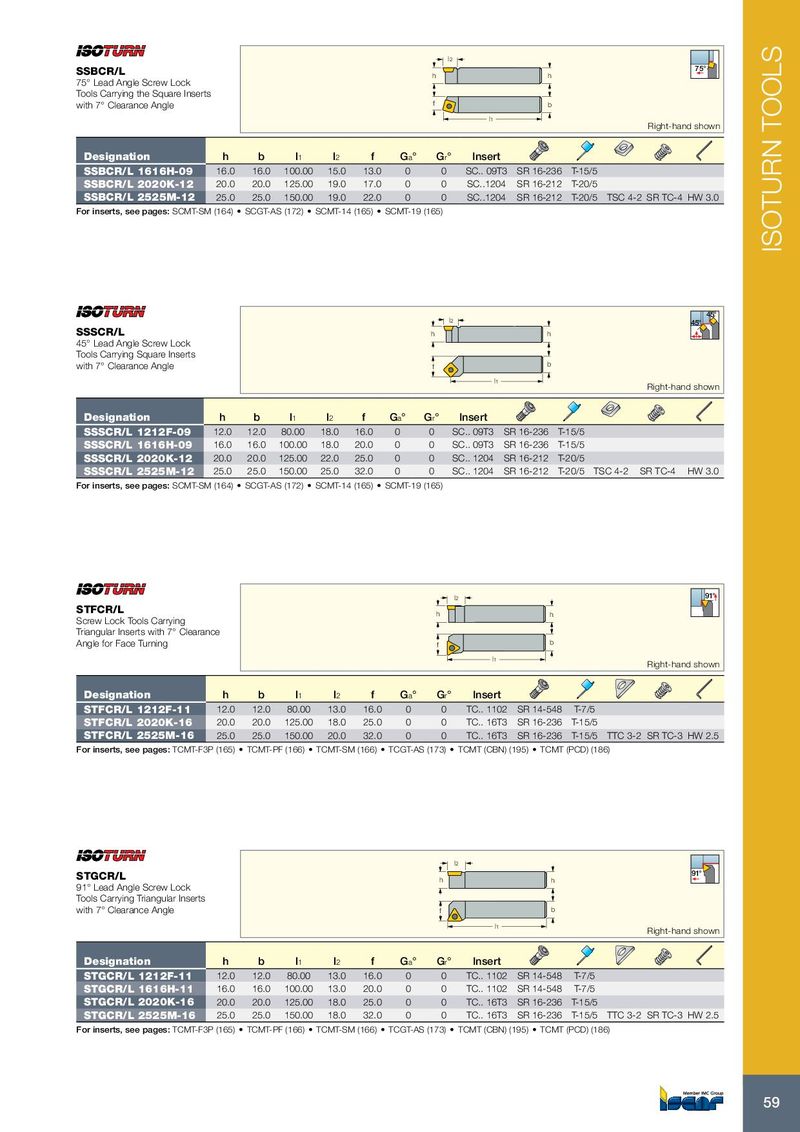

| SSBCR/L 75° Lead Angle Screw Lock | l2 h | h | 75° | ||||||||
| Tools Carrying the Square Inserts | |||||||||||
| with 7° Clearance Angle | f | l1 | b | Right-hand shown | |||||||
| Designation | h | b | l1 | l2 | f | Ga° Gr° | Insert | ||||
| SSBCR/L 1616H-09 | 16.0 | 16.0 | 100.00 | 15.0 | 13.0 | 0 0 | SC.. 09T3 | SR 16-236 | T-15/5 | ||
| SSBCR/L 2020K-12 | 20.0 | 20.0 | 125.00 | 19.0 | 17.0 | 0 0 | SC..1204 | SR 16-212 | T-20/5 | ||
| SSBCR/L 2525M-12 | 25.0 | 25.0 | 150.00 | 19.0 | 22.0 | 0 0 | SC..1204 | SR 16-212 | T-20/5 | TSC 4-2 | SR TC-4 HW 3.0 |
For inserts, see pages: SCMT-SM (164) • SCGT-AS (172) • SCMT-14 (165) • SCMT-19 (165)
45° l2 45°
SSSCR/L
h h 45° Lead Angle Screw Lock Tools Carrying Square Inserts
| with 7° Clearance Angle | f | b | ||
| l1 | ||||
| Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||
| SSSCR/L 1212F-09 | 12.0 | 12.0 | 80.00 | 18.0 | 16.0 | 0 | 0 | SC.. 09T3 SR 16-236 T-15/5 | ||
| SSSCR/L 1616H-09 | 16.0 | 16.0 | 100.00 | 18.0 | 20.0 | 0 | 0 | SC.. 09T3 SR 16-236 T-15/5 | ||
| SSSCR/L 2020K-12 | 20.0 | 20.0 | 125.00 | 22.0 | 25.0 | 0 | 0 | SC.. 1204 SR 16-212 T-20/5 | ||
| SSSCR/L 2525M-12 | 25.0 | 25.0 | 150.00 | 25.0 | 32.0 | 0 | 0 | SC.. 1204 SR 16-212 T-20/5 TSC 4-2 | SR TC-4 | HW 3.0 |
For inserts, see pages: SCMT-SM (164) • SCGT-AS (172) • SCMT-14 (165) • SCMT-19 (165)
l 91° 2
STFCR/L
h h Screw Lock Tools Carrying Triangular Inserts with 7° Clearance
| Angle for Face Turning | f | b | ||
| l1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||
| STFCR/L 1212F-11 | 12.0 | 12.0 | 80.00 | 13.0 | 16.0 | 0 | 0 | TC.. 1102 SR 14-548 | T-7/5 | |
| STFCR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 18.0 | 25.0 | 0 | 0 | TC.. 16T3 SR 16-236 T-15/5 | ||
| STFCR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 20.0 | 32.0 | 0 | 0 | TC.. 16T3 SR 16-236 T-15/5 TTC 3-2 SR TC-3 HW 2.5 |
For inserts, see pages: TCMT-F3P (165) • TCMT-PF (166) • TCMT-SM (166) • TCGT-AS (173) • TCMT (CBN) (195) • TCMT (PCD) (186)
l 2 STGCR/L 91° h h 91° Lead Angle Screw Lock Tools Carrying Triangular Inserts
| with 7° Clearance Angle | f | b | ||
| l 1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||
| STGCR/L 1212F-11 | 12.0 | 12.0 | 80.00 | 13.0 | 16.0 | 0 | 0 | TC.. 1102 SR 14-548 | T-7/5 | |
| STGCR/L 1616H-11 | 16.0 | 16.0 | 100.00 | 13.0 | 20.0 | 0 | 0 | TC.. 1102 SR 14-548 | T-7/5 | |
| STGCR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 18.0 | 25.0 | 0 | 0 | TC.. 16T3 SR 16-236 T-15/5 | ||
| STGCR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 18.0 | 32.0 | 0 | 0 | TC.. 16T3 SR 16-236 T-15/5 TTC 3-2 SR TC-3 HW 2.5 |
For inserts, see pages: TCMT-F3P (165) • TCMT-PF (166) • TCMT-SM (166) • TCGT-AS (173) • TCMT (CBN) (195) • TCMT (PCD) (186)
