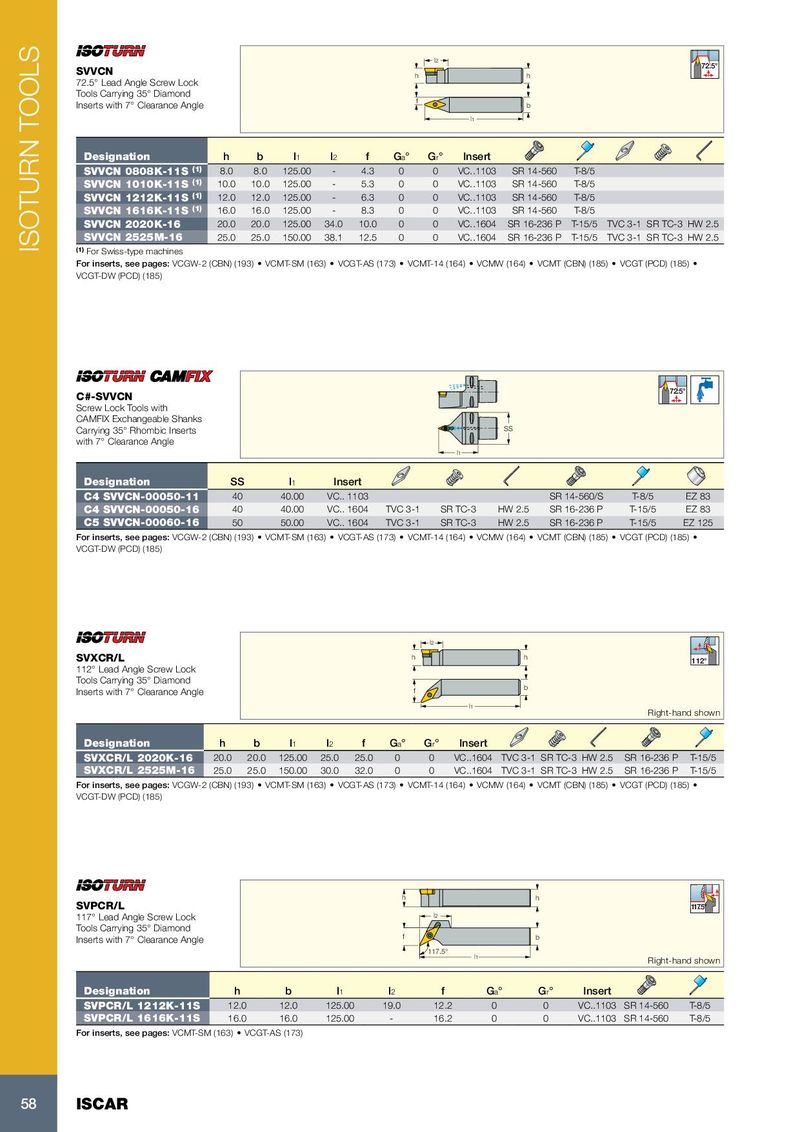

| SVVCN 72.5° Lead Angle Screw Lock | h | l2 | h | 72.5° | ||||||||
| Tools Carrying 35° Diamond | ||||||||||||
| Inserts with 7° Clearance Angle | f | l1 | b | |||||||||
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||||
| SVVCN 0808K-11S(1) | 8.0 | 8.0 | 125.00 | - | 4.3 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | ||
| SVVCN 1010K-11S(1) | 10.0 | 10.0 | 125.00 | - | 5.3 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | ||
| SVVCN 1212K-11S(1) | 12.0 | 12.0 | 125.00 | - | 6.3 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | ||
| SVVCN 1616K-11S(1) | 16.0 | 16.0 | 125.00 | - | 8.3 | 0 | 0 | VC..1103 | SR 14-560 | T-8/5 | ||
| SVVCN 2020K-16 | 20.0 | 20.0 | 125.00 | 34.0 | 10.0 | 0 | 0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 SR TC-3 | HW 2.5 |
| SVVCN 2525M-16 | 25.0 | 25.0 | 150.00 | 38.1 | 12.5 | 0 | 0 | VC..1604 | SR 16-236 P | T-15/5 | TVC 3-1 SR TC-3 | HW 2.5 |
(1) For Swiss-type machines For inserts, see pages: VCGW-2 (CBN) (193) • VCMT-SM (163) • VCGT-AS (173) • VCMT-14 (164) • VCMW (164) • VCMT (CBN) (185) • VCGT (PCD) (185) • VCGT-DW (PCD) (185)
| C#-SVVCN Screw Lock Tools with | 72.5° | ||||||||
| CAMFIX Exchangeable Shanks Carrying 35° Rhombic Inserts with 7° Clearance Angle | l1 | SS | |||||||
| Designation | SS | l1 | Insert | ||||||
| C4 SVVCN-00050-11 | 40 | 40.00 | VC.. 1103 | SR 14-560/S | T-8/5 | EZ 83 | |||
| C4 SVVCN-00050-16 | 40 | 40.00 | VC.. 1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 83 |
| C5 SVVCN-00060-16 | 50 | 50.00 | VC.. 1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 | EZ 125 |
For inserts, see pages: VCGW-2 (CBN) (193) • VCMT-SM (163) • VCGT-AS (173) • VCMT-14 (164) • VCMW (164) • VCMT (CBN) (185) • VCGT (PCD) (185) • VCGT-DW (PCD) (185)
| l2 | ||||||||||||
| SVXCR/L | h | h | 112° | |||||||||
| 112° Lead Angle Screw Lock | ||||||||||||
| Tools Carrying 35° Diamond Inserts with 7° Clearance Angle | f | l1 | b | Right-ha | nd shown | |||||||
| Designation | h | b | l1 | l2 | f | Ga° Gr° | Insert | |||||
| SVXCR/L 2020K-16 | 20.0 | 20.0 | 125.00 | 25.0 | 25.0 | 0 0 | VC..1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 |
| SVXCR/L 2525M-16 | 25.0 | 25.0 | 150.00 | 30.0 | 32.0 | 0 0 | VC..1604 | TVC 3-1 | SR TC-3 | HW 2.5 | SR 16-236 P | T-15/5 |
For inserts, see pages: VCGW-2 (CBN) (193) • VCMT-SM (163) • VCGT-AS (173) • VCMT-14 (164) • VCMW (164) • VCMT (CBN) (185) • VCGT (PCD) (185) • VCGT-DW (PCD) (185)
h h SVPCR/L 117.5° 117° Lead Angle Screw Lock l 2 Tools Carrying 35° Diamond
| Inserts with 7° Clearance Angle | f | b | |||
| 117.5° | |||||
| l1 | Right-hand shown |
| Designation | h | b | l1 | l2 | f | Ga° | Gr° | Insert | ||
| SVPCR/L 1212K-11S | 12.0 | 12.0 | 125.00 | 19.0 | 12.2 | 0 | 0 | VC..1103 SR 14-560 | T-8/5 | |
| SVPCR/L 1616K-11S | 16.0 | 16.0 | 125.00 | - | 16.2 | 0 | 0 | VC..1103 SR 14-560 | T-8/5 |
For inserts, see pages: VCMT-SM (163) • VCGT-AS (173)
