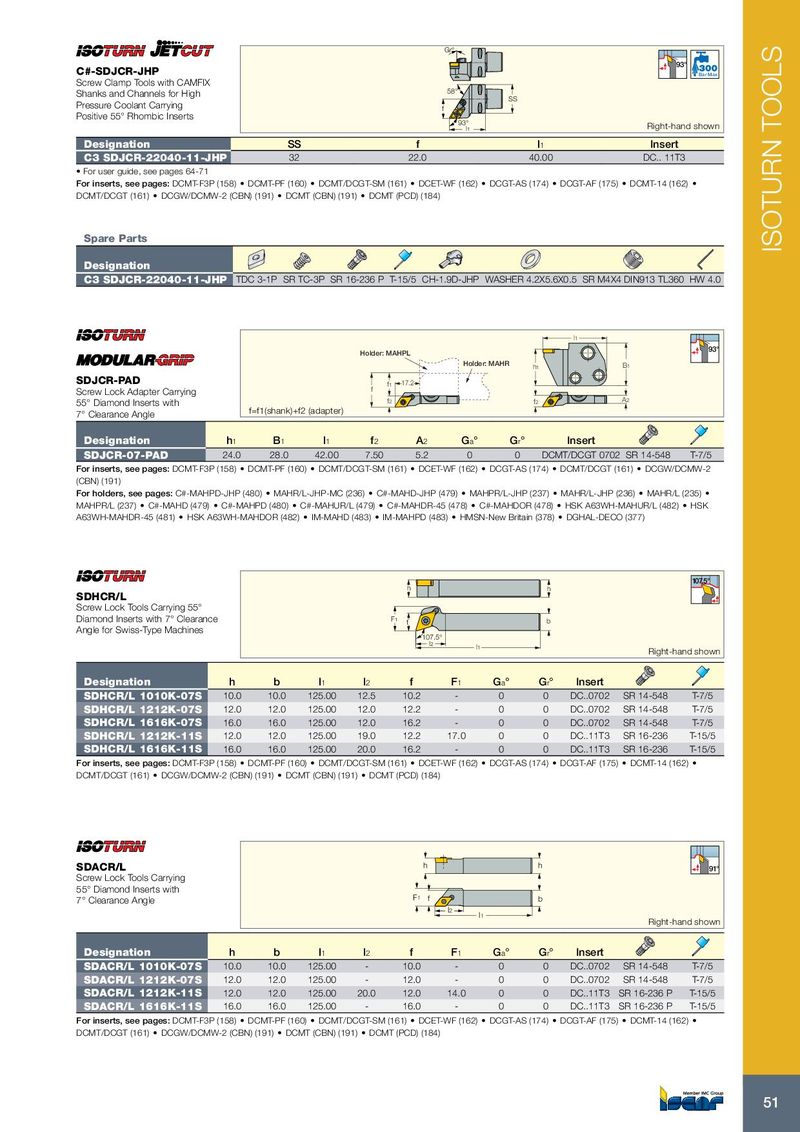

| C#-SDJCR-JHP Screw Clamp Tools with CAMFIX Shanks and Channels for High | Gr° 58° SS | 93° Bar Max | |
| Pressure Coolant Carrying | f | ||
| Positive 55° Rhombic Inserts | 93° l1 | Right-hand shown | |
| Designation | SS | f l1 | Insert |
| C3 SDJCR-22040-11-JHP | 32 | 22.0 40.00 | DC.. 11T3 |
- For user guide, see pages 64-71
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCET-WF (162) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
Spare Parts
Designation
C3 SDJCR-22040-11-JHP TDC 3-1P SR TC-3P SR 16-236 P T-15/5 CH-1.9D-JHP WASHER 4.2X5.6X0.5 SR M4X4 DIN913 TL360 HW 4.0
l1 93° Holder: MAHPL
| Holder: MAHR h | B | ||
| 1 | 1 | ||
| SDJCR-PAD | |||
| f1 | 17.2 | ||
| Screw Lock Adapter Carrying | f | ||
| 55° Diamond Inserts with | f2 | f | A2 |
| 2 | |||
| 7° Clearance Angle | f=f1(shank)+f2 (adapter) |
| Designation | h1 | B1 | l1 | f2 | A2 | Ga° | Gr° | Insert | ||
| SDJCR-07-PAD | 24.0 | 28.0 | 42.00 | 7.50 | 5.2 | 0 | 0 | DCMT/DCGT 0702 SR 14-548 | T-7/5 |
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCET-WF (162) DCGT-AS (174) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) For holders, see pages: C#-MAHPD-JHP (480) MAHR/L-JHP-MC (236) C#-MAHD-JHP (479) MAHPR/L-JHP (237) MAHR/L-JHP (236) MAHR/L (235) MAHPR/L (237) C#-MAHD (479) C#-MAHPD (480) C#-MAHUR/L (479) C#-MAHDR-45 (478) C#-MAHDOR (478) HSK A63WH-MAHUR/L (482) HSK
A63WH-MAHDR-45 (481) HSK A63WH-MAHDOR (482) IM-MAHD (483) IM-MAHPD (483) HMSN-New Britain (378) DGHAL-DECO (377)
| SDHCR/L | h | h | 107.5° | ||||||||
| Screw Lock Tools Carrying 55° | |||||||||||
| Diamond Inserts with 7° Clearance Angle for Swiss-Type Machines | l2 107.5 f F1 | l1 ° | b | Right-h | and shown | ||||||
| Designation | h | b | l1 | l2 | f | F1 | Ga° | Gr° | Insert | ||
| SDHCR/L 1010K-07S | 10.0 | 10.0 | 125.00 | 12.5 | 10.2 | - | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 |
| SDHCR/L 1212K-07S | 12.0 | 12.0 | 125.00 | 12.0 | 12.2 | - | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 |
| SDHCR/L 1616K-07S | 16.0 | 16.0 | 125.00 | 12.0 | 16.2 | - | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 |
| SDHCR/L 1212K-11S | 12.0 | 12.0 | 125.00 | 19.0 | 12.2 | 17.0 | 0 | 0 | DC..11T3 | SR 16-236 | T-15/5 |
| SDHCR/L 1616K-11S | 16.0 | 16.0 | 125.00 | 20.0 | 16.2 | - | 0 | 0 | DC..11T3 | SR 16-236 | T-15/5 |
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCET-WF (162) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
| SDACR/L | h | 91° h |
| Screw Lock Tools Carrying | ||
| 55° Diamond Inserts with | ||
| 7° Clearance Angle | F1 f | b |
| l2 | ||
| l1 | ||
| Right-hand shown |
| Designation | h | b | l1 | l2 | f | F 1 | Ga° | Gr° | Insert | ||
| SDACR/L 1010K-07S | 10.0 | 10.0 | 125.00 | - | 10.0 | - | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 |
| SDACR/L 1212K-07S | 12.0 | 12.0 | 125.00 | - | 12.0 | - | 0 | 0 | DC..0702 | SR 14-548 | T-7/5 |
| SDACR/L 1212K-11S | 12.0 | 12.0 | 125.00 | 20.0 | 12.0 | 14.0 | 0 | 0 | DC..11T3 SR 16-236 P | T-15/5 | |
| SDACR/L 1616K-11S | 16.0 | 16.0 | 125.00 | - | 16.0 | - | 0 | 0 | DC..11T3 SR 16-236 P | T-15/5 |
For inserts, see pages: DCMT-F3P (158) DCMT-PF (160) DCMT/DCGT-SM (161) DCET-WF (162) DCGT-AS (174) DCGT-AF (175) DCMT-14 (162) DCMT/DCGT (161) DCGW/DCMW-2 (CBN) (191) DCMT (CBN) (191) DCMT (PCD) (184)
