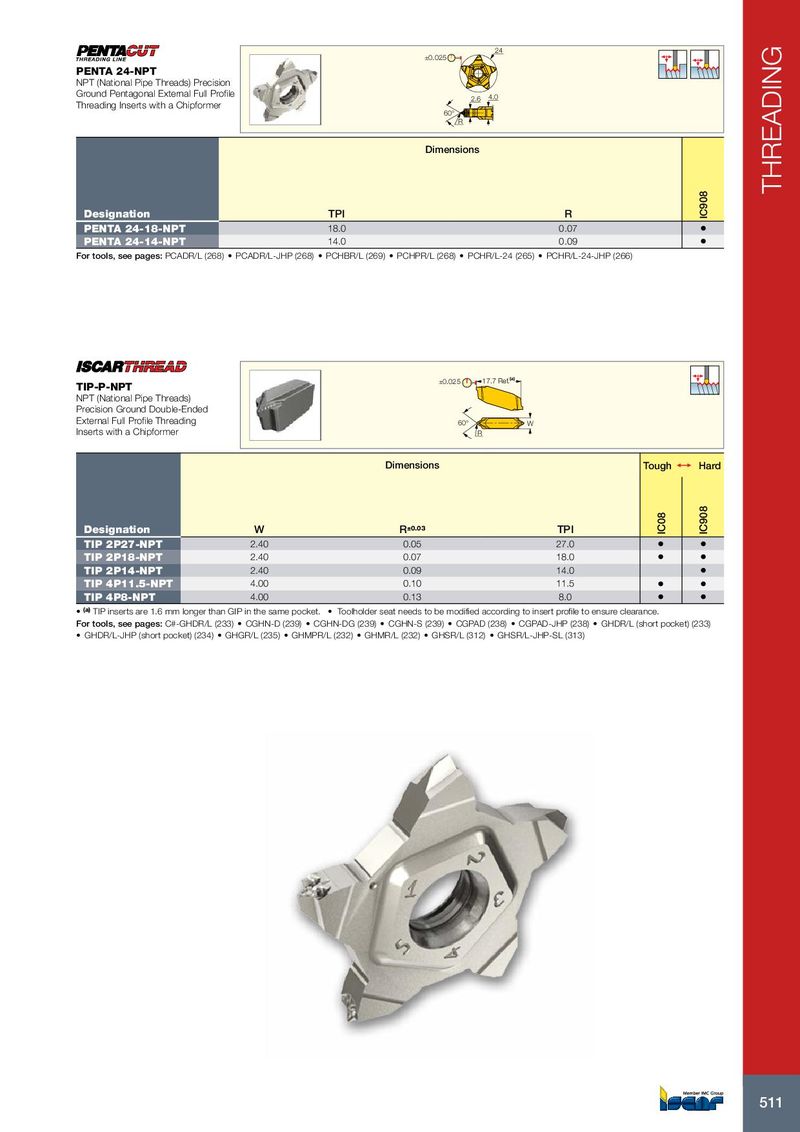

THREADING
24
±0.025
PENTA 24-NPT
NPT (National Pipe Threads) Precision
Ground Pentagonal External Full Profile 2.6 4.0
Threading Inserts with a Chipformer
60°
R

Dimensions


IC908
Designation TPI R
PENTA 24-18-NPT 18.0 0.07 •
PENTA 24-14-NPT 14.0 0.09 •
For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266)


±0.025 17.7 Ref.(a)
TIP-P-NPT
NPT (National Pipe Threads)
Precision Ground Double-Ended
External Full Profile Threading 60° W
Inserts with a Chipformer R

Dimensions Tough 1 Hard


IC908
IC08
Designation W R±0.03 TPI
TIP 2P27-NPT 2.40 0.05 27.0 • •
TIP 2P18-NPT 2.40 0.07 18.0 • •
TIP 2P14-NPT 2.40 0.09 14.0 •
TIP 4P11.5-NPT 4.00 0.10 11.5 • •
TIP 4P8-NPT 4.00 0.13 8.0 • •
• (a) TIP inserts are 1.6 mm longer than GIP in the same pocket. • Toolholder seat needs to be modified according to insert profile to ensure clearance.
For tools, see pages: C#-GHDR/L (233) • CGHN-D (239) • CGHN-DG (239) • CGHN-S (239) • CGPAD (238) • CGPAD-JHP (238) • GHDR/L (short pocket) (233)
• GHDR/L-JHP (short pocket) (234) • GHGR/L (235) • GHMPR/L (232) • GHMR/L (232) • GHSR/L (312) • GHSR/L-JHP-SL (313)
