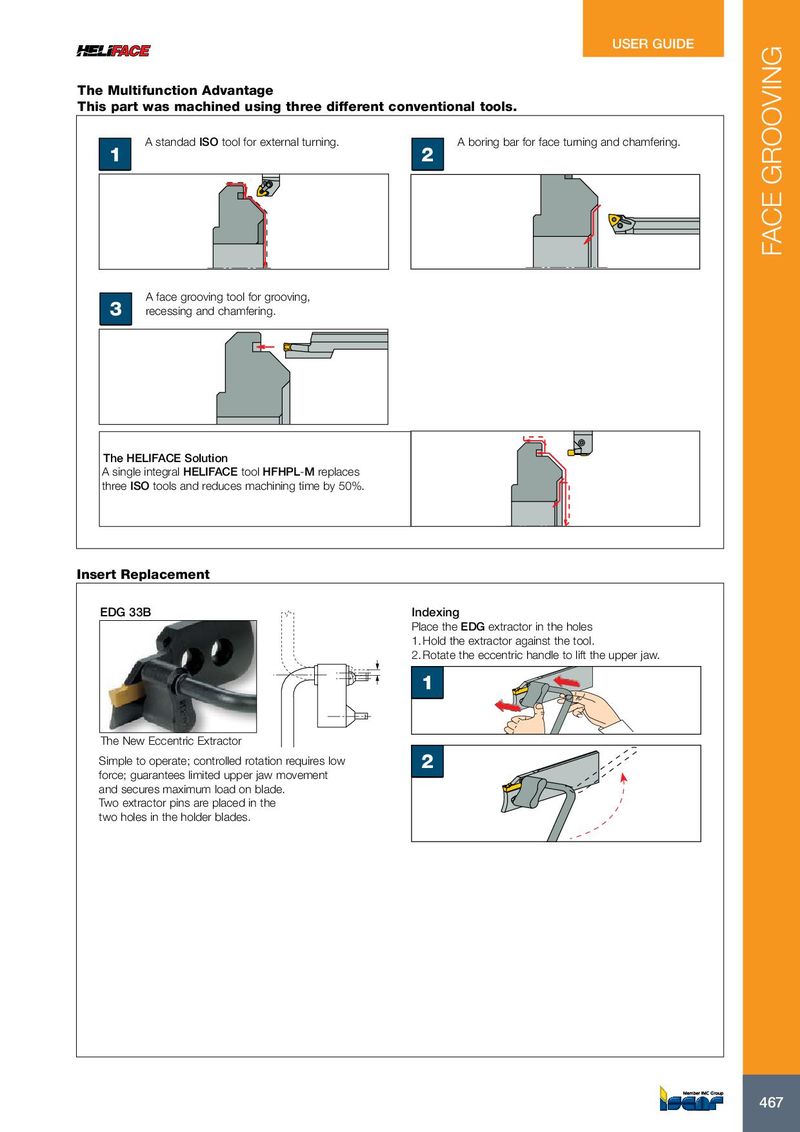

USER GUIDE The Multifunction Advantage This part was machined using three different conventional tools. A standad ISO tool for external turning. A boring bar for face turning and chamfering. 1 2 FACE GROOVING A face grooving tool for grooving, 3 recessing and chamfering. The HELIFACE Solution A single integral HELIFACE tool HFHPL-M replaces three ISO tools and reduces machining time by 50%. Insert Replacement EDG 33B Indexing Place the EDG extractor in the holes 1. Hold the extractor against the tool. 2. Rotate the eccentric handle to lift the upper jaw. 1 The New Eccentric Extractor Simple to operate; controlled rotation requires low 2 force; guarantees limited upper jaw movement and secures maximum load on blade. Two extractor pins are placed in the two holes in the holder blades. 467 467
