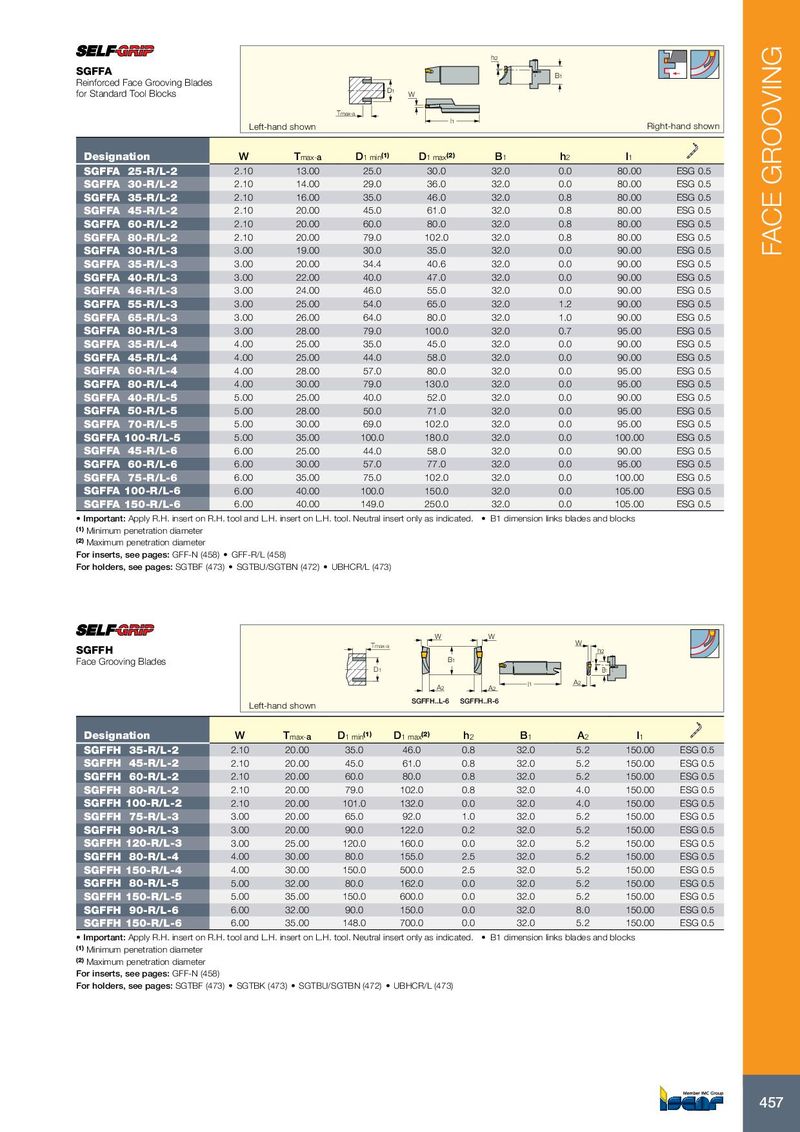

| SGFFA Reinforced Face Grooving Blades for Standard Tool Blocks | Left-h | and shown | Tmax-a D1 | W l1 | h2 | B1 | Right-hand shown | |
| Designation | W | Tmax-a | D1 min(1) | D1 max(2) | B1 | h2 | l1 | |
| SGFFA 25-R/L-2 | 2.10 | 13.00 | 25.0 | 30.0 | 32.0 | 0.0 | 80.00 | ESG 0.5 |
| SGFFA 30-R/L-2 | 2.10 | 14.00 | 29.0 | 36.0 | 32.0 | 0.0 | 80.00 | ESG 0.5 |
| SGFFA 35-R/L-2 | 2.10 | 16.00 | 35.0 | 46.0 | 32.0 | 0.8 | 80.00 | ESG 0.5 |
| SGFFA 45-R/L-2 | 2.10 | 20.00 | 45.0 | 61.0 | 32.0 | 0.8 | 80.00 | ESG 0.5 |
| SGFFA 60-R/L-2 | 2.10 | 20.00 | 60.0 | 80.0 | 32.0 | 0.8 | 80.00 | ESG 0.5 |
| SGFFA 80-R/L-2 | 2.10 | 20.00 | 79.0 | 102.0 | 32.0 | 0.8 | 80.00 | ESG 0.5 |
| SGFFA 30-R/L-3 | 3.00 | 19.00 | 30.0 | 35.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 35-R/L-3 | 3.00 | 20.00 | 34.4 | 40.6 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 40-R/L-3 | 3.00 | 22.00 | 40.0 | 47.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 46-R/L-3 | 3.00 | 24.00 | 46.0 | 55.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 55-R/L-3 | 3.00 | 25.00 | 54.0 | 65.0 | 32.0 | 1.2 | 90.00 | ESG 0.5 |
| SGFFA 65-R/L-3 | 3.00 | 26.00 | 64.0 | 80.0 | 32.0 | 1.0 | 90.00 | ESG 0.5 |
| SGFFA 80-R/L-3 | 3.00 | 28.00 | 79.0 | 100.0 | 32.0 | 0.7 | 95.00 | ESG 0.5 |
| SGFFA 35-R/L-4 | 4.00 | 25.00 | 35.0 | 45.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 45-R/L-4 | 4.00 | 25.00 | 44.0 | 58.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 60-R/L-4 | 4.00 | 28.00 | 57.0 | 80.0 | 32.0 | 0.0 | 95.00 | ESG 0.5 |
| SGFFA 80-R/L-4 | 4.00 | 30.00 | 79.0 | 130.0 | 32.0 | 0.0 | 95.00 | ESG 0.5 |
| SGFFA 40-R/L-5 | 5.00 | 25.00 | 40.0 | 52.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 50-R/L-5 | 5.00 | 28.00 | 50.0 | 71.0 | 32.0 | 0.0 | 95.00 | ESG 0.5 |
| SGFFA 70-R/L-5 | 5.00 | 30.00 | 69.0 | 102.0 | 32.0 | 0.0 | 95.00 | ESG 0.5 |
| SGFFA 100-R/L-5 | 5.00 | 35.00 | 100.0 | 180.0 | 32.0 | 0.0 | 100.00 | ESG 0.5 |
| SGFFA 45-R/L-6 | 6.00 | 25.00 | 44.0 | 58.0 | 32.0 | 0.0 | 90.00 | ESG 0.5 |
| SGFFA 60-R/L-6 | 6.00 | 30.00 | 57.0 | 77.0 | 32.0 | 0.0 | 95.00 | ESG 0.5 |
| SGFFA 75-R/L-6 | 6.00 | 35.00 | 75.0 | 102.0 | 32.0 | 0.0 | 100.00 | ESG 0.5 |
| SGFFA 100-R/L-6 | 6.00 | 40.00 | 100.0 | 150.0 | 32.0 | 0.0 | 105.00 | ESG 0.5 |
| SGFFA 150-R/L-6 | 6.00 | 40.00 | 149.0 | 250.0 | 32.0 | 0.0 | 105.00 | ESG 0.5 |
- Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated.
- B1 dimension links blades and blocks
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: GFF-N (458) GFF-R/L (458) For holders, see pages: SGTBF (473) SGTBU/SGTBN (472) UBHCR/L (473)
| SGFFH Face Grooving Blades | Left- | hand shown | D1 Tmax | A2 SGFFH..L W -a | -6 SGFFH.. B1 | A2 l1 R-6 W | W h2 B1 A2 | ||
| Designation | W | Tmax-a | D1 min(1) | D1 max(2) | h2 | B1 | A2 | l1 | |
| SGFFH 35-R/L-2 | 2.10 | 20.00 | 35.0 | 46.0 | 0.8 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 45-R/L-2 | 2.10 | 20.00 | 45.0 | 61.0 | 0.8 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 60-R/L-2 | 2.10 | 20.00 | 60.0 | 80.0 | 0.8 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 80-R/L-2 | 2.10 | 20.00 | 79.0 | 102.0 | 0.8 | 32.0 | 4.0 | 150.00 | ESG 0.5 |
| SGFFH 100-R/L-2 | 2.10 | 20.00 | 101.0 | 132.0 | 0.0 | 32.0 | 4.0 | 150.00 | ESG 0.5 |
| SGFFH 75-R/L-3 | 3.00 | 20.00 | 65.0 | 92.0 | 1.0 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 90-R/L-3 | 3.00 | 20.00 | 90.0 | 122.0 | 0.2 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 120-R/L-3 | 3.00 | 25.00 | 120.0 | 160.0 | 0.0 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 80-R/L-4 | 4.00 | 30.00 | 80.0 | 155.0 | 2.5 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 150-R/L-4 | 4.00 | 30.00 | 150.0 | 500.0 | 2.5 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 80-R/L-5 | 5.00 | 32.00 | 80.0 | 162.0 | 0.0 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 150-R/L-5 | 5.00 | 35.00 | 150.0 | 600.0 | 0.0 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
| SGFFH 90-R/L-6 | 6.00 | 32.00 | 90.0 | 150.0 | 0.0 | 32.0 | 8.0 | 150.00 | ESG 0.5 |
| SGFFH 150-R/L-6 | 6.00 | 35.00 | 148.0 | 700.0 | 0.0 | 32.0 | 5.2 | 150.00 | ESG 0.5 |
- Important: Apply R.H. insert on R.H. tool and L.H. insert on L.H. tool. Neutral insert only as indicated.
- B1 dimension links blades and blocks
(1) Minimum penetration diameter (2) Maximum penetration diameter For inserts, see pages: GFF-N (458) For holders, see pages: SGTBF (473) SGTBK (473) SGTBU/SGTBN (472) UBHCR/L (473)
