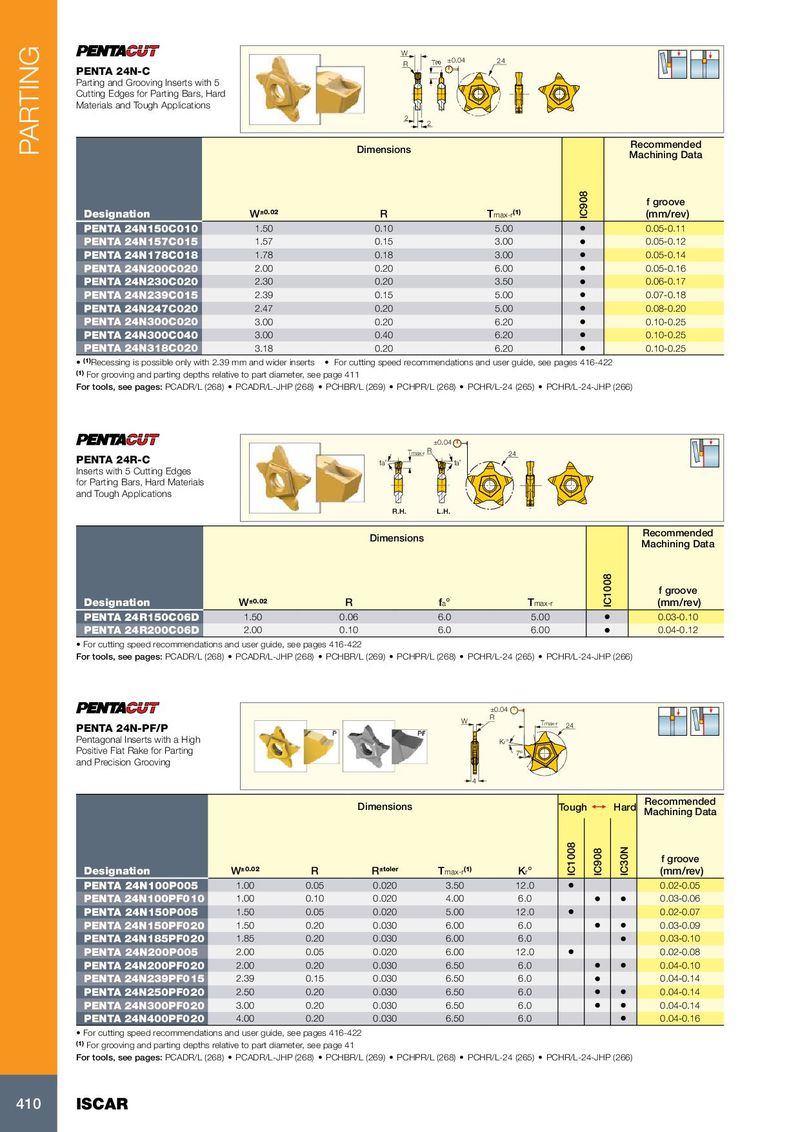

W R T (1) ±0.04 24 PENTA 24N-C Parting and Grooving Inserts with 5 Cutting Edges for Parting Bars, Hard Materials and Tough Applications 2 2 Recommended PARTING Dimensions Machining Data f groove Designation W ±0.02 R T max-r (1) IC908 (mm/rev) PENTA 24N150C010 1.50 0.10 5.00 • 0.05-0.11 PENTA 24N157C015 1.57 0.15 3.00 • 0.05-0.12 PENTA 24N178C018 1.78 0.18 3.00 • 0.05-0.14 PENTA 24N200C020 2.00 0.20 6.00 • 0.05-0.16 PENTA 24N230C020 2.30 0.20 3.50 • 0.06-0.17 PENTA 24N239C015 2.39 0.15 5.00 • 0.07-0.18 PENTA 24N247C020 2.47 0.20 5.00 • 0.08-0.20 PENTA 24N300C020 3.00 0.20 6.20 • 0.10-0.25 PENTA 24N300C040 3.00 0.40 6.20 • 0.10-0.25 PENTA 24N318C020 3.18 0.20 6.20 • 0.10-0.25 • (1) Recessing is possible only with 2.39 mm and wider inserts • For cutting speed recommendations and user guide, see pages 416-422 (1) For grooving and parting depths relative to part diameter, see page 411 For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266) ±0.04 Tmax-r R 24 PENTA 24R-C fa˚ fa˚ Inserts with 5 Cutting Edges for Parting Bars, Hard Materials and Tough Applications R.H. L.H. Recommended Dimensions Machining Data f groove Designation W ±0.02 R f a ° T max-r IC1008 (mm/rev) PENTA 24R150C06D 1.50 0.06 6.0 5.00 • 0.03-0.10 PENTA 24R200C06D 2.00 0.10 6.0 6.00 • 0.04-0.12 • For cutting speed recommendations and user guide, see pages 416-422 For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266) ±0.04 W R Tmax-r PENTA 24N-PF/P 24 Pentagonal Inserts with a High Kr° Positive Flat Rake for Parting 7º and Precision Grooving 4 Recommended Dimensions Tough 1  Hard Machining Data f groove Designation W ±0.02 R R ±toler T max-r (1) K r ° IC1008 IC908 IC30N (mm/rev) PENTA 24N100P005 1.00 0.05 0.020 3.50 12.0 • 0.02-0.05 PENTA 24N100PF010 1.00 0.10 0.020 4.00 6.0 • • 0.03-0.06 PENTA 24N150P005 1.50 0.05 0.020 5.00 12.0 • 0.02-0.07 PENTA 24N150PF020 1.50 0.20 0.030 6.00 6.0 • • 0.03-0.09 PENTA 24N185PF020 1.85 0.20 0.030 6.00 6.0 • 0.03-0.10 PENTA 24N200P005 2.00 0.05 0.020 6.00 12.0 • 0.02-0.08 PENTA 24N200PF020 2.00 0.20 0.030 6.50 6.0 • • 0.04-0.10 PENTA 24N239PF015 2.39 0.15 0.030 6.50 6.0 • 0.04-0.14 PENTA 24N250PF020 2.50 0.20 0.030 6.50 6.0 • • 0.04-0.14 PENTA 24N300PF020 3.00 0.20 0.030 6.50 6.0 • • 0.04-0.14 PENTA 24N400PF020 4.00 0.20 0.030 6.50 6.0 • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 416-422 (1) For grooving and parting depths relative to part diameter, see page 41 For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266) 410 ISCAR
