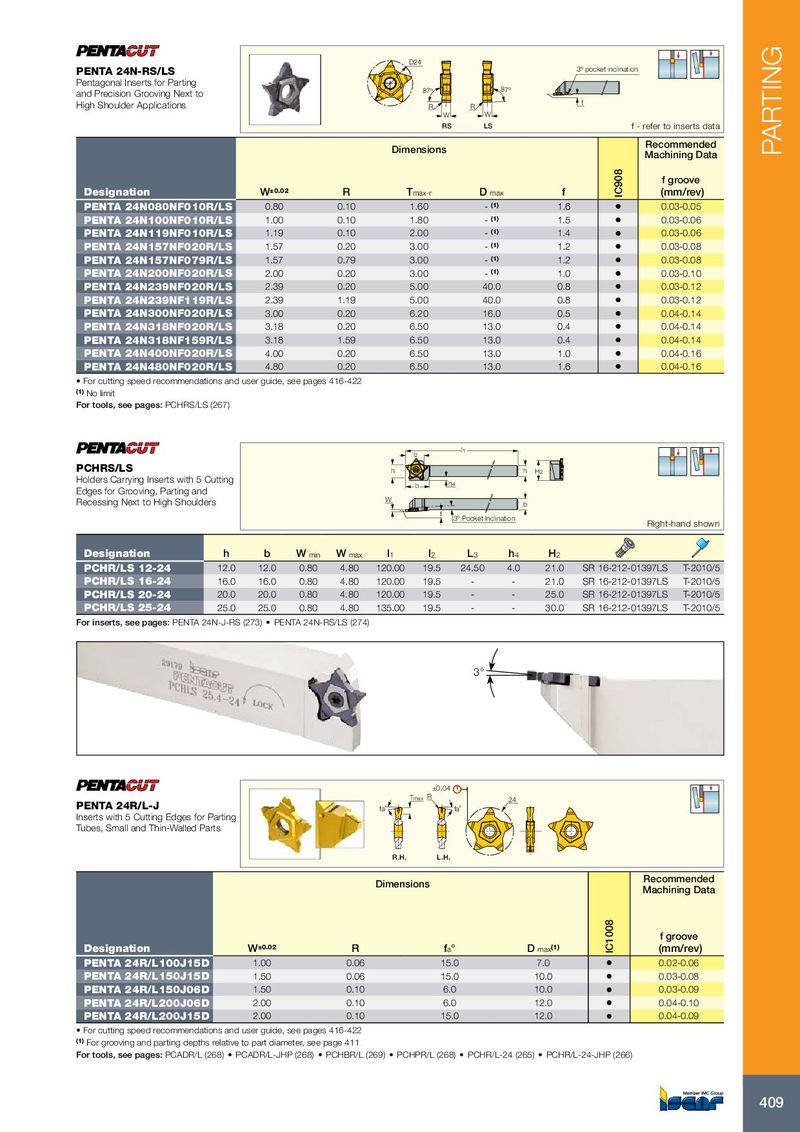

D24 PENTA 24N-RS/LS 3º pocket inclination Pentagonal Inserts for Parting and Precision Grooving Next to 87º 87º High Shoulder Applications R R f W W RS LS f - refer to inserts data Recommended Dimensions Machining Data PARTING f groove Designation W ±0.02 R T max-r D max f IC908 (mm/rev) PENTA 24N080NF010R/LS 0.80 0.10 1.60 - (1) 1.6 • 0.03-0.05 PENTA 24N100NF010R/LS 1.00 0.10 1.80 - (1) 1.5 • 0.03-0.06 PENTA 24N119NF010R/LS 1.19 0.10 2.00 - (1) 1.4 • 0.03-0.06 PENTA 24N157NF020R/LS 1.57 0.20 3.00 - (1) 1.2 • 0.03-0.08 PENTA 24N157NF079R/LS 1.57 0.79 3.00 - (1) 1.2 • 0.03-0.08 PENTA 24N200NF020R/LS 2.00 0.20 3.00 - (1) 1.0 • 0.03-0.10 PENTA 24N239NF020R/LS 2.39 0.20 5.00 40.0 0.8 • 0.03-0.12 PENTA 24N239NF119R/LS 2.39 1.19 5.00 40.0 0.8 • 0.03-0.12 PENTA 24N300NF020R/LS 3.00 0.20 6.20 16.0 0.5 • 0.04-0.14 PENTA 24N318NF020R/LS 3.18 0.20 6.50 13.0 0.4 • 0.04-0.14 PENTA 24N318NF159R/LS 3.18 1.59 6.50 13.0 0.4 • 0.04-0.14 PENTA 24N400NF020R/LS 4.00 0.20 6.50 13.0 1.0 • 0.04-0.16 PENTA 24N480NF020R/LS 4.80 0.20 6.50 13.0 1.6 • 0.04-0.16 • For cutting speed recommendations and user guide, see pages 416-422 (1) No limit For tools, see pages: PCHRS/LS (267) l1 l2 PCHRS/LS h h H2 Holders Carrying Inserts with 5 Cutting l3 h4 Edges for Grooving, Parting and Recessing Next to High Shoulders W b f 3º Pocket Inclination Right-hand shown Designation h b W min W max l 1 l 2 L 3 h 4 H 2 PCHR/LS 12-24 12.0 12.0 0.80 4.80 120.00 19.5 24.50 4.0 21.0 SR 16-212-01397LS T-2010/5 PCHR/LS 16-24 16.0 16.0 0.80 4.80 120.00 19.5 - - 21.0 SR 16-212-01397LS T-2010/5 PCHR/LS 20-24 20.0 20.0 0.80 4.80 120.00 19.5 - - 25.0 SR 16-212-01397LS T-2010/5 PCHR/LS 25-24 25.0 25.0 0.80 4.80 135.00 19.5 - - 30.0 SR 16-212-01397LS T-2010/5 For inserts, see pages: PENTA 24N-J-RS (273) • PENTA 24N-RS/LS (274) 3° ±0.04 Tmax R 24 PENTA 24R/L-J fa˚ fa˚ Inserts with 5 Cutting Edges for Parting Tubes, Small and Thin-Walled Parts R.H. L.H. Recommended Dimensions Machining Data f groove Designation W ±0.02 R f a ° D max (1) IC1008 (mm/rev) PENTA 24R/L100J15D 1.00 0.06 15.0 7.0 • 0.02-0.06 PENTA 24R/L150J15D 1.50 0.06 15.0 10.0 • 0.03-0.08 PENTA 24R/L150J06D 1.50 0.10 6.0 10.0 • 0.03-0.09 PENTA 24R/L200J06D 2.00 0.10 6.0 12.0 • 0.04-0.10 PENTA 24R/L200J15D 2.00 0.10 15.0 12.0 • 0.04-0.09 • For cutting speed recommendations and user guide, see pages 416-422 (1) For grooving and parting depths relative to part diameter, see page 411 For tools, see pages: PCADR/L (268) • PCADR/L-JHP (268) • PCHBR/L (269) • PCHPR/L (268) • PCHR/L-24 (265) • PCHR/L-24-JHP (266) 409
