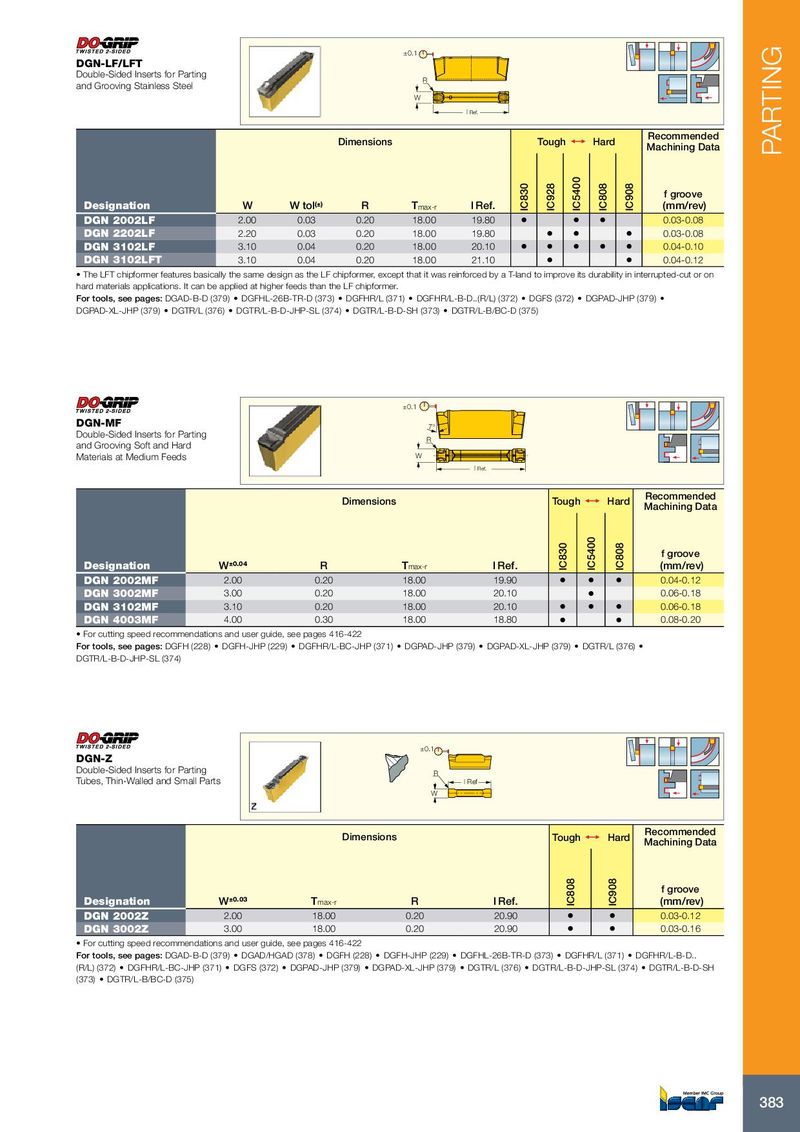

PARTING
±0.1
DGN-LF/LFT
Double-Sided Inserts for Parting
R
and Grooving Stainless Steel
W
l Ref.

Recommended
Dimensions Tough 1 Hard
Machining Data


IC5400
IC830
IC928


IC808
IC908
f groove
Designation W W tol(±) R Tmax-r l Ref. (mm/rev)
DGN 2002LF 2.00 0.03 0.20 18.00 19.80 • • • 0.03-0.08
DGN 2202LF 2.20 0.03 0.20 18.00 19.80 • • • 0.03-0.08
DGN 3102LF 3.10 0.04 0.20 18.00 20.10 • • • • • 0.04-0.10
DGN 3102LFT 3.10 0.04 0.20 18.00 21.10 • • 0.04-0.12
• The LFT chipformer features basically the same design as the LF chipformer, except that it was reinforced by a T-land to improve its durability in interrupted-cut or on
hard materials applications. It can be applied at higher feeds than the LF chipformer.
For tools, see pages: DGAD-B-D (379) • DGFHL-26B-TR-D (373) • DGFHR/L (371) • DGFHR/L-B-D..(R/L) (372) • DGFS (372) • DGPAD-JHP (379) •
DGPAD-XL-JHP (379) • DGTR/L (376) • DGTR/L-B-D-JHP-SL (374) • DGTR/L-B-D-SH (373) • DGTR/L-B/BC-D (375)


±0.1
DGN-MF 7°
Double-Sided Inserts for Parting
R
and Grooving Soft and Hard
Materials at Medium Feeds W
l Ref.

Recommended
Dimensions Tough 1 Hard
Machining Data


IC5400
IC830


IC808
f groove
Designation W±0.04 R Tmax-r l Ref. (mm/rev)
DGN 2002MF 2.00 0.20 18.00 19.90 • • • 0.04-0.12
DGN 3002MF 3.00 0.20 18.00 20.10 • 0.06-0.18
DGN 3102MF 3.10 0.20 18.00 20.10 • • • 0.06-0.18
DGN 4003MF 4.00 0.30 18.00 18.80 • • 0.08-0.20
• For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: DGFH (228) • DGFH-JHP (229) • DGFHR/L-BC-JHP (371) • DGPAD-JHP (379) • DGPAD-XL-JHP (379) • DGTR/L (376) •
DGTR/L-B-D-JHP-SL (374)


±0.1
DGN-Z
Double-Sided Inserts for Parting R
Tubes, Thin-Walled and Small Parts l Ref
W


Recommended
Dimensions Tough 1 Hard
Machining Data
IC808

IC908


f groove
Designation W±0.03 Tmax-r R l Ref. (mm/rev)
DGN 2002Z 2.00 18.00 0.20 20.90 • • 0.03-0.12
DGN 3002Z 3.00 18.00 0.20 20.90 • • 0.03-0.16
• For cutting speed recommendations and user guide, see pages 416-422
For tools, see pages: DGAD-B-D (379) • DGAD/HGAD (378) • DGFH (228) • DGFH-JHP (229) • DGFHL-26B-TR-D (373) • DGFHR/L (371) • DGFHR/L-B-D..
(R/L) (372) • DGFHR/L-BC-JHP (371) • DGFS (372) • DGPAD-JHP (379) • DGPAD-XL-JHP (379) • DGTR/L (376) • DGTR/L-B-D-JHP-SL (374) • DGTR/L-B-D-SH
(373) • DGTR/L-B/BC-D (375)


383
