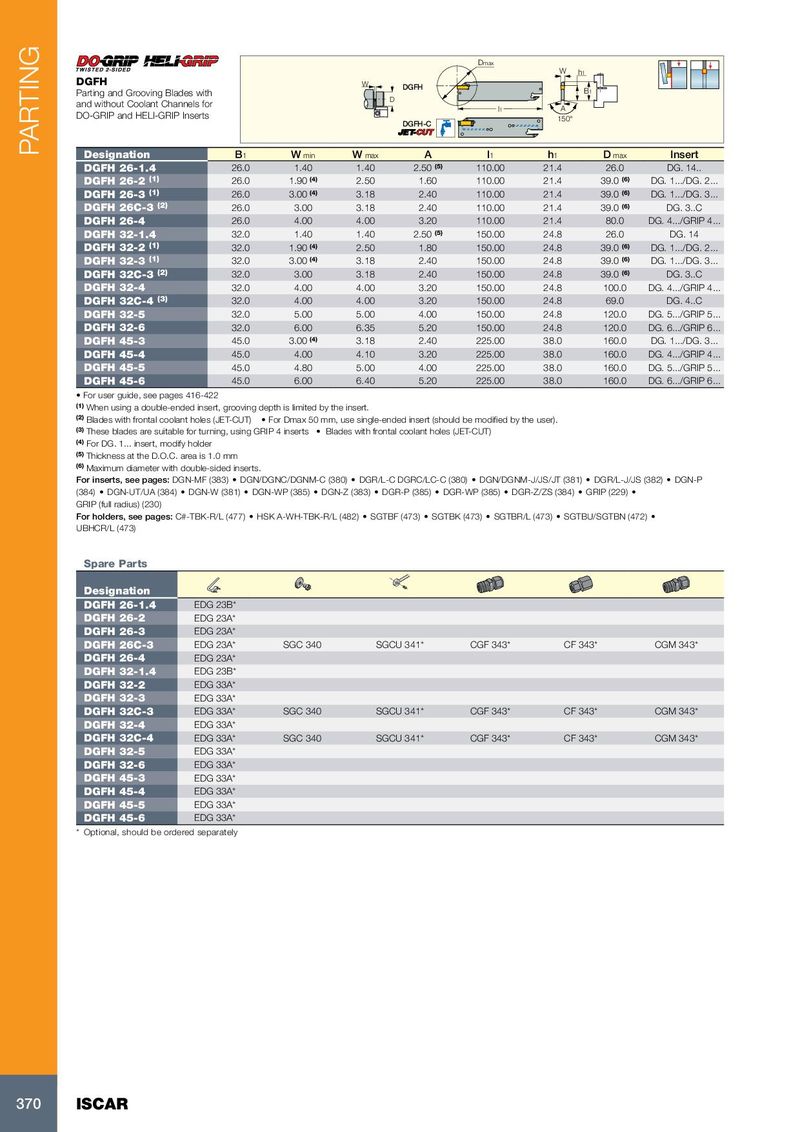

Каталог Iscar токарный инструмент 2017 - страница 374
Навигация
Каталог Iscar резьбонарезные фрезы
Каталог Iscar инструмент для обработки алюминиевых колёс
Каталог Iscar державки и пластины для нарезания резьбы 2022
Каталог Iscar расточные системы 2022
Каталог Iscar высокоточные развертки и метчики 2022
Токарные инструменты Iscar (часть 2) 2026
| DGFH Parting and Grooving Blades with and without Coolant Channels for DO-GRIP and HELI-GRIP Inserts | W D | DGFH DGFH-C | Dmax l1 | A 150° h1 W | B1 | |||
| Designation | B1 | Wmin | Wmax | A | l1 | h1 | Dmax | Insert |
| DGFH 26-1.4 | 26.0 | 1.40 | 1.40 | 2.50(5) | 110.00 | 21.4 | 26.0 | DG. 14.. |
| DGFH 26-2(1) | 26.0 | 1.90(4) | 2.50 | 1.60 | 110.00 | 21.4 | 39.0(6) | DG. 1.../DG. 2... |
| DGFH 26-3(1) | 26.0 | 3.00(4) | 3.18 | 2.40 | 110.00 | 21.4 | 39.0(6) | DG. 1.../DG. 3... |
| DGFH 26C-3(2) | 26.0 | 3.00 | 3.18 | 2.40 | 110.00 | 21.4 | 39.0(6) | DG. 3..C |
| DGFH 26-4 | 26.0 | 4.00 | 4.00 | 3.20 | 110.00 | 21.4 | 80.0 | DG. 4.../GRIP 4... |
| DGFH 32-1.4 | 32.0 | 1.40 | 1.40 | 2.50(5) | 150.00 | 24.8 | 26.0 | DG. 14 |
| DGFH 32-2(1) | 32.0 | 1.90(4) | 2.50 | 1.80 | 150.00 | 24.8 | 39.0(6) | DG. 1.../DG. 2... |
| DGFH 32-3(1) | 32.0 | 3.00(4) | 3.18 | 2.40 | 150.00 | 24.8 | 39.0(6) | DG. 1.../DG. 3... |
| DGFH 32C-3(2) | 32.0 | 3.00 | 3.18 | 2.40 | 150.00 | 24.8 | 39.0(6) | DG. 3..C |
| DGFH 32-4 | 32.0 | 4.00 | 4.00 | 3.20 | 150.00 | 24.8 | 100.0 | DG. 4.../GRIP 4... |
| DGFH 32C-4(3) | 32.0 | 4.00 | 4.00 | 3.20 | 150.00 | 24.8 | 69.0 | DG. 4..C |
| DGFH 32-5 | 32.0 | 5.00 | 5.00 | 4.00 | 150.00 | 24.8 | 120.0 | DG. 5.../GRIP 5... |
| DGFH 32-6 | 32.0 | 6.00 | 6.35 | 5.20 | 150.00 | 24.8 | 120.0 | DG. 6.../GRIP 6... |
| DGFH 45-3 | 45.0 | 3.00(4) | 3.18 | 2.40 | 225.00 | 38.0 | 160.0 | DG. 1.../DG. 3... |
| DGFH 45-4 | 45.0 | 4.00 | 4.10 | 3.20 | 225.00 | 38.0 | 160.0 | DG. 4.../GRIP 4... |
| DGFH 45-5 | 45.0 | 4.80 | 5.00 | 4.00 | 225.00 | 38.0 | 160.0 | DG. 5.../GRIP 5... |
| DGFH 45-6 | 45.0 | 6.00 | 6.40 | 5.20 | 225.00 | 38.0 | 160.0 | DG. 6.../GRIP 6... |
- For user guide, see pages 416-422
(1) When using a double-ended insert, grooving depth is limited by the insert. (2) Blades with frontal coolant holes (JET-CUT) For Dmax 50 mm, use single-ended insert (should be modified by the user). (3) These blades are suitable for turning, using GRIP 4 inserts Blades with frontal coolant holes (JET-CUT) (4) For DG. 1... insert, modify holder (5) Thickness at the D.O.C. area is 1.0 mm (6) Maximum diameter with double-sided inserts. For inserts, see pages: DGN-MF (383) DGN/DGNC/DGNM-C (380) DGR/L-C DGRC/LC-C (380) DGN/DGNM-J/JS/JT (381) DGR/L-J/JS (382) DGN-P (384) DGN-UT/UA (384) DGN-W (381) DGN-WP (385) DGN-Z (383) DGR-P (385) DGR-WP (385) DGR-Z/ZS (384) GRIP (229) GRIP (full radius) (230) For holders, see pages: C#-TBK-R/L (477) HSK A-WH-TBK-R/L (482) SGTBF (473) SGTBK (473) SGTBR/L (473) SGTBU/SGTBN (472) UBHCR/L (473)
Spare Parts
| Designation | ||||||
| DGFH 26-1.4 | EDG 23B | |||||
| DGFH 26-2 | EDG 23A | |||||
| DGFH 26-3 | EDG 23A | |||||
| DGFH 26C-3 | EDG 23A | SGC 340 | SGCU 341 | CGF 343 | CF 343 | CGM 343 |
| DGFH 26-4 | EDG 23A | |||||
| DGFH 32-1.4 | EDG 23B | |||||
| DGFH 32-2 | EDG 33A | |||||
| DGFH 32-3 | EDG 33A | |||||
| DGFH 32C-3 | EDG 33A | SGC 340 | SGCU 341 | CGF 343 | CF 343 | CGM 343 |
| DGFH 32-4 | EDG 33A | |||||
| DGFH 32C-4 | EDG 33A | SGC 340 | SGCU 341 | CGF 343 | CF 343 | CGM 343 |
| DGFH 32-5 | EDG 33A | |||||
| DGFH 32-6 | EDG 33A | |||||
| DGFH 45-3 | EDG 33A | |||||
| DGFH 45-4 | EDG 33A | |||||
| DGFH 45-5 | EDG 33A | |||||
| DGFH 45-6 | EDG 33A |
* Optional, should be ordered separately
