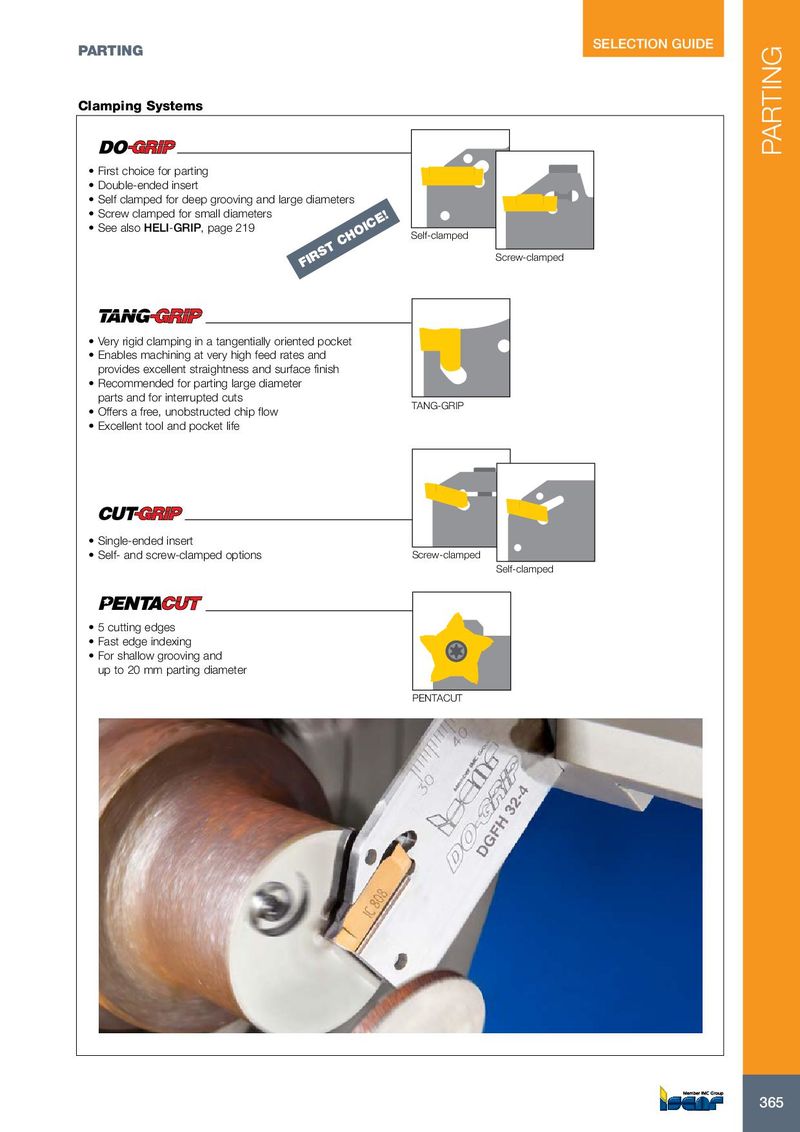

SELECTION GUIDE PARTING Clamping Systems PARTING • First choice for parting • Double-ended insert • Self clamped for deep grooving and large diameters • Screw clamped for small diameters • See also HELI-GRIP, page 219 Self-clamped Screw-clamped FIRST CHOICE! • Very rigid clamping in a tangentially oriented pocket • Enables machining at very high feed rates and provides excellent straightness and surface finish • Recommended for parting large diameter parts and for interrupted cuts TANG-GRIP • Offers a free, unobstructed chip flow • Excellent tool and pocket life • Single-ended insert • Self- and screw-clamped options Screw-clamped Self-clamped • 5 cutting edges • Fast edge indexing • For shallow grooving and up to 20 mm parting diameter PENTACUT 365 365
