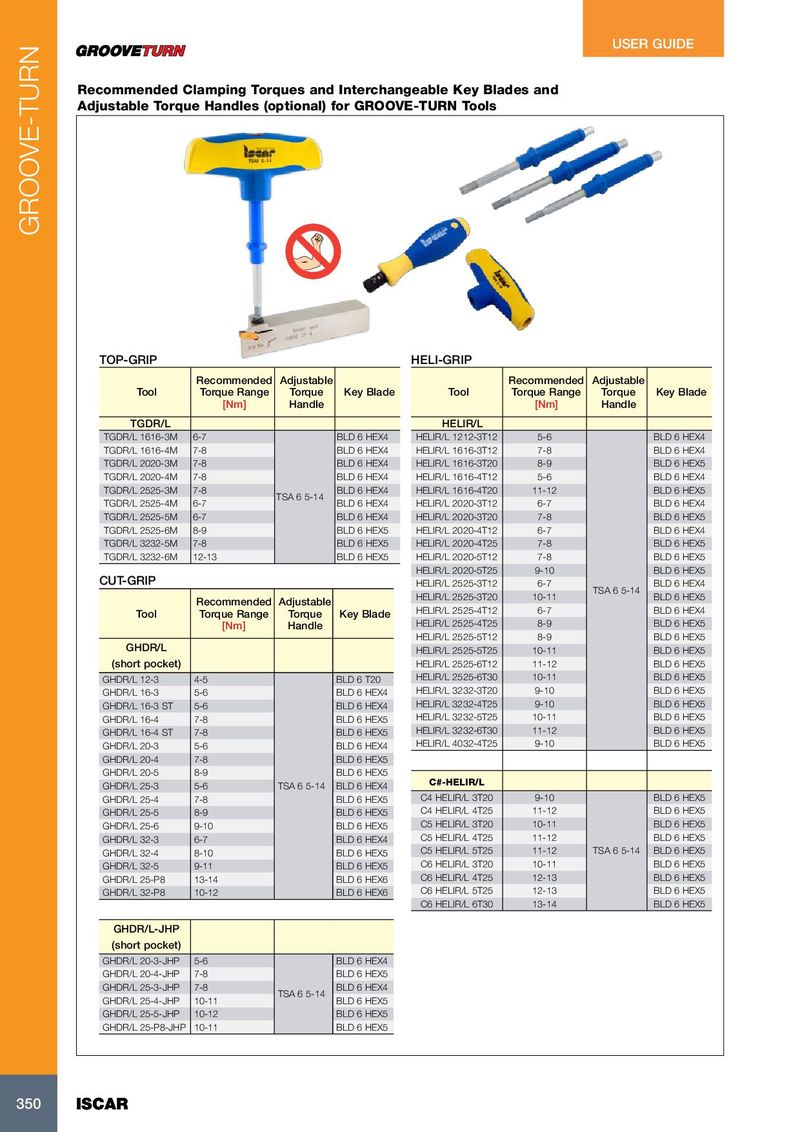

Recommended Clamping Torques and Interchangeable Key Blades and
Adjustable Torque Handles (optional) for GROOVE-TURN Tools
| TOP-GRIP | HELI-GRIP | ||||||
| Recommended | Adjustable | Recommended | Adjustable | ||||
| Tool | Torque Range [Nm] | Torque Handle | Key Blade | Tool | Torque Range [Nm] | Torque Handle | Key Blade |
| TGDR/L | HELIR/L | ||||||
| TGDR/L 1616-3M | 6-7 | BLD 6 HEX4 | HELIR/L 1212-3T12 | 5-6 | BLD 6 HEX4 | ||
| TGDR/L 1616-4M | 7-8 | BLD 6 HEX4 | HELIR/L 1616-3T12 | 7-8 | BLD 6 HEX4 | ||
| TGDR/L 2020-3M | 7-8 | BLD 6 HEX4 | HELIR/L 1616-3T20 | 8-9 | BLD 6 HEX5 | ||
| TGDR/L 2020-4M | 7-8 | BLD 6 HEX4 | HELIR/L 1616-4T12 | 5-6 | BLD 6 HEX4 | ||
| TGDR/L 2525-3M | 7-8 | BLD 6 HEX4 | HELIR/L 1616-4T20 | 11-12 | BLD 6 HEX5 | ||
| TGDR/L 2525-4M | 6-7 | TSA 6 5-14 | BLD 6 HEX4 | HELIR/L 2020-3T12 | 6-7 | BLD 6 HEX4 | |
| TGDR/L 2525-5M | 6-7 | BLD 6 HEX4 | HELIR/L 2020-3T20 | 7-8 | BLD 6 HEX5 | ||
| TGDR/L 2525-6M | 8-9 | BLD 6 HEX5 | HELIR/L 2020-4T12 | 6-7 | BLD 6 HEX4 | ||
| TGDR/L 3232-5M | 7-8 | BLD 6 HEX5 | HELIR/L 2020-4T25 | 7-8 | BLD 6 HEX5 | ||
| TGDR/L 3232-6M | 12-13 | BLD 6 HEX5 | HELIR/L 2020-5T12 | 7-8 | BLD 6 HEX5 | ||
| HELIR/L 2020-5T25 | 9-10 | BLD 6 HEX5 | |||||
| CUT-GRIP | HELIR/L 2525-3T12 | 6-7 | TSA 6 514 | BLD 6 HEX4 | |||
| Recommended | Adjustable | HELIR/L 2525-3T20 | 10-11 | - | BLD 6 HEX5 | ||
| Tool | Torque Range | Torque | Key Blade | HELIR/L 2525-4T12 | 6-7 | BLD 6 HEX4 | |
| [Nm] | Handle | HELIR/L 2525-4T25 | 8-9 | BLD 6 HEX5 | |||
| HELIR/L 2525-5T12 | 8-9 | BLD 6 HEX5 | |||||
| GHDR/L | HELIR/L 2525-5T25 | 10-11 | BLD 6 HEX5 | ||||
| (short pocket) | HELIR/L 2525-6T12 | 11-12 | BLD 6 HEX5 | ||||
| GHDR/L 12-3 | 4-5 | BLD 6 T20 | HELIR/L 2525-6T30 | 10-11 | BLD 6 HEX5 | ||
| GHDR/L 16-3 | 5-6 | BLD 6 HEX4 | HELIR/L 3232-3T20 | 9-10 | BLD 6 HEX5 | ||
| GHDR/L 16-3 ST | 5-6 | BLD 6 HEX4 | HELIR/L 3232-4T25 | 9-10 | BLD 6 HEX5 | ||
| GHDR/L 16-4 | 7-8 | BLD 6 HEX5 | HELIR/L 3232-5T25 | 10-11 | BLD 6 HEX5 | ||
| GHDR/L 16-4 ST | 7-8 | BLD 6 HEX5 | HELIR/L 3232-6T30 | 11-12 | BLD 6 HEX5 | ||
| GHDR/L 20-3 | 5-6 | BLD 6 HEX4 | HELIR/L 4032-4T25 | 9-10 | BLD 6 HEX5 | ||
| GHDR/L 20-4 | 7-8 | BLD 6 HEX5 | |||||
| GHDR/L 20-5 | 8-9 | BLD 6 HEX5 | |||||
| GHDR/L 25-3 | 5-6 | TSA 6 5-14 | BLD 6 HEX4 | C#-HELIR/L | |||
| GHDR/L 25-4 | 7-8 | BLD 6 HEX5 | C4 HELIR/L 3T20 | 9-10 | BLD 6 HEX5 | ||
| GHDR/L 25-5 | 8-9 | BLD 6 HEX5 | C4 HELIR/L 4T25 | 11-12 | BLD 6 HEX5 | ||
| GHDR/L 25-6 | 9-10 | BLD 6 HEX5 | C5 HELIR/L 3T20 | 10-11 | BLD 6 HEX5 | ||
| GHDR/L 32-3 | 6-7 | BLD 6 HEX4 | C5 HELIR/L 4T25 | 11-12 | BLD 6 HEX5 | ||
| GHDR/L 32-4 | 8-10 | BLD 6 HEX5 | C5 HELIR/L 5T25 | 11-12 | TSA 6 5-14 | BLD 6 HEX5 | |
| GHDR/L 32-5 | 9-11 | BLD 6 HEX5 | C6 HELIR/L 3T20 | 10-11 | BLD 6 HEX5 | ||
| GHDR/L 25-P8 | 13-14 | BLD 6 HEX6 | C6 HELIR/L 4T25 | 12-13 | BLD 6 HEX5 | ||
| GHDR/L 32-P8 | 10-12 | BLD 6 HEX6 | C6 HELIR/L 5T25 | 12-13 | BLD 6 HEX5 | ||
| C6 HELIR/L 6T30 | 13-14 | BLD 6 HEX5 | |||||
| GHDR/L-JHP (short pocket) | |||||||
| GHDR/L 20-3-JHP | 5-6 | BLD 6 HEX4 | |||||
| GHDR/L 20-4-JHP | 7-8 | BLD 6 HEX5 | |||||
| GHDR/L 25-3-JHP | 7-8 | BLD 6 HEX4 | |||||
| GHDR/L 25-4-JHP | 10-11 | TSA 6 5-14 | BLD 6 HEX5 | ||||
| GHDR/L 25-5-JHP | 10-12 | BLD 6 HEX5 | |||||
| GHDR/L 25-P8-JHP | 10-11 | BLD 6 HEX5 |
