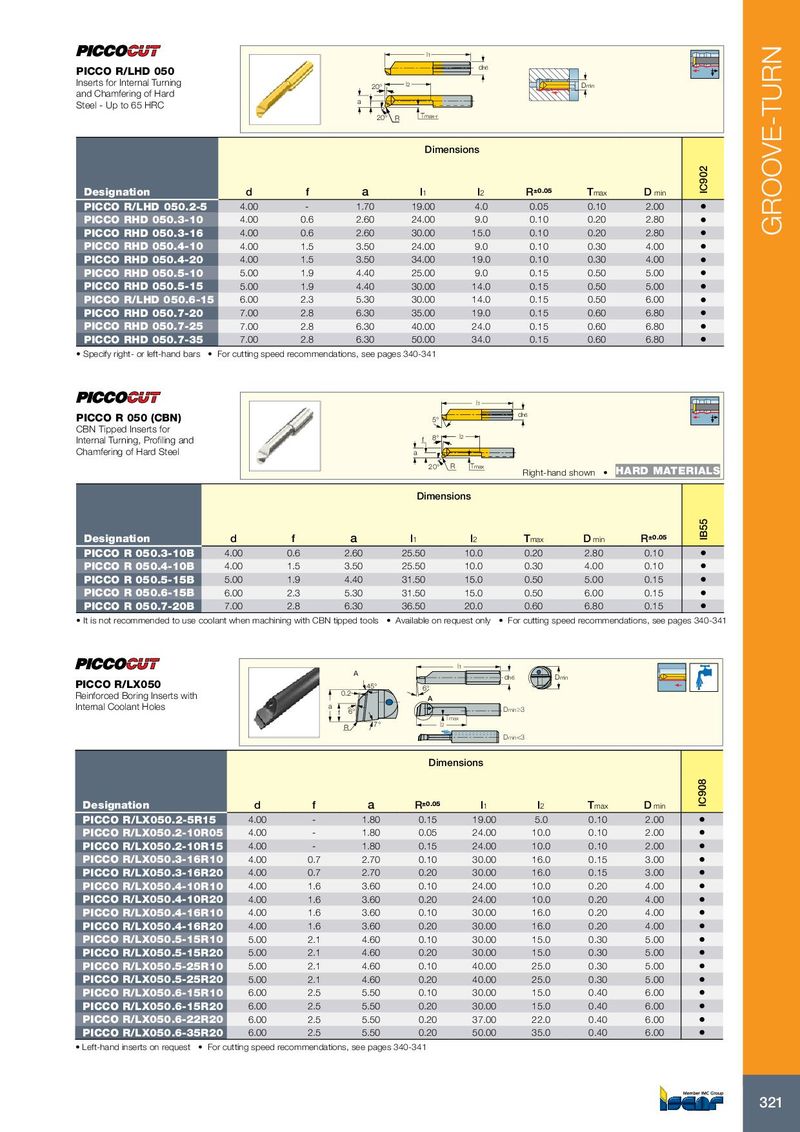

l1 dh6 PICCO R/LHD 050 Inserts for Internal Turning 20° l2 Dmin and Chamfering of Hard a Steel - Up to 65 HRC f 20° R Tmax-r Dimensions Designation d f a l 1 l 2 R ±0.05 T max D min IC902 PICCO R/LHD 050.2-5 4.00 - 1.70 19.00 4.0 0.05 0.10 2.00 • PICCO RHD 050.3-10 4.00 0.6 2.60 24.00 9.0 0.10 0.20 2.80 • PICCO RHD 050.3-16 4.00 0.6 2.60 30.00 15.0 0.10 0.20 2.80 • GROOVE-TURN PICCO RHD 050.4-10 4.00 1.5 3.50 24.00 9.0 0.10 0.30 4.00 • PICCO RHD 050.4-20 4.00 1.5 3.50 34.00 19.0 0.10 0.30 4.00 • PICCO RHD 050.5-10 5.00 1.9 4.40 25.00 9.0 0.15 0.50 5.00 • PICCO RHD 050.5-15 5.00 1.9 4.40 30.00 14.0 0.15 0.50 5.00 • PICCO R/LHD 050.6-15 6.00 2.3 5.30 30.00 14.0 0.15 0.50 6.00 • PICCO RHD 050.7-20 7.00 2.8 6.30 35.00 19.0 0.15 0.60 6.80 • PICCO RHD 050.7-25 7.00 2.8 6.30 40.00 24.0 0.15 0.60 6.80 • PICCO RHD 050.7-35 7.00 2.8 6.30 50.00 34.0 0.15 0.60 6.80 • • Specify right- or left-hand bars • For cutting speed recommendations, see pages 340-341 l1 dh6 PICCO R 050 (CBN) 5° CBN Tipped Inserts for Internal Turning, Profiling and f 8° l 2 Chamfering of Hard Steel a 20° R Tmax Right-hand shown • HARD MATERIALS Dimensions Designation d f a l 1 l 2 T max D min R ±0.05 IB55 PICCO R 050.3-10B 4.00 0.6 2.60 25.50 10.0 0.20 2.80 0.10 • PICCO R 050.4-10B 4.00 1.5 3.50 25.50 10.0 0.30 4.00 0.10 • PICCO R 050.5-15B 5.00 1.9 4.40 31.50 15.0 0.50 5.00 0.15 • PICCO R 050.6-15B 6.00 2.3 5.30 31.50 15.0 0.50 6.00 0.15 • PICCO R 050.7-20B 7.00 2.8 6.30 36.50 20.0 0.60 6.80 0.15 • • It is not recommended to use coolant when machining with CBN tipped tools • Available on request only • For cutting speed recommendations, see pages 340-341 l1 A dh6 Dmin PICCO R/LX050 45° 6° Reinforced Boring Inserts with 0.2 A Internal Coolant Holes a f 6° Dmin≥3 Tmax R 7° l2 Dmin<3 Dimensions Designation d f a R ±0.05 l 1 l 2 T max D min IC908 PICCO R/LX050.2-5R15 4.00 - 1.80 0.15 19.00 5.0 0.10 2.00 • PICCO R/LX050.2-10R05 4.00 - 1.80 0.05 24.00 10.0 0.10 2.00 • PICCO R/LX050.2-10R15 4.00 - 1.80 0.15 24.00 10.0 0.10 2.00 • PICCO R/LX050.3-16R10 4.00 0.7 2.70 0.10 30.00 16.0 0.15 3.00 • PICCO R/LX050.3-16R20 4.00 0.7 2.70 0.20 30.00 16.0 0.15 3.00 • PICCO R/LX050.4-10R10 4.00 1.6 3.60 0.10 24.00 10.0 0.20 4.00 • PICCO R/LX050.4-10R20 4.00 1.6 3.60 0.20 24.00 10.0 0.20 4.00 • PICCO R/LX050.4-16R10 4.00 1.6 3.60 0.10 30.00 16.0 0.20 4.00 • PICCO R/LX050.4-16R20 4.00 1.6 3.60 0.20 30.00 16.0 0.20 4.00 • PICCO R/LX050.5-15R10 5.00 2.1 4.60 0.10 30.00 15.0 0.30 5.00 • PICCO R/LX050.5-15R20 5.00 2.1 4.60 0.20 30.00 15.0 0.30 5.00 • PICCO R/LX050.5-25R10 5.00 2.1 4.60 0.10 40.00 25.0 0.30 5.00 • PICCO R/LX050.5-25R20 5.00 2.1 4.60 0.20 40.00 25.0 0.30 5.00 • PICCO R/LX050.6-15R10 6.00 2.5 5.50 0.10 30.00 15.0 0.40 6.00 • PICCO R/LX050.6-15R20 6.00 2.5 5.50 0.20 30.00 15.0 0.40 6.00 • PICCO R/LX050.6-22R20 6.00 2.5 5.50 0.20 37.00 22.0 0.40 6.00 • PICCO R/LX050.6-35R20 6.00 2.5 5.50 0.20 50.00 35.0 0.40 6.00 • • Left-hand inserts on request • For cutting speed recommendations, see pages 340-341 321
